71180 (12-38 XL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Model 283707-0156-01 3 Parts Diagram

Lawn Tractor

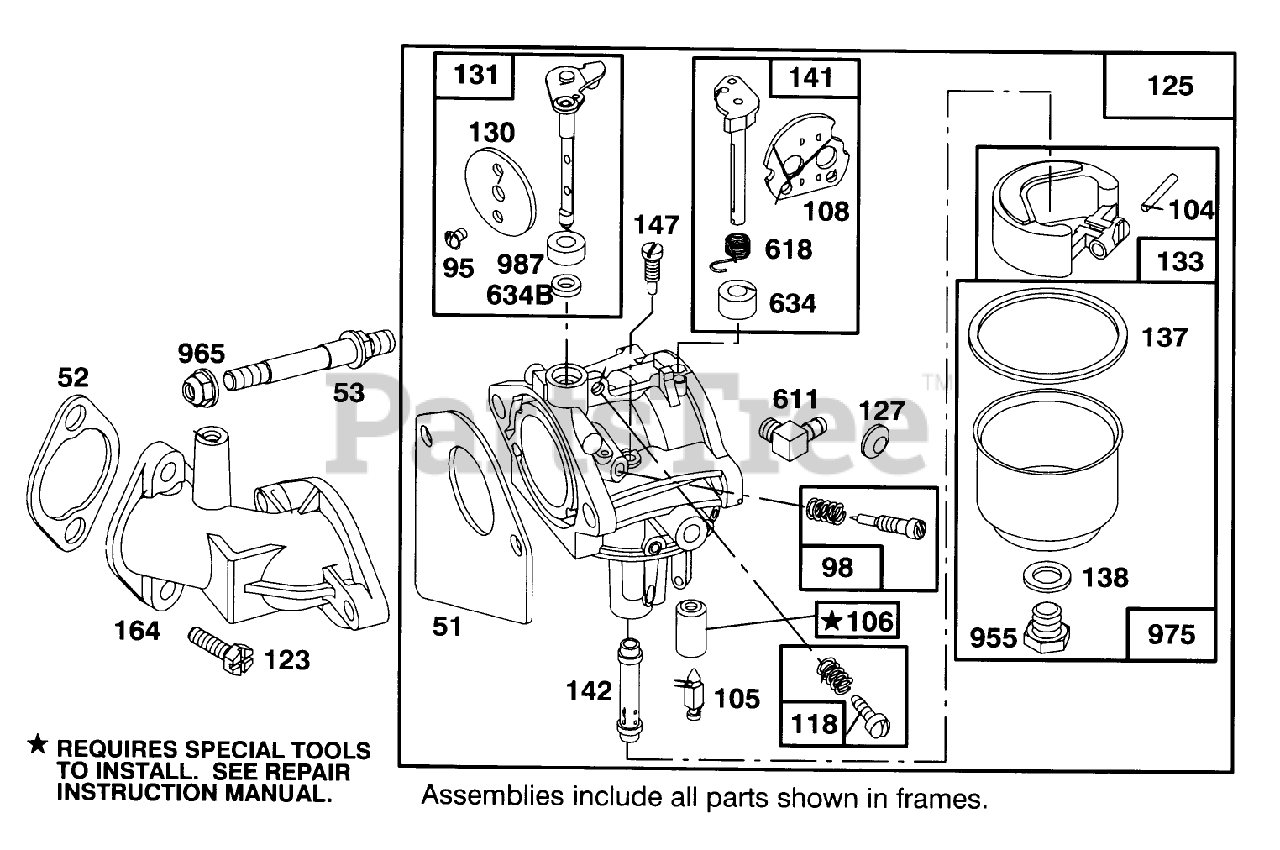

Engine Briggs Stratton Model 283707-0156-01 3 Parts Diagram

  • Title

5

Toro 1272465

Gasket-Carburetor (Carb to Elbow)

Note: Included in Carburetor Gasket Set-Part No.494385.

$

$

Currently unavailable

52

Toro 272554

Gasket-Intake

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

53

Toro 94637

Stud-Mounting, Carbureator

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

98

Toro 495800

Idle Speed Kit

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

108

Toro 224540

Valve-Choke

$

$

Currently unavailable

118

Toro 494383

Valve-Needle

$

$

Currently unavailable

121

Toro 495799

Carburetor Kit

$

$

Currently unavailable

123

Toro 94616

Screw-Elbow Mtg

$

$

Currently unavailable

125

Toro 495706

Carburetor Assembly

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Not available

130

Toro 224539

Valve-ThroWe

$

$

Currently unavailable

131

Toro 494379

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No.494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No.494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

141

Toro 494380

Shaft Lever-Choke

$

$

Currently unavailable

142

Toro 494537

Noale-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

147

Toro 231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

164

Toro 213819

Manifold-Intake

$

$

Currently unavailable

611

Toro 494451

Fuel Inlet Tube

$

$

Currently unavailable

618

Toro 262803

Spring-Choke

$

$

Currently unavailable

634

Toro 281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

634B

Toro 281167

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable

955

Toro 94642

Plug

$

$

Currently unavailable

965

Toro 94108

Locknut

$

$

Currently unavailable

975

Toro 494378

Bowl-Float

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Overhaul Kit-Part No. 495799.

$

$

Currently unavailable
