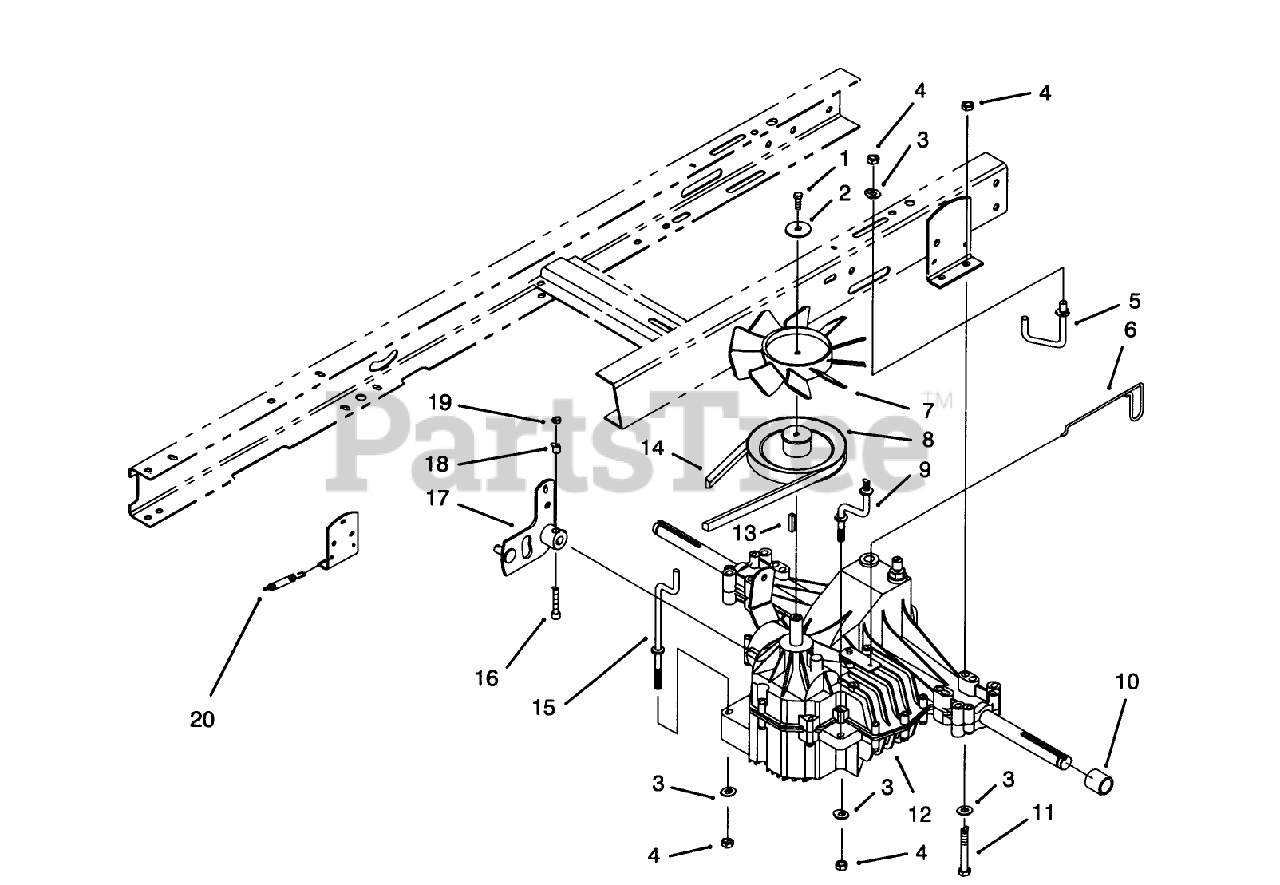

71181 (12-38 HXL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) Transaxle Assembly Parts Diagram

Lawn Tractor

Transaxle Assembly Parts Diagram

  • Title

1

Toro 48-7620

See Supercession: 33113-016
(Superseded to 33113-016)

$0.99

$

Usually ships in 3-6 days

0

2

Toro 3256-58

See Supercession: 3256-55
(Superseded to 3256-55)

$5.49

$

In Stock, only 2 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 88-5960

DISCONTINUED

$

$

Not available

6

Toro 88-6080

ROD, DUMP VALVE

$

$

Not available

7

Toro 115271

FAN-7"

$40.99

$

In Stock, Qty 5

0

8

Toro 88-6180

HYDRO TRANS PULLEY

$

$

Not available

9

Toro 88-5620

TORQUE STRAP

$54.99

$

Usually ships in 3-6 days

0

10

Toro 88-5360

SPACER

$10.99

$

In Stock, only 3 left!

0

11

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

12

Toro 88-6430

TRANSAXLE ASM - HYDRO

$4726.99

$

Usually ships in 3-6 days

0

13

Toro 88-6470

KEY - 5MM SQUARE

$

$

Not available

14

Toro 88-6280

V-BELT

$44.99

$

In Stock, only 1 left!

0

15

Toro 88-5950

RH TRANS BELT GUIDE

$

$

Not available

16

Toro 3274-59

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 88-4760

SPEED CNTRL LEVER WA

$

$

Not available

18

Toro 86-4270

LOCK SPACER

$

$

Not available

19

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 5

0

20

Toro 26-6701

SPRING-RETURN, BRAKE

$28.99

$

Usually ships in 3-6 days

0
