71182 (12-32 XL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) DECK & SPINDLE ASSEMBLY (32" CUTTING UNIT) Parts Diagram

Lawn Tractor

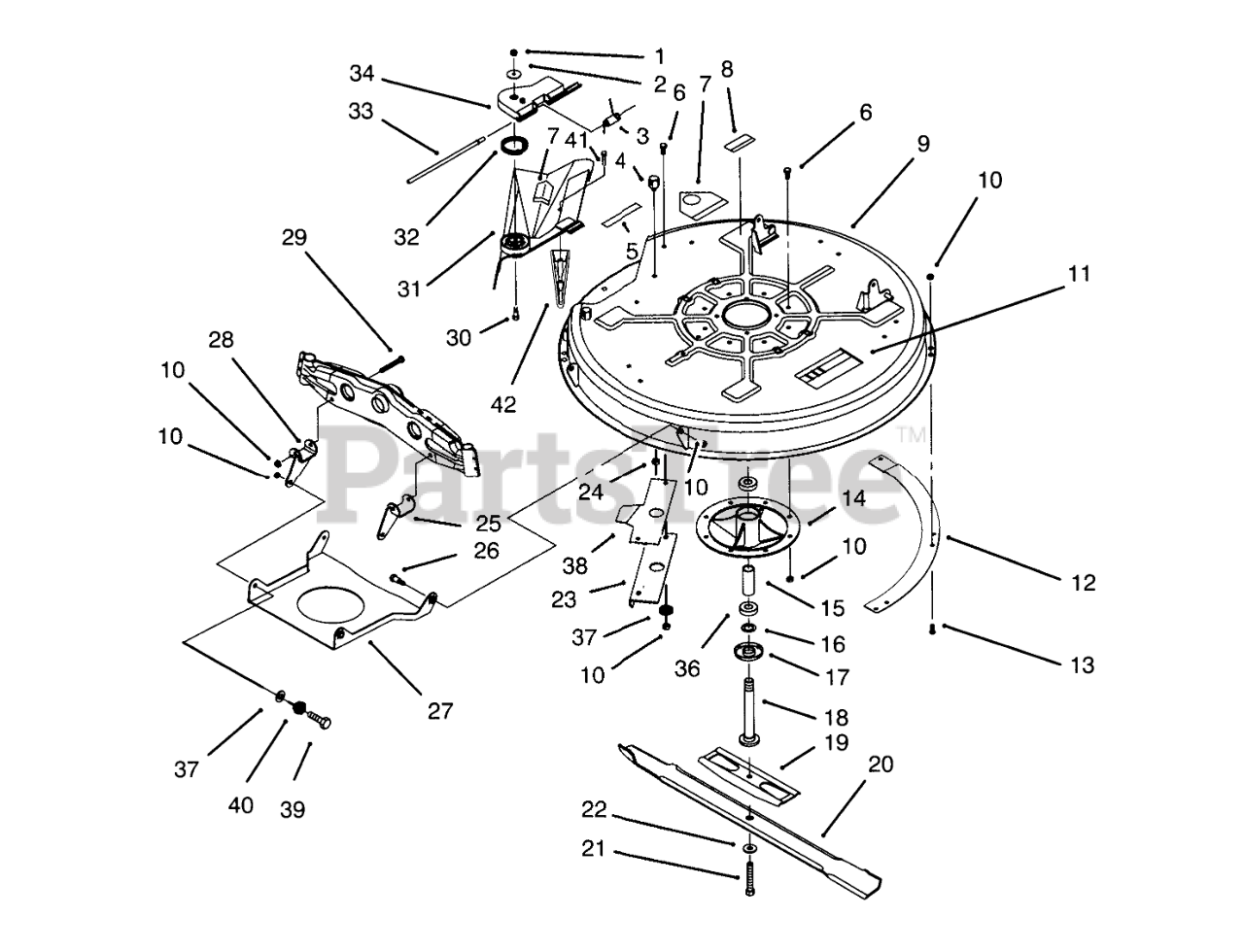

DECK & SPINDLE ASSEMBLY (32" CUTTING UNIT) Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 2 left!

0

3

Toro 92-2493

SPRING-TORSION

$11.99

$

In Stock, only 4 left!

0

4

Toro 28-7350

POST-PIVOT

$33.99

$

Usually ships in 3-6 days

0

5

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

Toro 93-7009

DECAL-DANGER

Note: Not illustrated

$6.49

$

In Stock, Qty 8

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

Toro 93-7010

DECAL-DANGER

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0

8

Toro 55-4300

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

Toro 93-6674

DECAL-WARNING

Note: Not illustrated

$6.49

$

Usually ships in 3-6 days

0

9

Toro 88-5790-01

Cutter Deck-32"
(Superseded to 95-7482)

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

12

Toro 92-9664

Ring-Wet Grass (Model No. 71200 Only)
(Superseded to 92-9664-03)

$

$

Not available

13

Toro 32122-14

SCREW-PPH

$2.49

$

In Stock, Qty 16

0

14

Toro 56-7030

SPINDLE

$

$

Not available

15

Toro 83-7020

SPACER-BEARING

$28.99

$

In Stock, only 3 left!

0

16

Toro 80-4390

SPACER-HARDNED

$3.99

$

Usually ships in 3-6 days

0

17

Toro 80-4370

SHIELD-BEARING

$14.99

$

In Stock, only 2 left!

0

18

Toro 80-4350

SHAFT-SPINDLE

$74.99

$

In Stock, Qty 5

0

19

Toro 80-4570

STIFFENER
(Superseded to 80-4570-03)

$27.99

$

In Stock, Qty 5

0

20

Toro 33-4750

Blade
(Superseded to 33-4750-03)

$37.99

$

In Stock, Qty 6

0

21

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

22

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

23

Toro 44-5720

Baffle Deck
(Superseded to 44-5720-03)

$47.99

$

Usually ships in 3-6 days

0

24

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

25

Toro 88-5650

Bracket-L.H.
(Superseded to 88-5650-03)

$29.99

$

Usually ships in 3-6 days

0

26

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 9

0

27

Toro 88-4940

Pan-Front Deck Susp.
(Superseded to 88-4940-03)

$

$

Not available

28

Toro 88-5640

Bracket-R.H.
(Superseded to 88-5640-03)

$29.99

$

Usually ships in 3-6 days

0

29

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

30

Toro 92-8916

BOLT-SHOULDER

$15.99

$

In Stock, only 3 left!

0

31

Toro 93-0318

Deflector Assembly(Incl. Ref. #7)

$90.99

$

In Stock, only 1 left!

0

Toro 93-7694

Deflector Ass-y (Incl. Ref. #7)(Model No. 71200 Only)

Note: Not illustrated

$117.99

$

Usually ships in 3-6 days

0

32

Toro 88-6160

SPRING-TORSION

$34.99

$

In Stock, only 4 left!

0

33

Toro 88-6150

ROD-HINGE, DEFLECTOR

$

$

Not available

34

Toro 88-4540

PIVOT-HINGE, DEFLECTOR

$21.99

$

In Stock, Qty 5

0

36

Toro 251-297

BEARING-BALL

$19.99

$

In Stock, Qty 8

0

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

38

Toro 92-2494

Ramp-Deflector
(Superseded to 92-2494-03)

$24.99

$

Usually ships in 3-6 days

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 106661

CAM

$

$

Not available

41

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

42

Toro 93-7696

KICKER

$14.99

$

In Stock, Qty 5

0
