71184 (12-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

Lawn Tractor

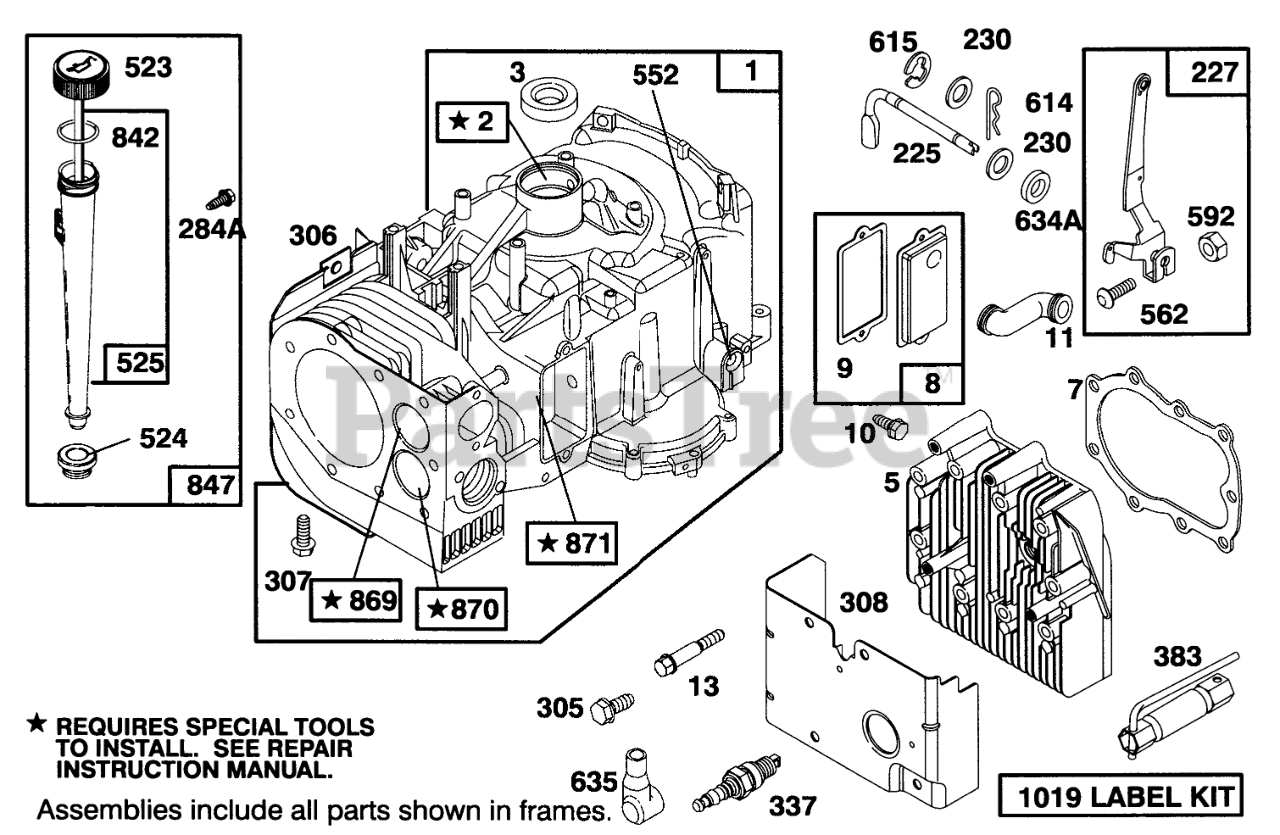

ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

  • Title

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Part No. 494241.

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Part No. 494241.

$6.99

$

In Stock, Qty 9

0

Briggs & Stratton 94196

Key-Timing
(Superseded to 691639)

$4.99

$

In Stock, only 1 left!

0

Briggs & Stratton 394662

Piston Assy-.010" O.S.

$

$

Not available

Briggs & Stratton 394663

Piston Assy-.020" O.S.
(Superseded to 499292)

$

$

Not available

Briggs & Stratton 394664

Piston Assy-.030" O.S.
(Superseded to 499296)

$

$

Not available

Briggs & Stratton 391781

Ring Set (.010 O.S.)

$

$

Not available

Briggs & Stratton 391782

Ring Set (.020 O.S.)
(Superseded to 499998)

$73.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391783

Ring Set (.030" O.S.)

$

$

Not available

Briggs & Stratton 391286

Pin-Piston (.005" OS.)

$

$

Not available

Briggs & Stratton 490469

Rod-Connecting (.020" U.S.)
(Superseded to 495490)

$

$

Not available

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$45.99

$

In Stock, only 2 left!

0
