71188 (12-32 XL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

Lawn Tractor

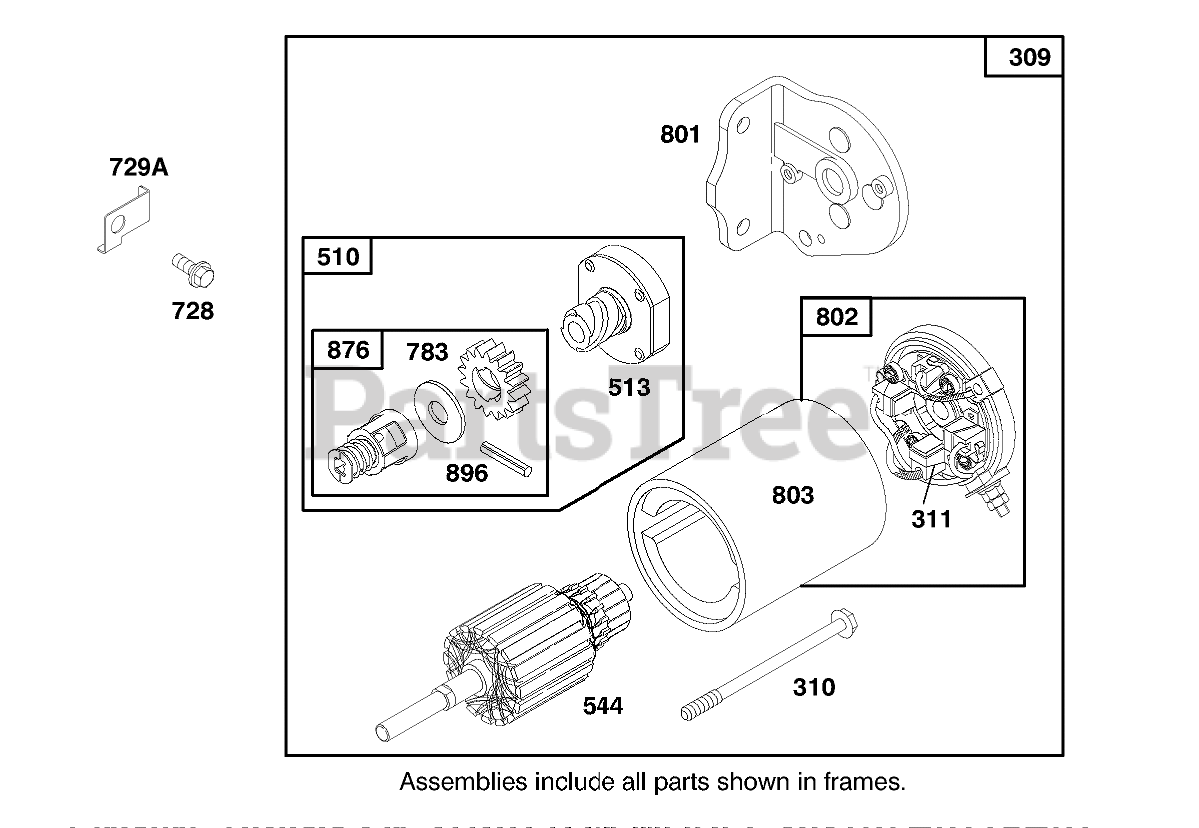

ENGINE BRIGGS & STRATTON MODEL 282707-0119-01 Parts Diagram

  • Title

309

Briggs & Stratton 394805

Motor-Starter
(Superseded to 497595)

$115.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94003

Bolt
(Superseded to 690323)

$4.49

$

In Stock, only 2 left!

0

311

Briggs & Stratton 395538

Brush Set

$

$

Not available

510

Briggs & Stratton 495878

Drive-Starter
(Superseded to 696540)

$31.99

$

In Stock, Qty 6

0

513

Briggs & Stratton 398003

Clutch ASM
(Superseded to 692024)

$23.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 390837

Armature-Starter

$159.99

$

In Stock, only 1 left!

0

728

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$6.49

$

In Stock, Qty 9

0

729A

Briggs & Stratton 224723

Retainer-Wire

$5.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

$6.49

$

In Stock, Qty 14

0

801

Briggs & Stratton 394856

Cap-Drive
(Superseded to 691283)

$92.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 395537

Cap-End

$59.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 398159

Housing-Starter

$84.99

$

Usually ships in 2-12 days

0

876

Briggs & Stratton 495877

Kit-Gear
(Superseded to 696540)

$31.99

$

In Stock, Qty 6

0

896

Briggs & Stratton 94288

Gear
(Superseded to 691641)

$5.49

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$45.99

$

In Stock, only 2 left!

0
