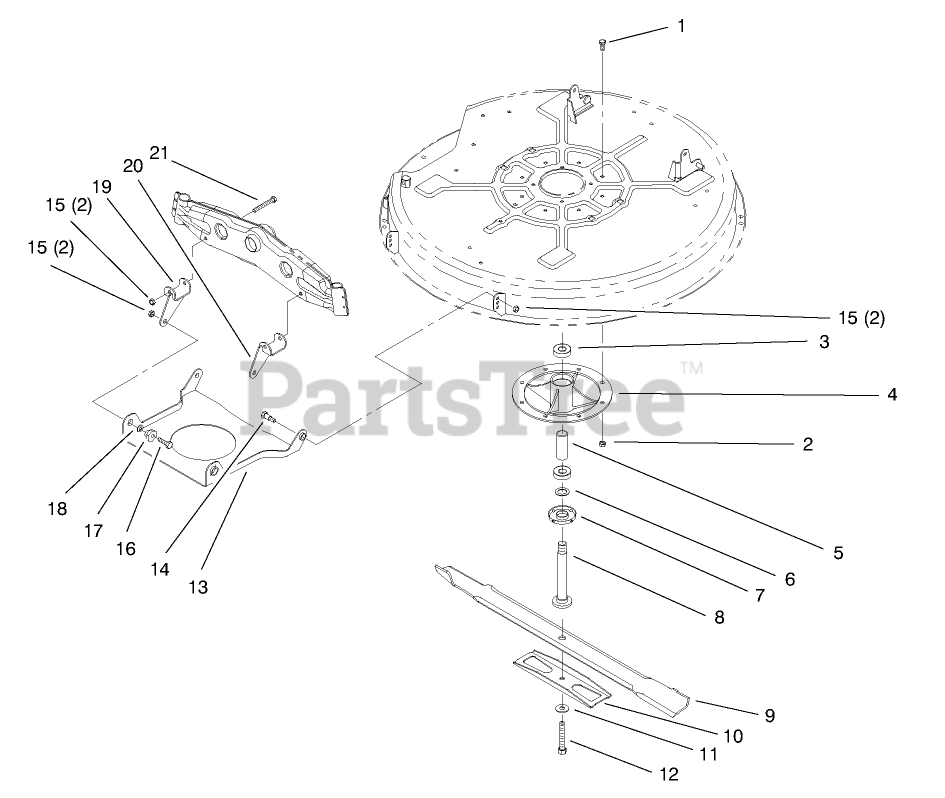

71189 (12-32 XL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) Spindle Blade Assembly Parts Diagram

Lawn Tractor

Spindle Blade Assembly Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 251-297

BEARING-BALL

$21.99

$

In Stock, only 4 left!

0

4

Toro 56-7030

SPINDLE

$

$

Not available

5

Toro 83-7020

SPACER-BEARING

$29.99

$

In Stock, only 3 left!

0

6

Toro 80-4390

SPACER-HARDNED

$4.99

$

Usually ships in 3-6 days

0

7

Toro 80-4370

SHIELD-BEARING

$19.99

$

In Stock, only 1 left!

0

8

Toro 80-4350

SHAFT-SPINDLE

$94.99

$

In Stock, only 4 left!

0

9

Toro 33-4750

See Supercession: 33-4750-03
(Superseded to 33-4750-03)

$61.99

$

In Stock, only 2 left!

0

10

Toro 80-4570-03

STIFFENER

$30.99

$

In Stock, only 1 left!

0

11

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

13

Toro 88-4940-03

SUSPENSION-PAN, FRONT

$

$

Not available

14

Toro 28-0540

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

17

Toro 106661

CAM

$

$

Not available

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

19

Toro 88-5640-03

BRACKET-RH

$

$

Not available

20

Toro 88-5650-03

BRACKET-LH

$

$

Not available

21

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0
