71192 (15-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

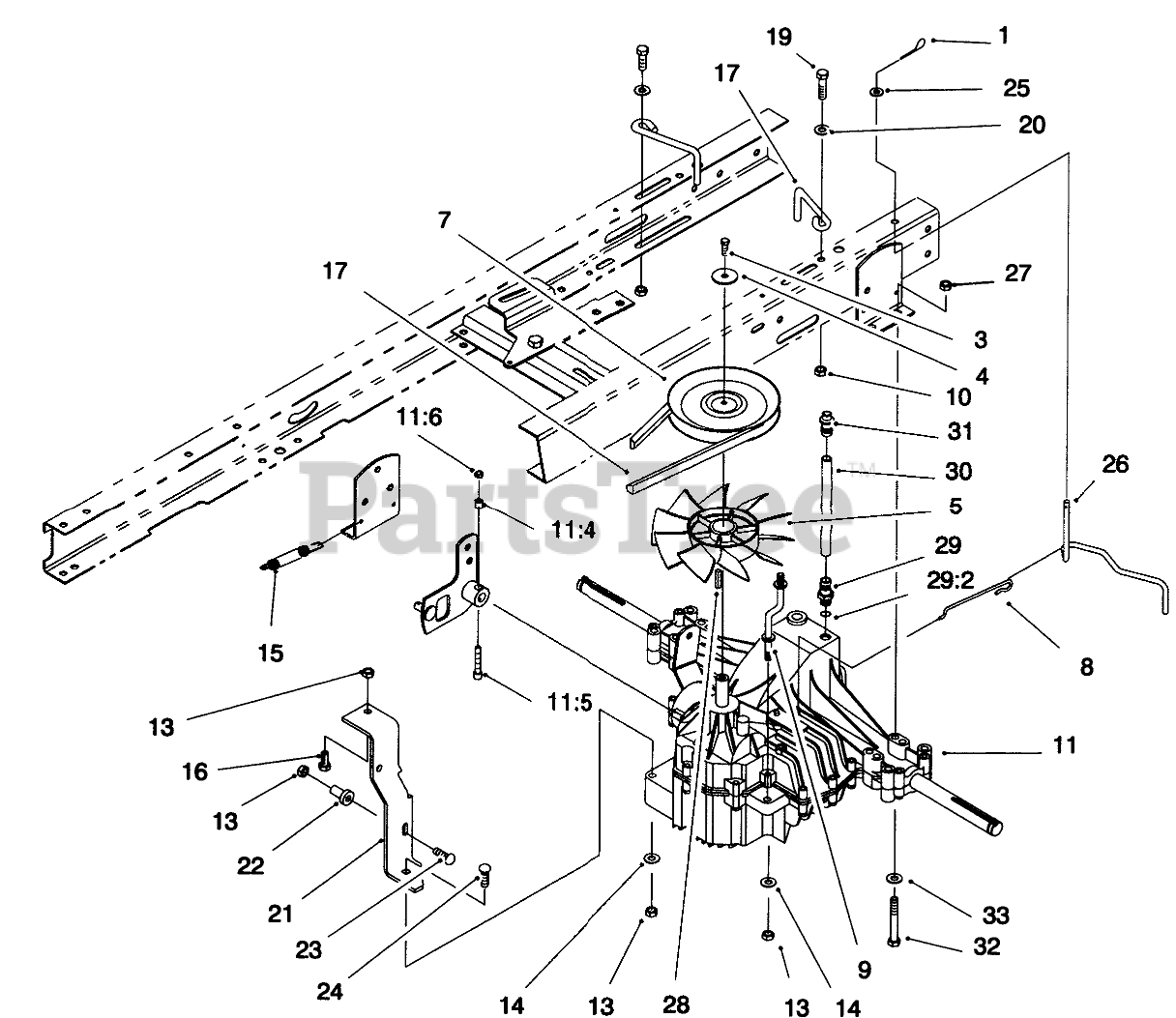

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

3

Toro 48-7620

SCREW-HH
(Superseded to 33113-016)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 8

0

5

Toro 93-3867

FAN - 10 BLADE 7" DIA.

$82.99

$

Usually ships in 3-6 days

0

7

Toro 93-3862

PULLEY, TRANSMISSION

$160.99

$

In Stock, only 1 left!

0

8

Toro 92-8856

WIRE - BYPASS

$

$

Not available

9

Toro 93-3872

STRAP - TORQUE

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 93-3878

Transaxle Ass-y-Hydro
(Superseded to 94-6946)

$4772.99

$

Usually ships in 3-6 days

0

11:4

Toro 86-4270

LOCK SPACER

$

$

Not available

11:6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

11:5

Toro 3274-59

SCREW-HSH

$1.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 26-6701

SPRING-RETURN, BRAKE

$27.99

$

Usually ships in 3-6 days

0

17

Toro 93-3868

GUIDE-BELT, TRANSMISSION

$

$

Not available

18

Toro 93-3883

V-BELT, HYDRO

$52.99

$

Usually ships in 3-6 days

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

21

Toro 93-3863

Bracket-Speed Control
(Superseded to 93-3863-03)

$

$

Not available

22

Toro 65-5080

BUSHING-FLANGE

$12.99

$

Usually ships in 3-6 days

0

23

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 20+

0

24

Toro 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 92-8857

LEVER - BYPASS

$

$

Not available

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 80-6090

KEY-PUMP

$10.99

$

In Stock, only 2 left!

0

29

Toro 93-3818

FITTING ASM

$16.99

$

Usually ships in 3-6 days

0

29:2

Toro 93-3816

O-RING

$

$

Currently unavailable

30

Toro 93-3871

HOSE, BREATHER

$

$

Not available

31

Toro 93-3817

FITTING-VENT

$23.99

$

Usually ships in 3-6 days

0

32

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
