71193 (14-38 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) Engine Briggs Stratton Model 28n707-0131-01 4 Parts Diagram

Lawn Tractor

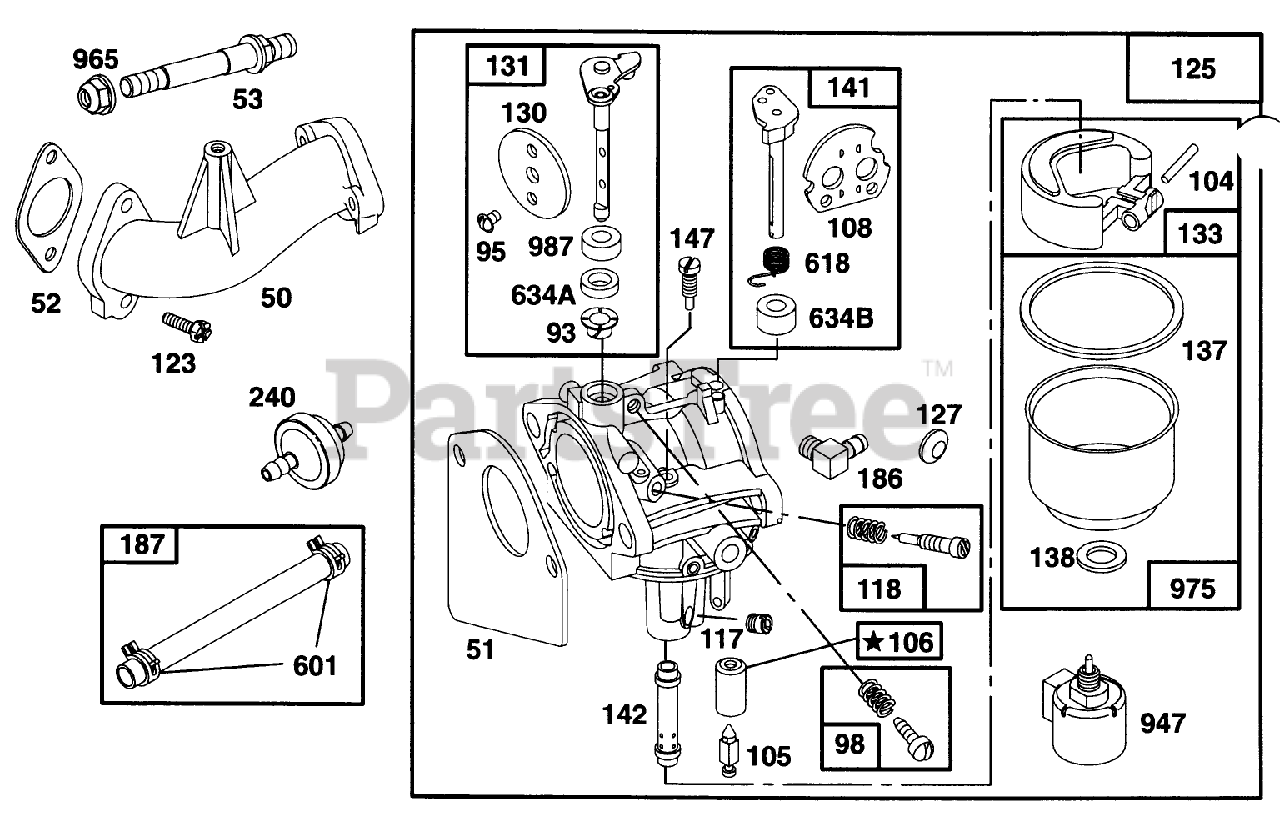

Engine Briggs Stratton Model 28n707-0131-01 4 Parts Diagram

  • Title

50

Toro 214047

Manifold-Intake

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

52

Toro 272569

Gasket-Intake

Note: Included in Valve Overhaul Kit-Part No 495992

$

$

Currently unavailable

52

Toro 272569

Gasket-Intake

Note: Included in Gasket Set-Part No 495993.

$

$

Currently unavailable

53

Toro 94637

Stud-Mounting, Carbureator

$

$

Currently unavailable

93

Toro 281346

Bushing-Throttle

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

98

Toro 495800

Idle Speed Kit

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.

$

$

Currently unavailable

108

Toro 224540

Valve-Choke

$

$

Currently unavailable

117

Toro 231858

Jet-Main

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

117A

Toro 231850

Jet-Main (High Altitude)

$

$

Currently unavailable

118

Toro 495932

Valve-Needle

$

$

Currently unavailable

123

Toro 94616

Screw-Elbow Mtg

$

$

Currently unavailable

125

Toro 497061

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No 499116

$

$

Not available

130

Toro 224539

Valve-ThroWe

$

$

Currently unavailable

131

Toro 494379

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

141

Toro 495931

Choke Shaft Kit

$

$

Currently unavailable

142

Toro 231990

Nozzle Carburetor

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

147

Toro 231985

Jet-Pilot

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

186

Toro 493496

Connector-Fuel

$

$

Currently unavailable

187

Toro 393815

Line-Vacuum

$

$

Currently unavailable

240

Toro 394358

Filter-Fuel

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

618

Toro 262803

Spring-Choke

$

$

Currently unavailable

634A

Toro 398970

Seal-Throttle

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

634B

Toro 281168

Seal-Choke Shaft

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable

947

Toro 497157

Solenoid

$

$

Currently unavailable

965

Toro 94010

Nut

$

$

Currently unavailable

975

Toro 495933

Bowl-Float

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Kit-Part No 499116

$

$

Currently unavailable
