71193 (14-38 HXL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) Engine Briggs Stratton Model 28n707-0131-01 3 Parts Diagram

Lawn Tractor

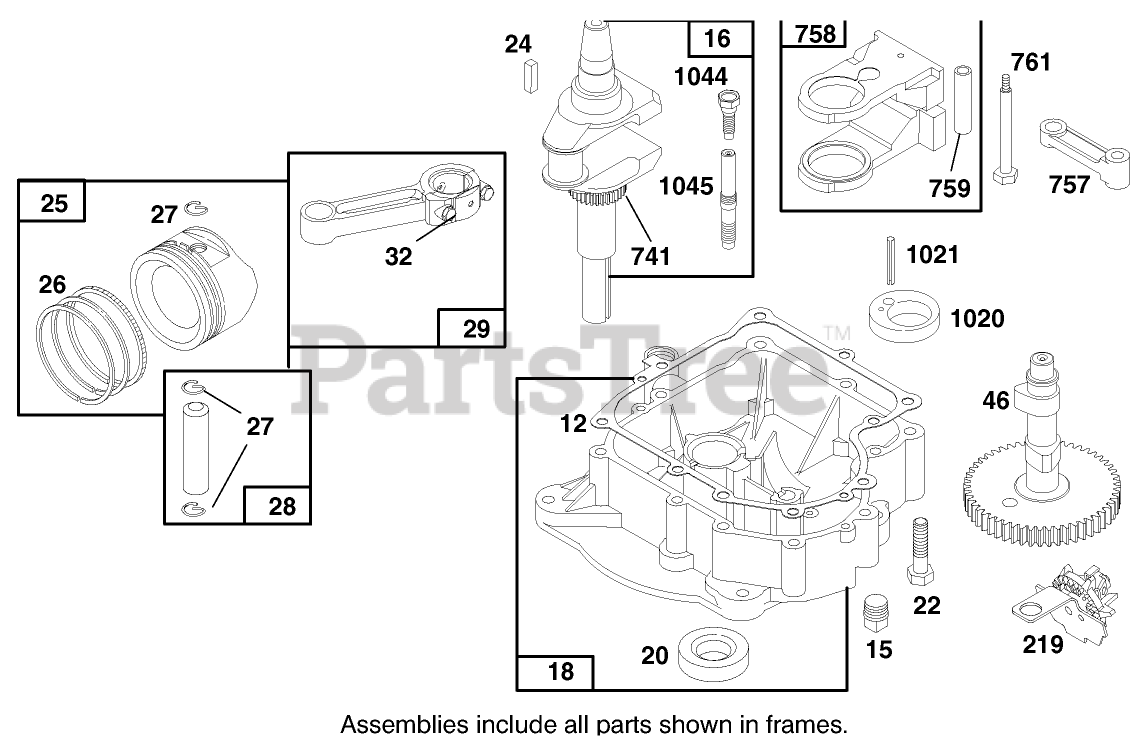

Engine Briggs Stratton Model 28n707-0131-01 3 Parts Diagram

  • Title

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

16

Toro 495162

Crankshaft

$

$

Currently unavailable

18

Toro 494238

Base-Engine

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

22

Toro 94624

Screw-Sem

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 494860

Piston Assembly (Standard)

$

$

Currently unavailable

Toro 495977

Piston Assy. (.010" O.S.)

$

$

Currently unavailable

Toro 495978

Piston Assy. (.020" O.S.)

$

$

Currently unavailable

Toro 495979

Piston Assy. (.030" O.S.)

$

$

Currently unavailable

26

Toro 495854

Ring Set (Std.)

$

$

Currently unavailable

Toro 495852

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 495851

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 495855

Rind Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 299691

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 391286

Pin-Piston (.005" OS.)

$

$

Currently unavailable

29

Toro 494504

Rod-Connecting

$

$

Currently unavailable

Toro 495490

Rod-Conn. (.020" U.S.)

$

$

Currently unavailable

32

Toro 94695

Screw-Conn. Rod (1 7/8" Long)

$

$

Currently unavailable

Toro 94648

Screw-Conn. Rod (1 5/8" Long)

$

$

Currently unavailable

46

Toro 496884

Gear-Cam

$

$

Currently unavailable

219

Toro 490815

Gear-Governor

$

$

Currently unavailable

741

Toro 262932

Gear-Elming

$

$

Currently unavailable

757

Toro 213998

Link-Counteweight

$

$

Currently unavailable

758

Toro 399891

Counterweight

$

$

Currently unavailable

759

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

761

Toro 94593

Screw-HH

$

$

Currently unavailable

1020

Toro 262243

Eccentric

$

$

Currently unavailable

1021

Toro 94160

Pin-Ecentric

$

$

Currently unavailable

1044

Toro 94673

Screw-Hex.Head

$

$

Currently unavailable

1045

Toro 231828

Crankshaft Extension

$

$

Currently unavailable
