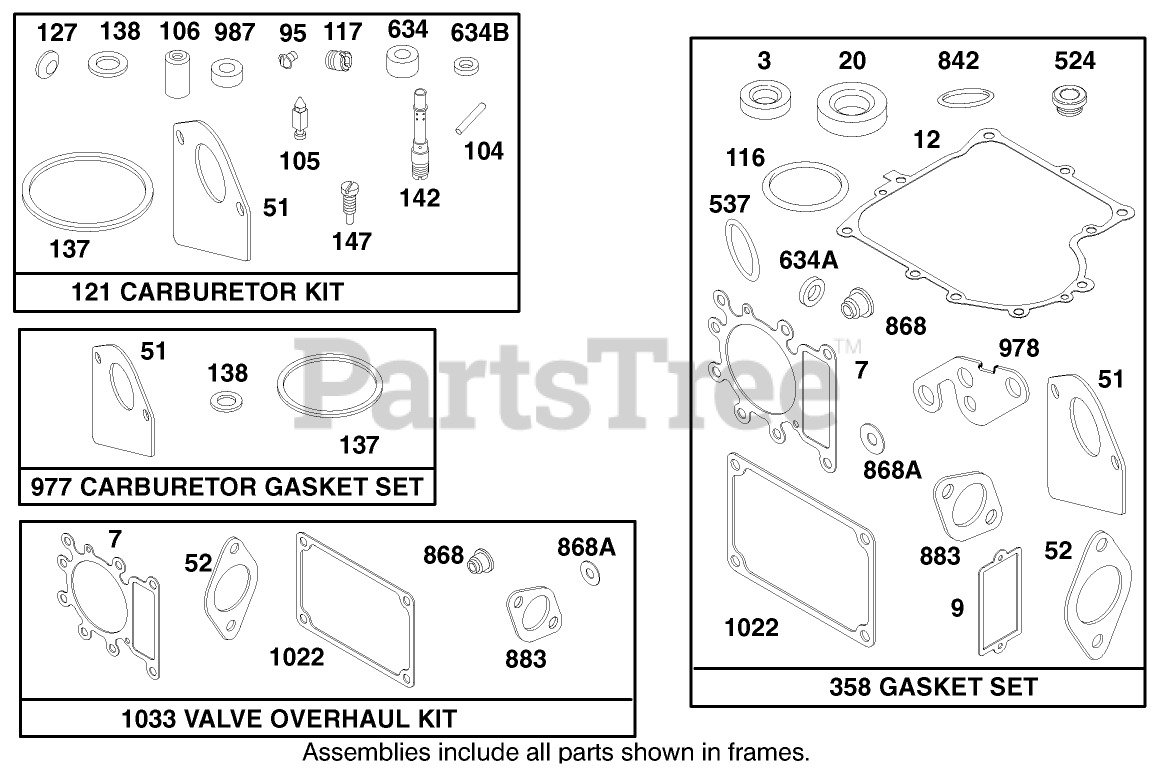

71196 (16-44 HXL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) Engine Briggs Stratton Model 28q777-0668-A1 10 Parts Diagram

Lawn Tractor

Engine Briggs Stratton Model 28q777-0668-A1 10 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

7

Toro 272614

Head

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

52

Toro 272569

Gasket-Intake

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

116

Toro 281402

O-Ring

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

117

Toro 231858

Jet-Main

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

121

Toro 498116

Carburetor Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Not available

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

142

Toro 231990

Nozzle Carburetor

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

147

Toro 231985

Jet-Pilot

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

358

Toro 495993

Gasket Set

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

537

Toro 281106

O-Ring

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

634

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

634A

Toro 281168

Seal-Choke Shaft

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

634B

Toro 281167

Seal-Throttle Shaft

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

842

Toro 270920

O-Ring

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

868

Toro 494435

Seal-Valve

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

868A

Toro 272610

Seal Valve

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

978

Toro 272888

Gasket-Adapter

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Kit-Part No. 498116.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

1033

Toro 495992

Kit-Valve Overhaul

$

$

Currently unavailable
