71196 (16-44 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

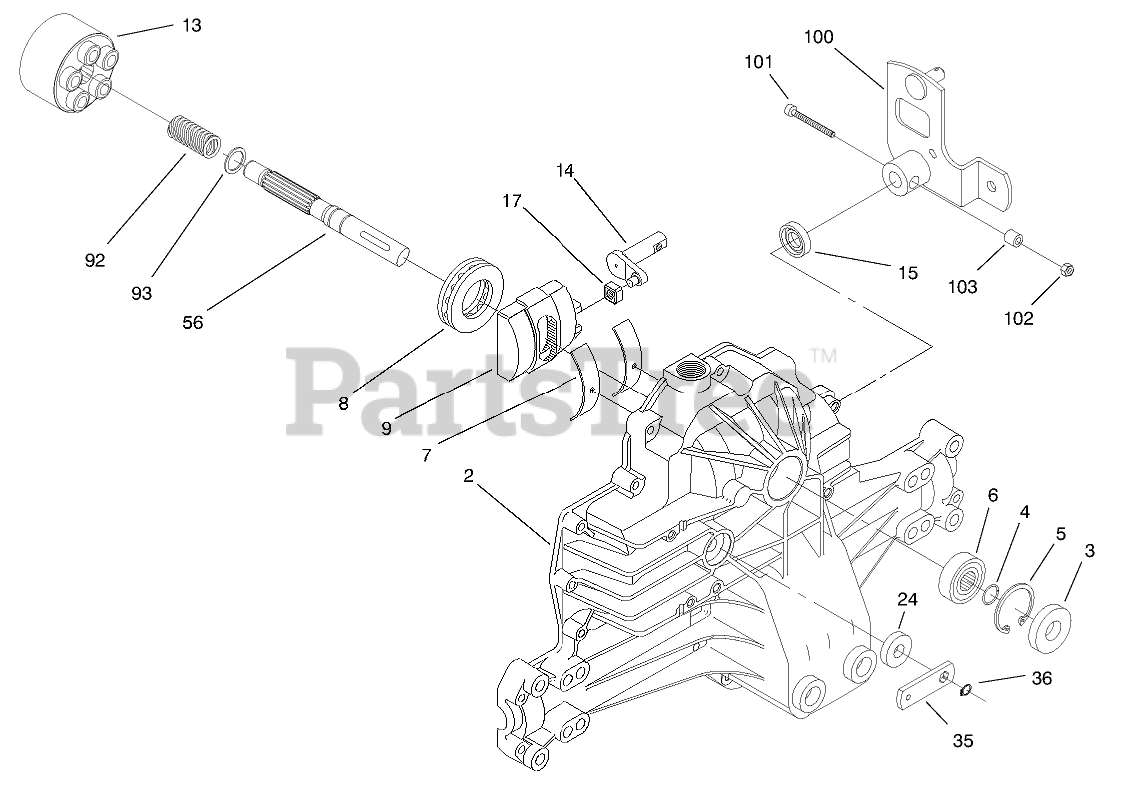

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title

2

Toro 95-3268

Housing ASM-Upper
(Superseded to 94-1901)

$

$

Not available

3

Toro 94-6543

Seal-Lip

$

$

Currently unavailable

4

Toro 94-1902

RING-WIRE, RETAINING

$6.49

$

Usually ships in 3-6 days

0

5

Toro 94-1903

RING-RETAINING

$6.49

$

In Stock, only 1 left!

0

6

Toro 94-1904

BEARING-SHAFT, BALL

$134.99

$

Usually ships in 3-6 days

0

7

Toro 94-1905

BEARING-CRADLE

$

$

Not available

8

Toro 94-6922

BEARING-THRUST

$61.99

$

In Stock, only 3 left!

0

9

Toro 94-1907

SWASHPLATE-VARIABLE

$502.99

$

Usually ships in 3-6 days

0

13

Toro 94-1908

BLOCK - CYCLINDER ASM
(Superseded to 103-2666)

$488.99

$

Usually ships in 3-6 days

0

14

Toro 94-1909

ARM-TRUNION

$

$

Not available

15

Toro 92-6544

SEAL-LIP

$15.99

$

Usually ships in 3-6 days

0

17

Toro 94-1910

GUIDE-SLOT

$21.99

$

Usually ships in 3-6 days

0

24

Toro 92-6545

SEAL-LIP

$16.99

$

Usually ships in 3-6 days

0

28

Toro 94-1917

RING - RETAINING

$

$

Not available

35

Toro 92-6547

ARM - BYPASS

$

$

Not available

36

Toro 936109

RING-RETAINING

$11.99

$

Usually ships in 3-6 days

0

56

Toro 94-1925

SHAFT - INPUT

$

$

Not available

92

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

93

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

100

Toro 93-3870

WA - SPEED CONTROL LEVER

$

$

Not available

101

Toro 3274-59

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

102

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

103

Toro 86-4270

LOCK SPACER

$26.99

$

Usually ships in 3-6 days

0
