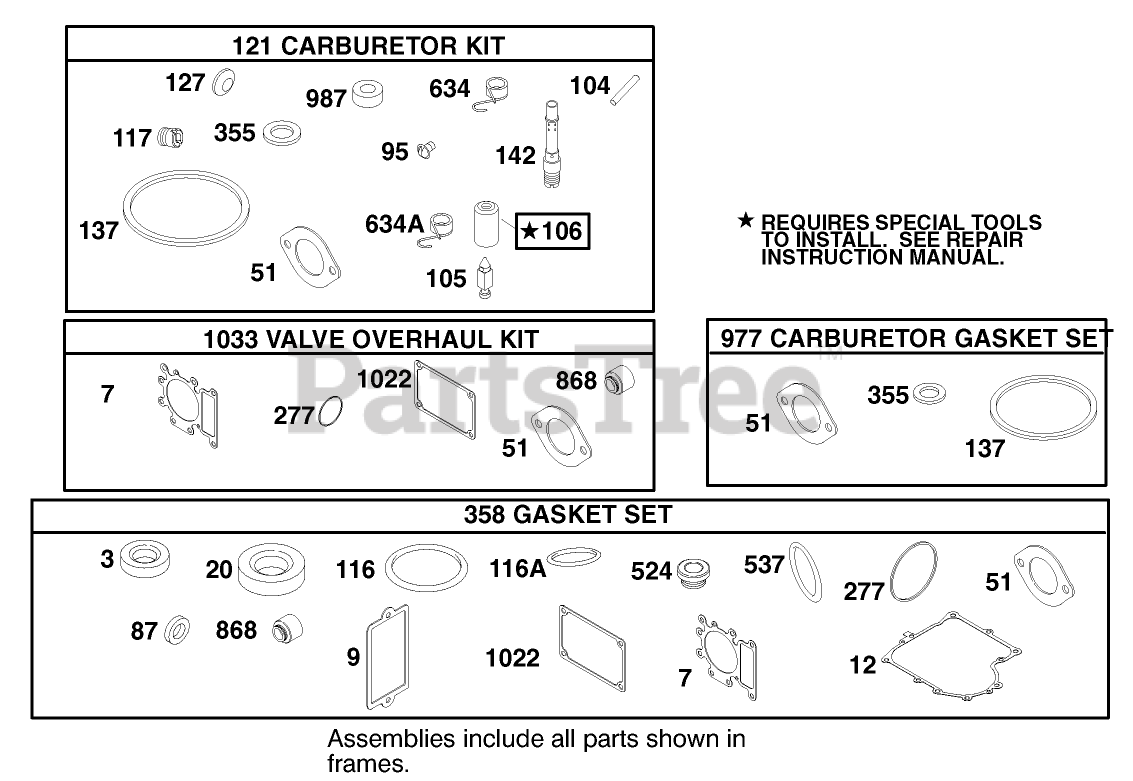

71197 (17-44 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 312777-0128-E1 10 Parts Diagram

Lawn Tractor

Engine Briggs Stratton Model 312777-0128-E1 10 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

7

Toro 692410

Gasket-Cylinder Head

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

7

Toro 692410

Gasket-Cylinder Head

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: ,

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: Included in Kits

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: ,

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: ,

$

$

Currently unavailable

87

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

116

Toro 280801

O-Ring Seal

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

116A

Toro 270920

O-Ring

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

117

Toro 232118

Jet-Main

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

121

Toro 690191

Carburetor Kit

$

$

Currently unavailable

127

Plug-Welch Sold In Kit Only

Note: Included in Carburetor Kit-Ref. 121.

$

$

Not available

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

142

Toro 231117

Nozzle-Carburetor

Note: Included in Carburetor Kit-Ref. 121.

$

$

Not available

277

Toro 692138

Seal-O Ring

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

277

Toro 692138

Seal-O Ring

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

355

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

355

Toro 281164

Washer

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

358

Toro 690189

Gasket Set

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

537

Toro 281106

O-Ring

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

634

Toro 494453

Seal-Choke Shaft

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

634A

Toro 494455

Seal-Choke Shaft

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

977

Toro 690192

Carburetor Gasket Set

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

1033

Toro 690190

Set-Valve Gasket

$

$

Currently unavailable
