71197 (17-44 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 312777-0128-E1 2 Parts Diagram

Lawn Tractor

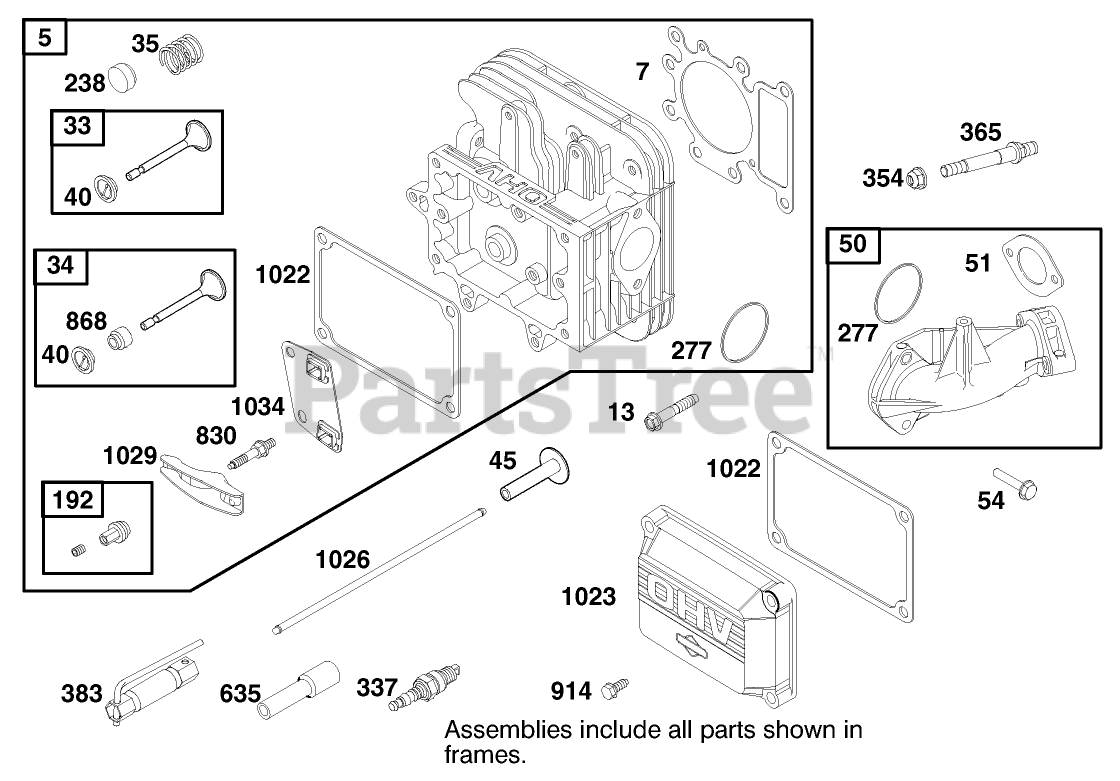

Engine Briggs Stratton Model 312777-0128-E1 2 Parts Diagram

  • Title

5

Toro 690188

Cylinder Head

$

$

Currently unavailable

7

Toro 692410

Gasket-Cylinder Head

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

7

Toro 692410

Gasket-Cylinder Head

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

13

Toro 690360

Screw

$

$

Currently unavailable

33

Toro 495856

Valve-Exhaust

$

$

Currently unavailable

34

Toro 495857

Valve-Intake

$

$

Currently unavailable

35

Toro 262811

Spring-Valve

$

$

Currently unavailable

40

Toro 224641

Retainer-Valve

$

$

Currently unavailable

45

Toro 262411

Tappet-Valve

$

$

Currently unavailable

50

Toro 690193

Manifold-Intake

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: Included in Kits

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: ,

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: ,

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: ,

$

$

Currently unavailable

54

Toro 95160

Screw-Hex.

$

$

Currently unavailable

192

Toro 492160

Adjuster-Valve

$

$

Currently unavailable

238

Toro 262836

Cap-Valve

$

$

Currently unavailable

277

Toro 692138

Seal-O Ring

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

277

Toro 692138

Seal-O Ring

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

337

Toro 491055

Plug-Spark

$

$

Currently unavailable

354

Toro 94010

Nut

$

$

Currently unavailable

365

Toro 690227

Stud

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

635

Toro 280872

Boot-Spark Plug

$

$

Currently unavailable

830

Toro 94555

Stud-Rocker Arm

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

914

Toro 94682

Screw-Hex.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Gasket Set-Ref. 358

$

$

Currently unavailable

1023

Toro 690388

Cover-Rocker

$

$

Currently unavailable

1026

Toro 494432

Guide-Push Rod

$

$

Currently unavailable

1029

Toro 224554

Arm-Rocker

$

$

Currently unavailable

1034

Toro 495248

Guide-Push Rod

$

$

Currently unavailable
