71197 (17-44 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 312777-0128-E1 4 Parts Diagram

Lawn Tractor

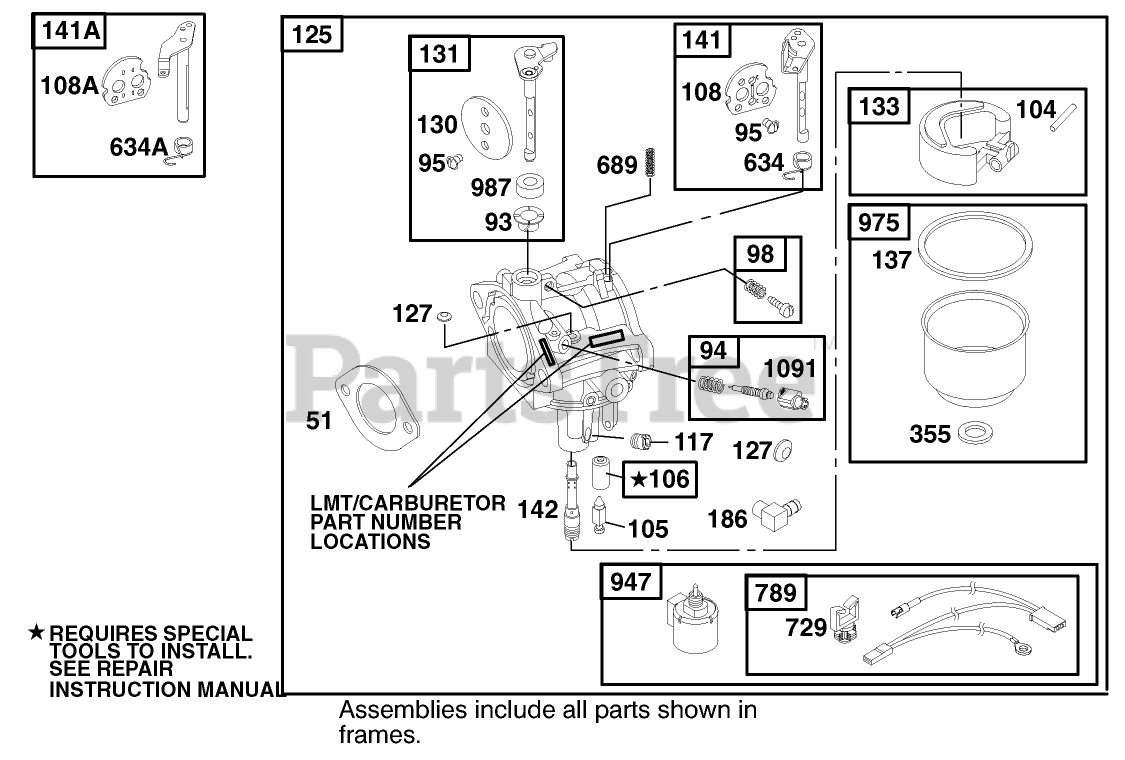

Engine Briggs Stratton Model 312777-0128-E1 4 Parts Diagram

  • Title

51

Toro 273650

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

93

Toro 281346

Bushing-Throttle

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

94

Toro 498030

Idle Mixture Kit

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

98

Toro 495800

Idle Speed Kit

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

108

Toro 224558

Valve-Choke

$

$

Currently unavailable

108A

Toro 224540

Valve-Choke

$

$

Currently unavailable

117

Toro 232118

Jet-Main

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

125

Toro 499153

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Ref. 121.

$

$

Not available

130

Toro 224539

Valve-ThroWe

$

$

Currently unavailable

131

Toro 494379

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

141

Toro 495097

Choke Shaft Kit

$

$

Currently unavailable

141A

Toro 495931

Choke Shaft Kit

$

$

Currently unavailable

142

Toro 232117

Carburetor Nozzle

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

186

Toro 493496

Connector-Fuel

$

$

Currently unavailable

355

Toro 281164

Washer

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

355

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

634

Toro 494453

Seal-Choke Shaft

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

634A

Toro 494455

Seal-Choke Shaft

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

689

Toro 262715

Friction Spring

$

$

Currently unavailable

789

Toro 497708

Wire Stop

$

$

Currently unavailable

947

Toro 497672

Solenoid

$

$

Currently unavailable

975

Toro 495933

Bowl-Float

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Kit-Ref. 121.

$

$

Currently unavailable

1091

Toro 691333

Cap-Limiter

$

$

Currently unavailable
