71198 (14-38 XL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) Engine Briggs Stratton Model 28n777-1174-E1 Parts Diagram

Lawn Tractor

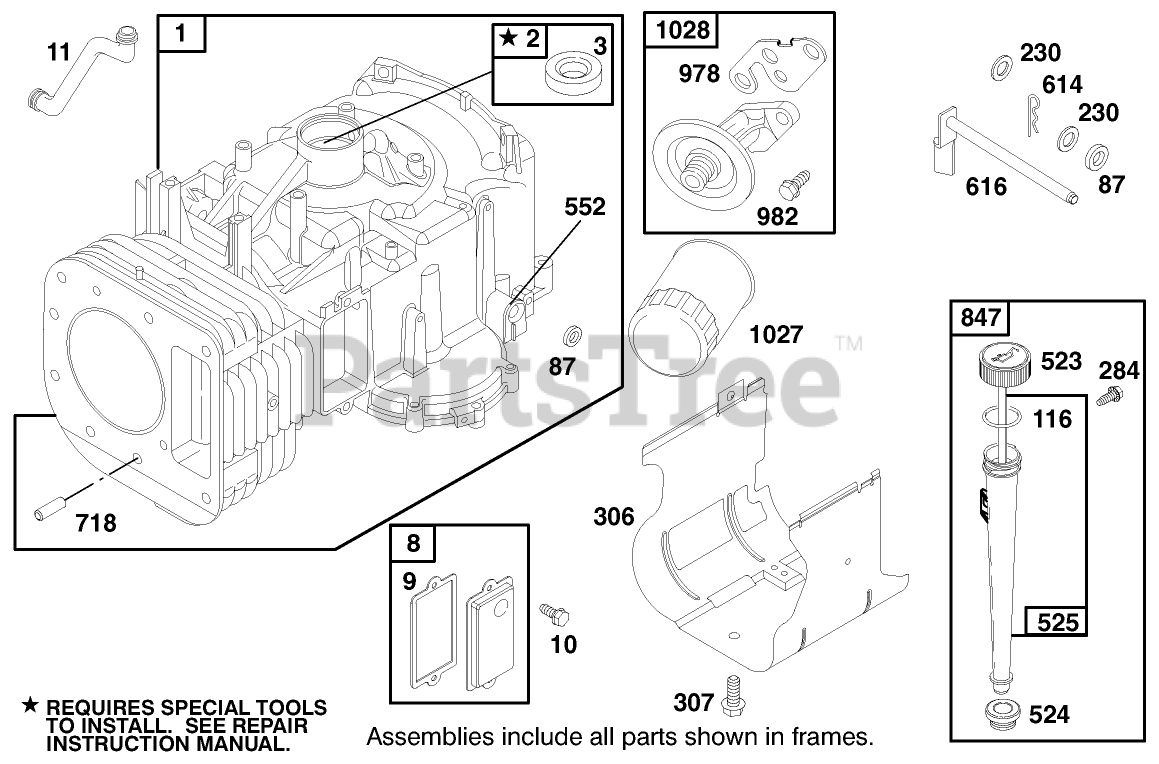

Engine Briggs Stratton Model 28n777-1174-E1 Parts Diagram

  • Title

1

Toro 496412

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

8

Toro 495735

Breather ASM

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 281246

Tube-Breather

$

$

Currently unavailable

87

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

116

Toro 270920

O-Ring

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

230

Toro 94927

Washer

$

$

Currently unavailable

284

Toro 94903

Screw-Shoulder

$

$

Currently unavailable

306

Toro 225020

DISCONTINUED

$

$

Not available

307

Toro 94930

Screw-Hex

$

$

Currently unavailable

523

Toro 495230

Dipstick

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

525

Toro 496113

Tube-Oil Fill

$

$

Currently unavailable

552

Toro 491986

Bushing-Crank, Governor

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

616

Toro 495157

Crank-Governor

$

$

Currently unavailable

718

Toro 230192

Pin-Dowel

$

$

Not available

847

Toro 496415

Fill Group-Oil

$

$

Currently unavailable

978

Toro 272888

Gasket-Adapter

$

$

Currently unavailable

982

Toro 94899

Screw-Sem

$

$

Currently unavailable

1027

Toro 492932

Filter-Oil

$

$

Currently unavailable

1028

Toro 496744

Adapter-Filter

$

$

Currently unavailable
