71199 (12-32 XL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) 32" Deck Components Assembly Parts Diagram

Lawn Tractor

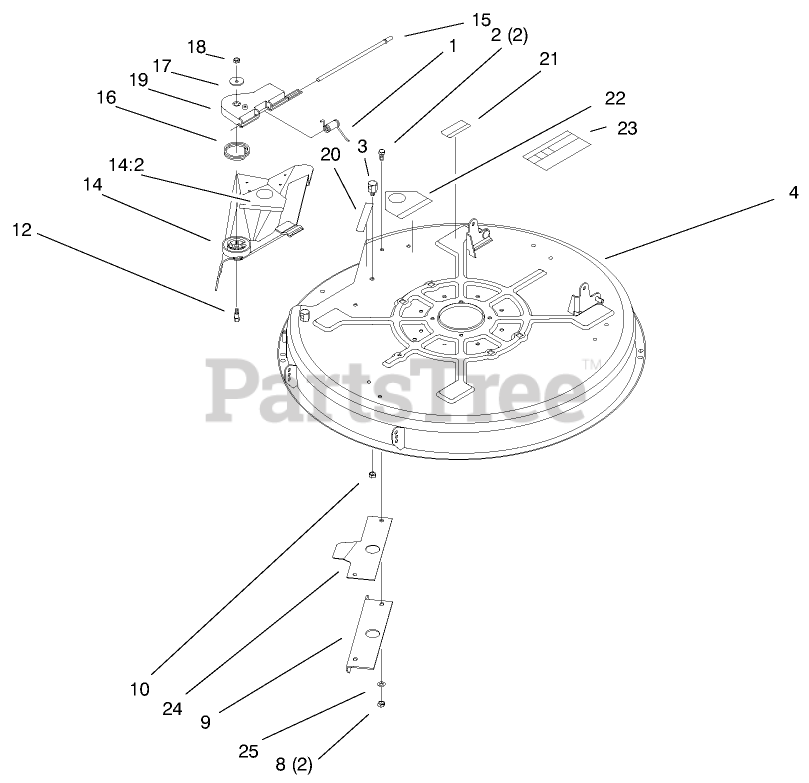

32" Deck Components Assembly Parts Diagram

  • Title

1

Toro 92-2493

SPRING-TORSION

$13.99

$

In Stock, only 2 left!

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 28-7350

POST-PIVOT

$42.99

$

Usually ships in 3-6 days

0

4

Toro 95-7482

DECK ASM

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 44-5720-03

BAFFLE-DECK

$

$

Not available

10

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 3 left!

0

12

Toro 92-8916

BOLT-SHOULDER

$17.99

$

In Stock, only 2 left!

0

14

Toro 93-0318

DEFLECTOR ASM - 32"

$118.99

$

In Stock, only 1 left!

0

14:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

15

Toro 88-6150

ROD-HINGE, DEFLECTOR

$

$

Not available

16

Toro 88-6160

SPRING-TORSION

$39.99

$

In Stock, only 2 left!

0

17

Toro 3256-58

See Supercession: 3256-55
(Superseded to 3256-55)

$5.99

$

In Stock, Qty 11

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 88-4540

PIVOT-HINGE, DEFLECTOR

$26.99

$

In Stock, only 2 left!

0

20

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

21

Toro 55-4300

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0

22

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

23

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

24

Toro 92-2494-03

RAMP-DEFLECTOR

$31.99

$

Usually ships in 3-6 days

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
