71199 (12-32 XL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) 32" DECK BLADE DRIVE & BRAKING COMPONENTS ASSEMBLY Parts Diagram

Lawn Tractor

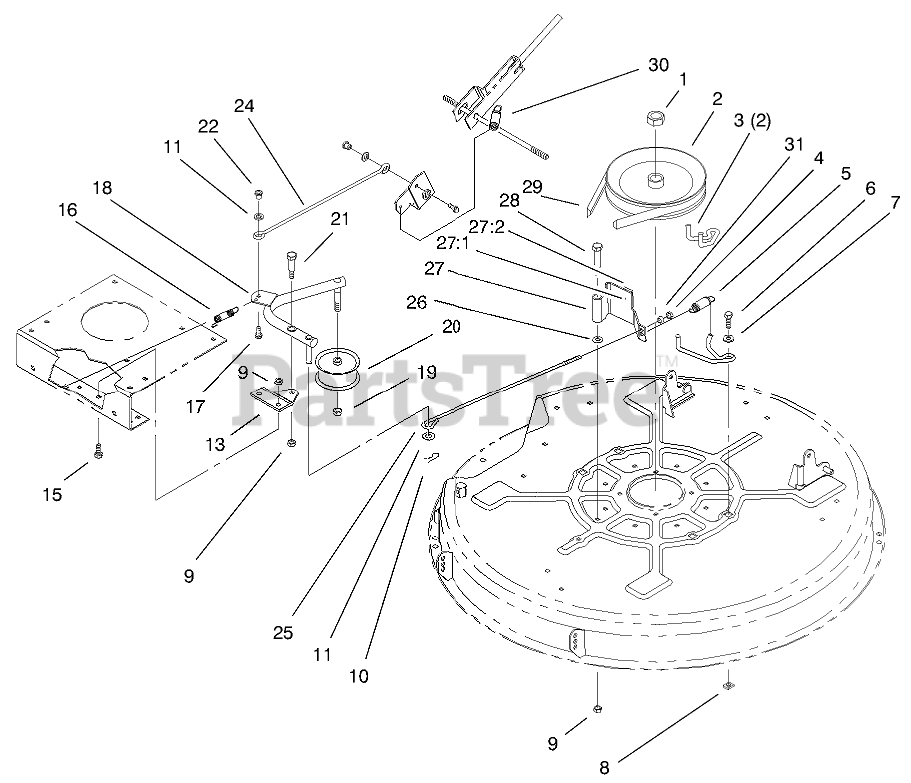

32" DECK BLADE DRIVE & BRAKING COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

2

Toro 88-5060

PULLEY-DECK

$

$

Not available

3

Toro 88-5760

GUIDE-BELT, DECK

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 88-6330

SPRING-EXTENSION

$9.49

$

Usually ships in 3-6 days

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, only 1 left!

0

8

Toro 3290-496

NUT-RETAINER

$6.99

$

In Stock, Qty 11

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 88-5370-03

PLATE-MOUNTING, IDLER

$

$

Not available

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 26-6700

SPRING-RETURN, BRAKE

$

$

Not available

17

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 1 left!

0

18

Toro 88-5850-03

ARM-IDLER WA (BLACK)

$408.99

$

Usually ships in 3-6 days

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 56-9870

PULLEY-IDLER

$55.99

$

In Stock, only 2 left!

0

21

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 20+

0

22

Toro 47-4990

POST-MOUNTING, LINKAGE

$28.99

$

Usually ships in 3-6 days

0

24

Toro 88-5980

ROD-ENGAGE, DECK

$31.99

$

In Stock, only 1 left!

0

25

Toro 88-5690

ROD-BRAKE, DECK

$

$

Not available

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 88-6110

BRAKE ARM ASM

$97.99

$

Usually ships in 3-6 days

0

27:1

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 7

0

27:2

Toro 56-9830

PAD-BRAKE

$37.99

$

In Stock, only 2 left!

0

28

Toro 88-4590

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

29

Toro 88-6260

V-BELT

$52.99

$

In Stock, only 2 left!

0

30

Toro 88-6420

CABLE SPRING ASM

$54.99

$

In Stock, only 3 left!

0

31

Toro 67-0710

BALL-SWIVEL, STOP

$4.99

$

Usually ships in 3-6 days

0
