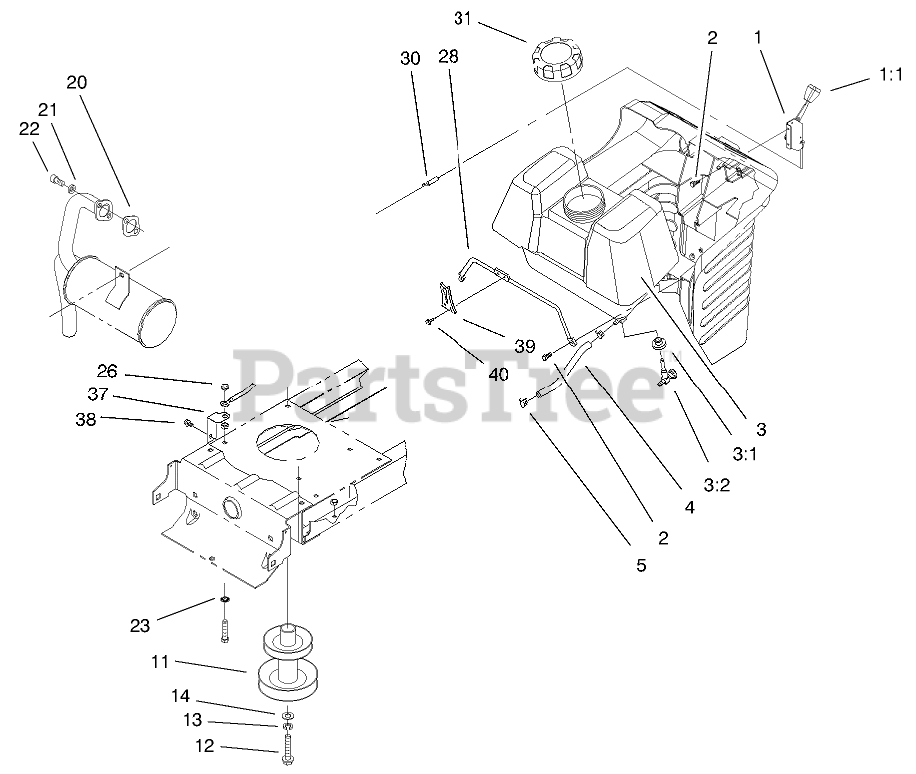

71199 (12-32 XL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE SYSTEMS COMPONENTS ASSEMBLY Parts Diagram

Lawn Tractor

ENGINE SYSTEMS COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 88-4340

THROTTLE CONTROL ASM

$46.99

$

Usually ships in 3-6 days

0

1:1

Toro 66-0120

KNOB

$6.49

$

In Stock, Qty 6

0

2

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 4 left!

0

3

Toro 88-3880

GAS TANK ASM

$245.99

$

In Stock, only 1 left!

0

3:1

Toro 104047

BUSHING
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

3:2

Toro 104048

VALVE-FUEL

$40.99

$

In Stock, only 2 left!

0

4

Toro 47-2963

HOSE-FUEL
(Superseded to 107-9297)

$8.49

$

In Stock, only 2 left!

0

5

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

11

Toro 88-5050

PULLEY-ENGINE

$

$

Not available

12

Toro 62-3760

SCREW-HH

$

$

Not available

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

14

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

20

Toro 88-4410

GASKET-EXHAUST

$20.99

$

In Stock, only 2 left!

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

22

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, only 4 left!

0

23

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

26

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, only 4 left!

0

28

Toro 94-1952

ROD-TANK, GAS

$43.99

$

Usually ships in 3-6 days

0

30

Toro 88-4350

THROTTLE CABLE ASM

$32.99

$

In Stock, only 1 left!

0

31

Toro 88-3980

GAS CAP ASM

$36.99

$

In Stock, Qty 17

0

37

Toro 93-3809

BRACKET-GROUND

$

$

Not available

38

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

39

Toro 94-1951

LATCH-HOOD

$9.49

$

Usually ships in 3-6 days

0

40

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
