71200 (12-32 XL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Model 254707-0128-01 Parts Diagram

Lawn Tractor

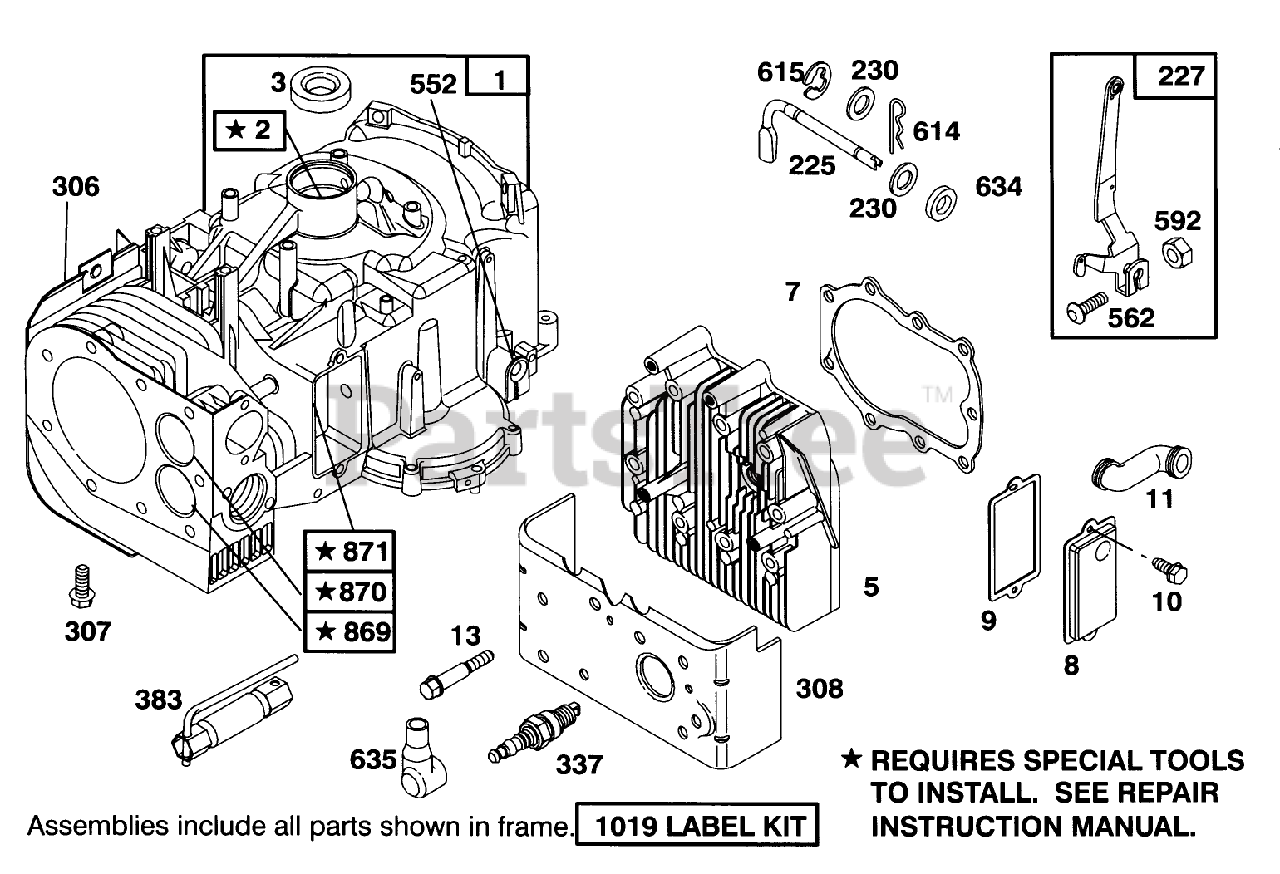

Engine Briggs Stratton Model 254707-0128-01 Parts Diagram

  • Title

1

Toro 495728

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

5

Toro 212914

Head-Cylinder

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

8

Toro 391406

Assembly-Breather

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 280100

Tube-Breather

$

$

Currently unavailable

13

Toro 93723

Screw-Cylinder Head

$

$

Currently unavailable

225

Toro 231058

Crank-Governor

$

$

Currently unavailable

227

Toro 493935

Lever-Governor

$

$

Currently unavailable

230

Toro 94742

Washer-Flat

$

$

Currently unavailable

306

Toro 224542

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93949

Screw-Sem

$

$

Currently unavailable

308

Toro 222725

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

552

Toro 231597

Nut-Hex.

$

$

Not available

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 231082

Nut (Governor Control Lever)

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

634

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

869

Toro 261463

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 213316

CG7024 TWO WHEEL TR

$3.23

$

Usually ships in 3-6 days

0

871

Toro 261961

Manual-Owner's

$

$

Currently unavailable

1019

Toro 491195

Decal Kit

$

$

Currently unavailable
