71200 (12-32 XL) - Toro Lawn Tractor (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Model 254707-0128-01 8 Parts Diagram

Lawn Tractor

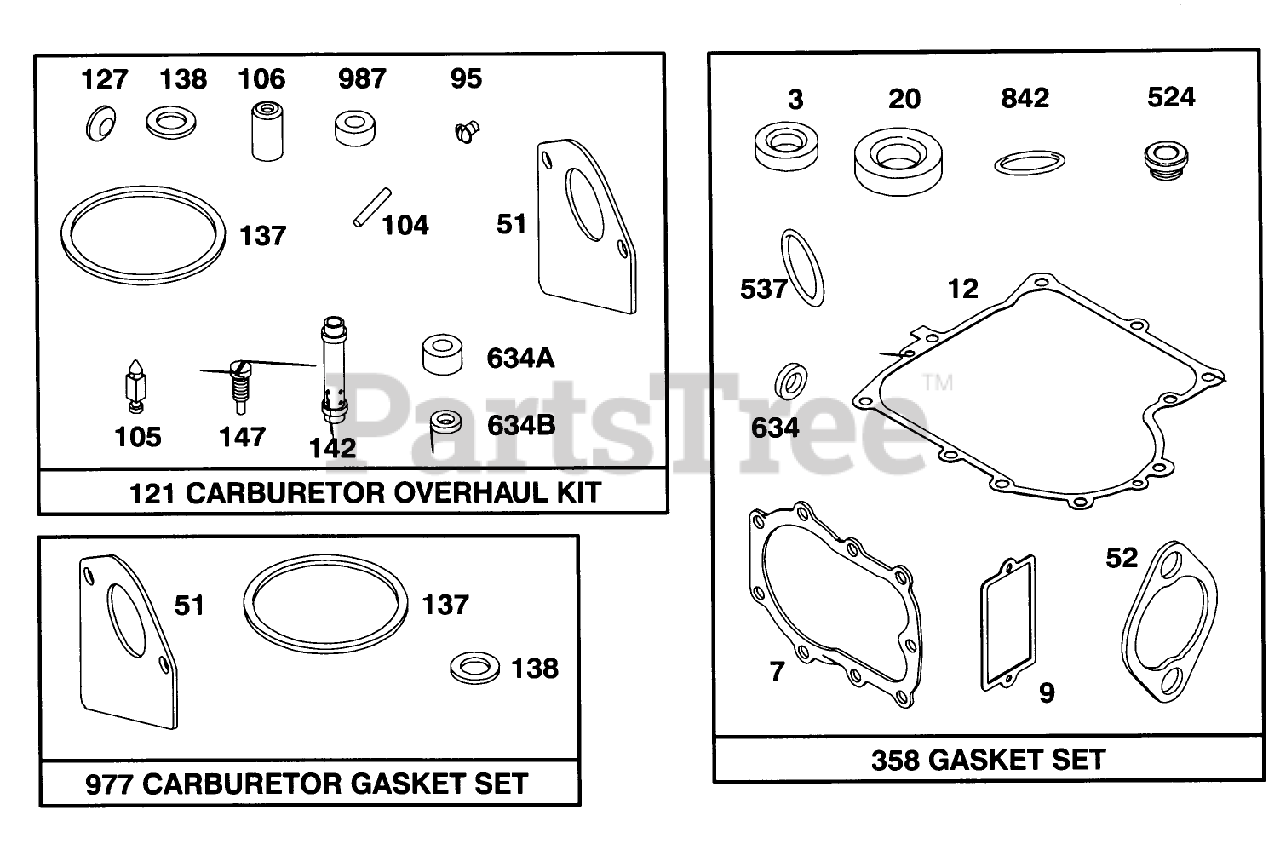

Engine Briggs Stratton Model 254707-0128-01 8 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

12

Toro 271702

Gasket-Cover 1/64"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Toro 270915

Gasket-Cover .005"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Toro 270916

Gasket-Cover .009"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

52

Toro 272554

Gasket-Intake

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

121

Toro 495837

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Not available

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

142

Toro 494878

Nozzle-Carburetor

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

147

Toro 231794

Pilot-Jet

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

358

Toro 393411

Gasket Set

$

$

Currently unavailable

524

Toro 68838

Seal-Fill Tube

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

537

Toro 281106

O-Ring

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

634

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

634A

Toro 281168

Seal-Choke Shaft

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

634B

Toro 281167

Seal-Throttle Shaft

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable

842

Toro 270920

O-Ring

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Cart Carburetor Overhaul Kit-Part No. 495837

$

$

Currently unavailable
