71200 (12-32 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) ENGINE BRIGGS & STRATTON MODEL 283707-0156-01 Parts Diagram

Lawn Tractor

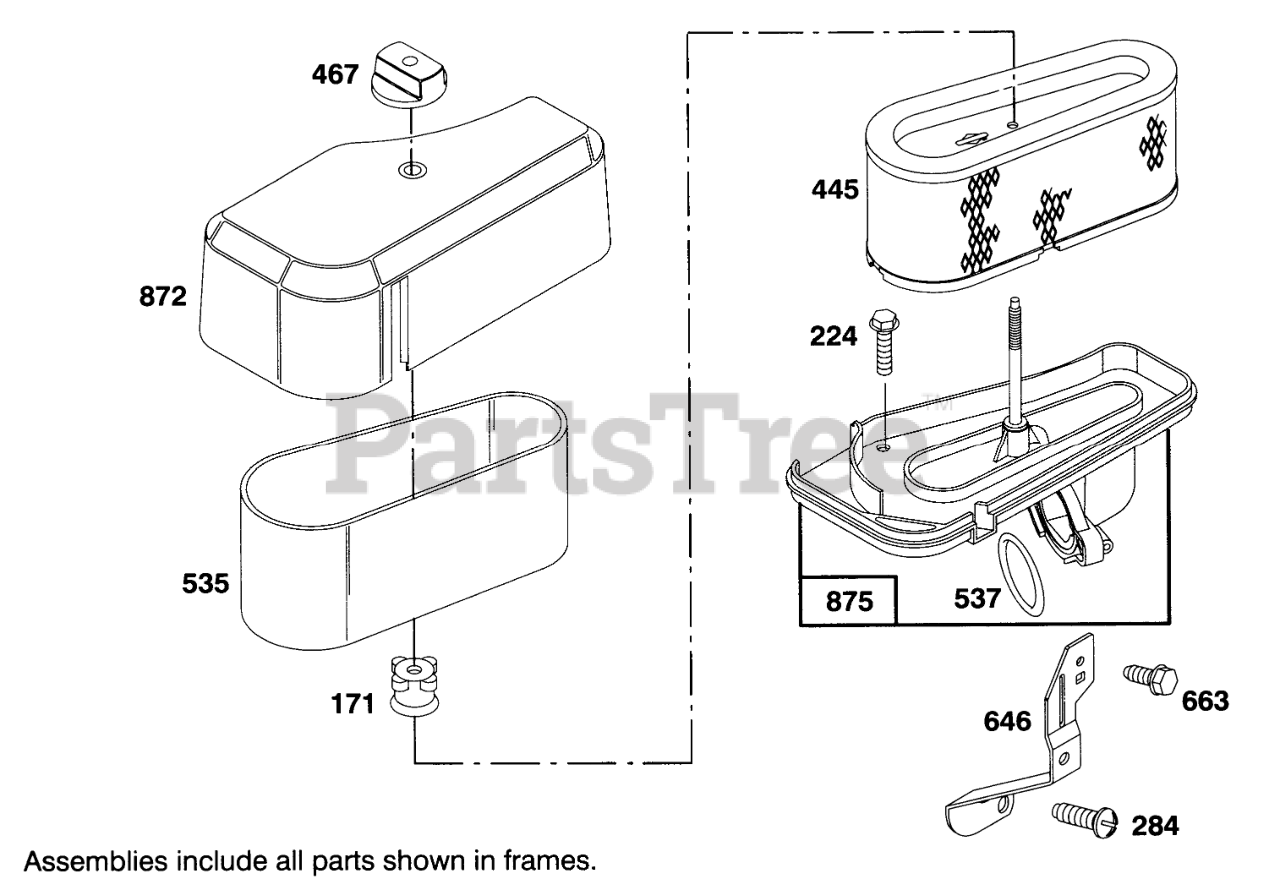

ENGINE BRIGGS & STRATTON MODEL 283707-0156-01 Parts Diagram

  • Title

5

Toro 1272465

Gasket-Carburetor (Carb to Elbow)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

171

Briggs & Stratton 281051

Nut
(Superseded to 692297)

$11.99

$

In Stock, only 2 left!

0

224

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$6.49

$

In Stock, Qty 20+

0

284

Briggs & Stratton 94326

Screw-Pan Head
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

445

Briggs & Stratton 493909

Filter-Air
(Superseded to 496894S)

$19.99

$

In Stock, Qty 10

0

467

Briggs & Stratton 493903

Knob
(Superseded to 691668)

$5.99

$

In Stock, Qty 20+

0

535

Briggs & Stratton 272403

Filter-Air
(Superseded to 272403S)

$4.49

$

In Stock, Qty 12

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Included in Gasket Set-Part No. 494241.

$4.49

$

In Stock, Qty 20+

0

646

Briggs & Stratton 224546

Brace-Air Cleaner

$

$

Not available

663

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

872

Briggs & Stratton 281104

Cover-Air Cleaner
(Superseded to 691916)

$

$

Not available

875

Briggs & Stratton 494237

Base-Air Cleaner
(Superseded to 696129)

$

$

Not available

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$45.99

$

In Stock, only 2 left!

0
