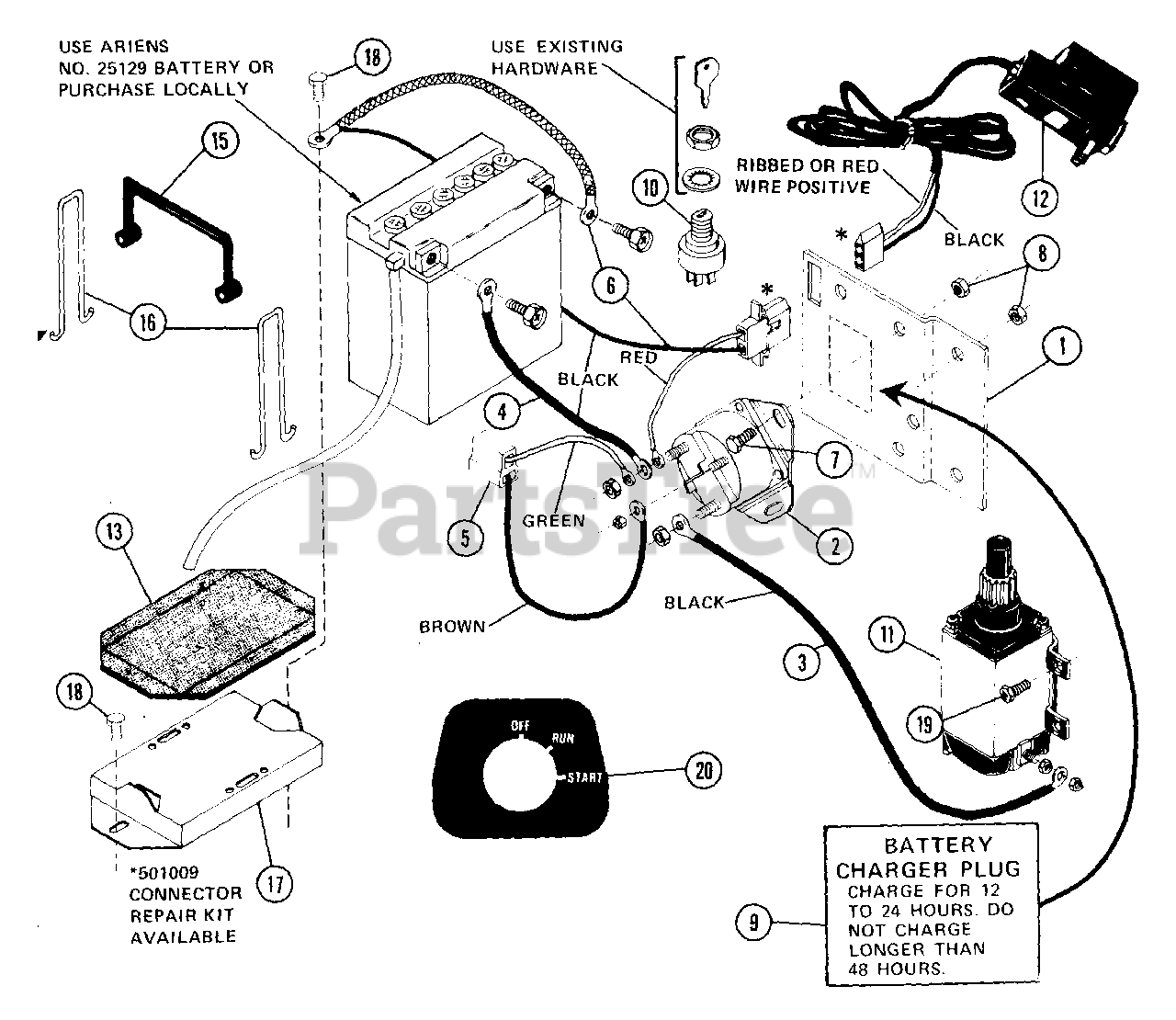

712005 - Ariens Electric Start Kit 12 Volt Battery Starter Kit 12 Volt Parts Diagram

Electric Start Kit 12 Volt

Battery Starter Kit 12 Volt Parts Diagram

  • Title

1

Ariens 02535800

BRACKET SOLENOID

$

$

Not available

2

Ariens 02913200

SOLENOID,STARTER SWITCH
(Superseded to 53504000)

$81.99

$

Usually ships in 4-12 days

0

3

Ariens 02902600

GROUND CABLE
(Superseded to 03557600)

$

$

Not available

4

Ariens 02304100

BATTERY CABLE
(Superseded to 02742000)

$

$

Not available

5

Ariens 02535900

WIRING HARNESS SWITCH

$

$

Not available

6

Ariens 02536000

WIRING HARNESS BATTERY CHARGER

$

$

Not available

7

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07835500

DECAL CHARGING

$

$

Not available

10

Ariens 02513100

KEY SWITCH
(Superseded to 52709300)

$58.99

$

In Stock, only 2 left!

0

11

Starter Motor, Tecumseh(Tecumseh No. 33605)

Note: (Tecumseh No. 33605)

$

$

Not available

12

Ariens 00124600

BATTERY CHARGER

$

$

Not available

13

Ariens 02530700

RUBBER PAD

$

$

Not available

15

Ariens 07507500

BATTERY STRAP

$15.99

$

Usually ships in 4-12 days

0

16

Ariens 02515200

HOOK
(Superseded to 03640900)

$40.99

$

Usually ships in 4-12 days

0

17

Ariens 01223600

BATTERY RETAINER

$

$

Not available

18

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

19

Ariens 07004500

SCR-CAP CR SEMS .25-20X.50 PL

$

$

Not available

20

Ariens 07835400

DECAL SWITCH
(Superseded to 07858200)

$

$

Not available
