71205 (13-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059999999) (1995) Engine Briggs Stratton Model 28m707-0122-01 2 Parts Diagram

Lawn Tractor

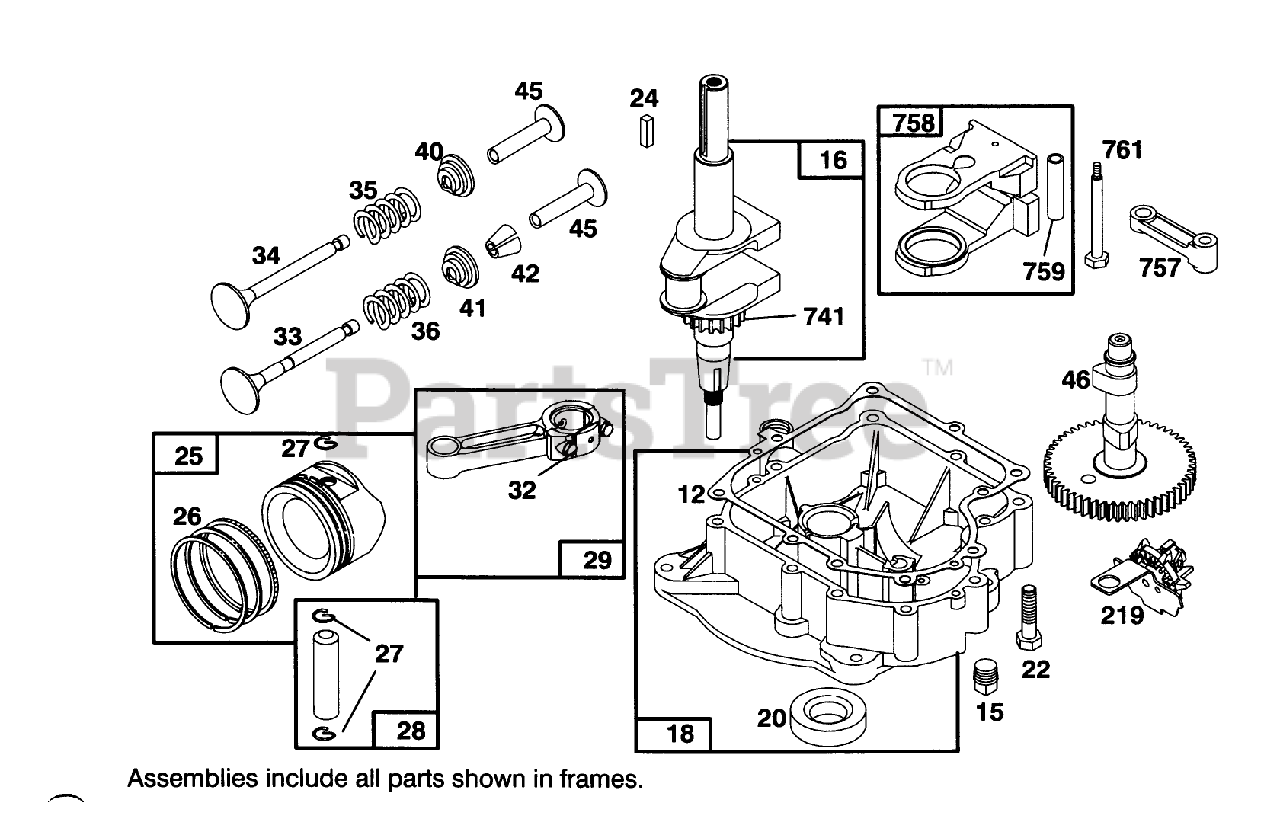

Engine Briggs Stratton Model 28m707-0122-01 2 Parts Diagram

  • Title

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

16

Toro 495162

Crankshaft

$

$

Currently unavailable

Toro 94196

Key-Timing

$

$

Currently unavailable

18

Toro 494238

Base-Engine

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

22

Toro 94624

Screw-Sem

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 394661

Piston Assy-Std.

$

$

Currently unavailable

Toro 394662

Piston Assy-.010" O.S.

$

$

Currently unavailable

Toro 394663

Piston Assy-.020" O.S.

$

$

Currently unavailable

Toro 394664

Piston Assy-.030" O.S.

$

$

Currently unavailable

26

Toro 391780

Ring Set (Std.)

$

$

Currently unavailable

Toro 391781

Ring Set (.010 O.S.)

$

$

Currently unavailable

Toro 391782

Ring Set (.020 O.S.)

$

$

Currently unavailable

Toro 391783

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 299691

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 391286

Pin-Piston (.005" OS.)

$

$

Currently unavailable

29

Toro 490348

Rod-Connecting

$

$

Currently unavailable

Toro 490469

Rod-Connecting (.020" U.S.)

$

$

Currently unavailable

32

Toro 94671

Screw-Conn. Rod

$

$

Currently unavailable

33

Toro 262246

Valve-Exhaust

$

$

Currently unavailable

34

Toro 262247

Valve-Intake

$

$

Currently unavailable

35

Toro 65906

Spring-Valve

$

$

Currently unavailable

36

Toro 26828

Spring-Valve

$

$

Currently unavailable

40

Toro 221596

Retainer-Valve

$

$

Currently unavailable

41

Toro 292260

Retainer-Valve

$

$

Currently unavailable

42

Toro 93630

Retainer-Rotocoil

$

$

Currently unavailable

45

Toro 262248

Tappet

$

$

Currently unavailable

46

Toro 212897

Gear-Cam

$

$

Currently unavailable

219

Toro 490815

Gear-Governor

$

$

Currently unavailable

741

Toro 262932

Gear-Elming

$

$

Currently unavailable

757

Toro 212359

Link-Counterweight

$

$

Currently unavailable

758

Toro 399891

Counterweight

$

$

Currently unavailable

759

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

761

Toro 93875

Screw

$

$

Currently unavailable
