71208 (13-38 XL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 28M707-0127-01 Parts Diagram

Lawn Tractor

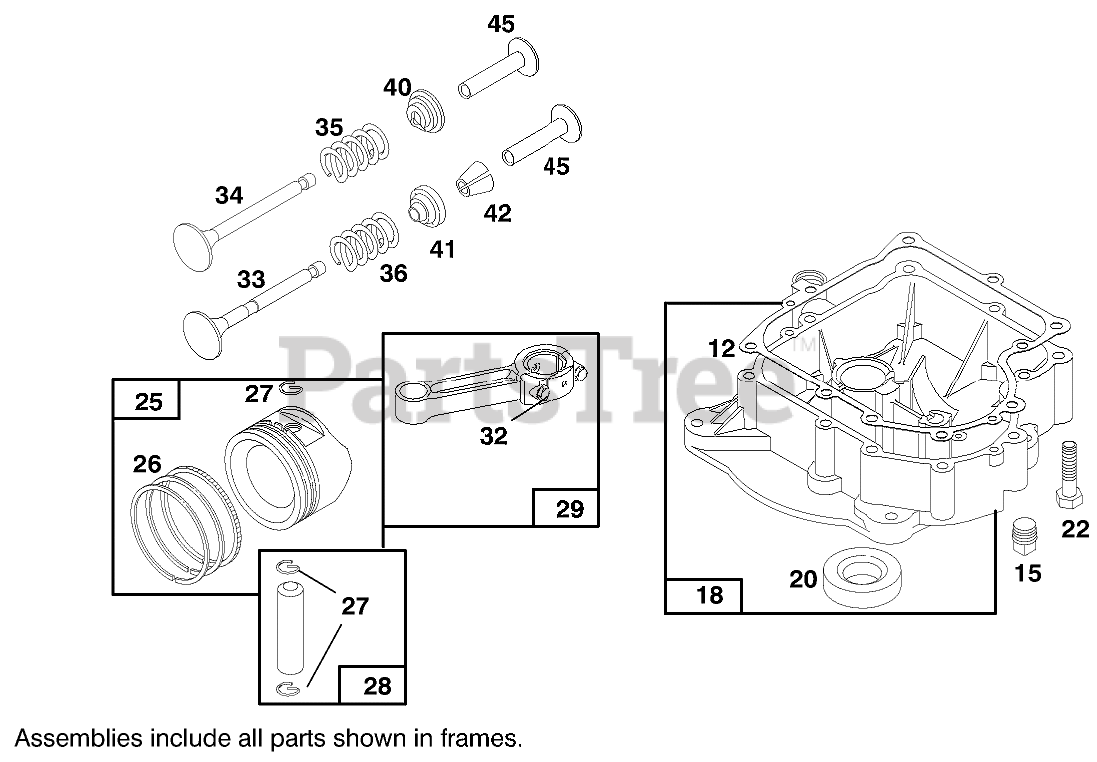

ENGINE BRIGGS & STRATTON MODEL 28M707-0127-01 Parts Diagram

  • Title

12

Briggs & Stratton 271916

Gasket-Crankcase (1/64")
(Superseded to 692226)

Note: Included in Gasket Set-Part No. 494241.

$6.99

$

In Stock, Qty 8

0

Briggs & Stratton 271997

Gasket-Crankcase (.005")
(Superseded to 692406)

Note: Included in Gasket Set-Part No. 494241.

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 271996

Gasket-Crankcase (.009")
(Superseded to 692405)

Note: Included in Gasket Set-Part No. 494241.

$6.99

$

In Stock, Qty 9

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

$6.49

$

In Stock, Qty 8

0

18

Briggs & Stratton 494238

Base-Engine

$

$

Not available

20

Briggs & Stratton 291675

Seal-Oil
(Superseded to 291675S)

Note: Included in Gasket Set-Part No. 494241.

$7.49

$

In Stock, Qty 5

0

22

Briggs & Stratton 94624

Screw-Sem
(Superseded to 692125)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 497518

Piston Assy. (Std.)
(Superseded to 499284)

$

$

Not available

Briggs & Stratton 497519

Piston Assy. (.010" O.S.)

$

$

Not available

Briggs & Stratton 497520

Piston Assy. (.020" O.S.)
(Superseded to 499292)

$

$

Not available

Briggs & Stratton 497521

Piston Assy. (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 391780

Ring Set (Std.)
(Superseded to 499996)

$64.99

$

In Stock, Qty 8

0

Briggs & Stratton 391781

Ring Set (.010 O.S.)

$

$

Not available

Briggs & Stratton 391782

Ring Set (.020 O.S.)
(Superseded to 499998)

$73.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391783

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

$5.49

$

In Stock, only 2 left!

0

28

Briggs & Stratton 299691

Pin-Piston (Std.)

$19.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391286

Pin-Piston (.005" OS.)

$

$

Not available

29

Briggs & Stratton 490348

Rod-Connecting

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 490469

Rod-Connecting (.020" U.S.)
(Superseded to 495490)

$

$

Not available

32

Briggs & Stratton 94671

Screw-Conn. Rod
(Superseded to 691133)

$5.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262246

Valve-Exhaust
(Superseded to 262246S)

$

$

Not available

34

Briggs & Stratton 262247

Valve-Intake
(Superseded to 262247S)

$

$

Not available

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$7.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$11.99

$

In Stock, only 3 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$29.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$8.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 262248

Tappet
(Superseded to 691811)

$

$

Not available

121

Briggs & Stratton 495799

Carburetor Kit
(Superseded to 497535)

$58.99

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

Note: Included in Carburetor Kit-Part No. 497535.

$4.49

$

In Stock, only 2 left!

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$45.99

$

In Stock, only 2 left!

0
