71208 (13-38 XL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) Engine Briggs Stratton Model 28m707-1122-E1 Parts Diagram

Lawn Tractor

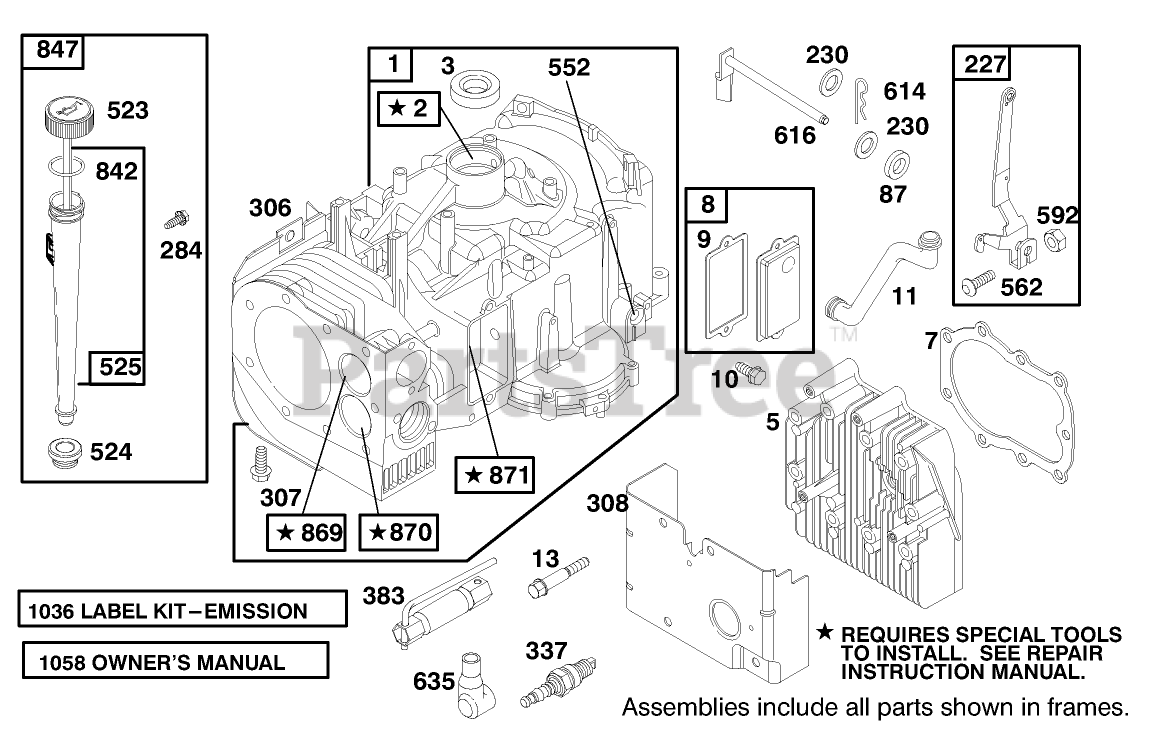

Engine Briggs Stratton Model 28m707-1122-E1 Parts Diagram

  • Title

1

Toro 496413

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

5

Toro 494240

Head-Cylinder

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

$

$

Currently unavailable

8

Toro 495735

Breather ASM

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 280100

Tube-Breather

$

$

Currently unavailable

13

Toro 94622

Screw-Cylinder Head

$

$

Currently unavailable

87

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

227

Toro 493935

Lever-Governor

$

$

Currently unavailable

230

Toro 94927

Washer

$

$

Currently unavailable

284

Toro 94903

Screw-Shoulder

$

$

Currently unavailable

306

Toro 224545

Shield-Cylinder

$

$

Currently unavailable

307

Toro 94930

Screw-Hex

$

$

Currently unavailable

308

Toro 491490

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

523

Toro 495230

Dipstick

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

525

Toro 496113

Tube-Oil Fill

$

$

Currently unavailable

552

Toro 491986

Bushing-Crank, Governor

$

$

Currently unavailable

562

Toro 94907

Bolt-Carriage

$

$

Currently unavailable

592

Toro 231978

Nut-Hex

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

616

Toro 495157

Crank-Governor

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

842

Toro 270920

O-Ring

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

847

Toro 496415

Fill Group-Oil

$

$

Currently unavailable

869

Toro 261463

Seat-Intake Valve

$

$

Currently unavailable

870

Toro 262924

Seat-Exhaust Valve

$

$

Currently unavailable

871

Toro 261961

Manual-Owner's

$

$

Currently unavailable

1036

Toro 499362

Emission Label Kit

$

$

Currently unavailable

1058

Toro 273681

Manual-Owner's

$

$

Currently unavailable
