71209 (13-32 XLE) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) Engine Briggs Stratton Model 28m707-1122-E1 4 Parts Diagram

Lawn Tractor

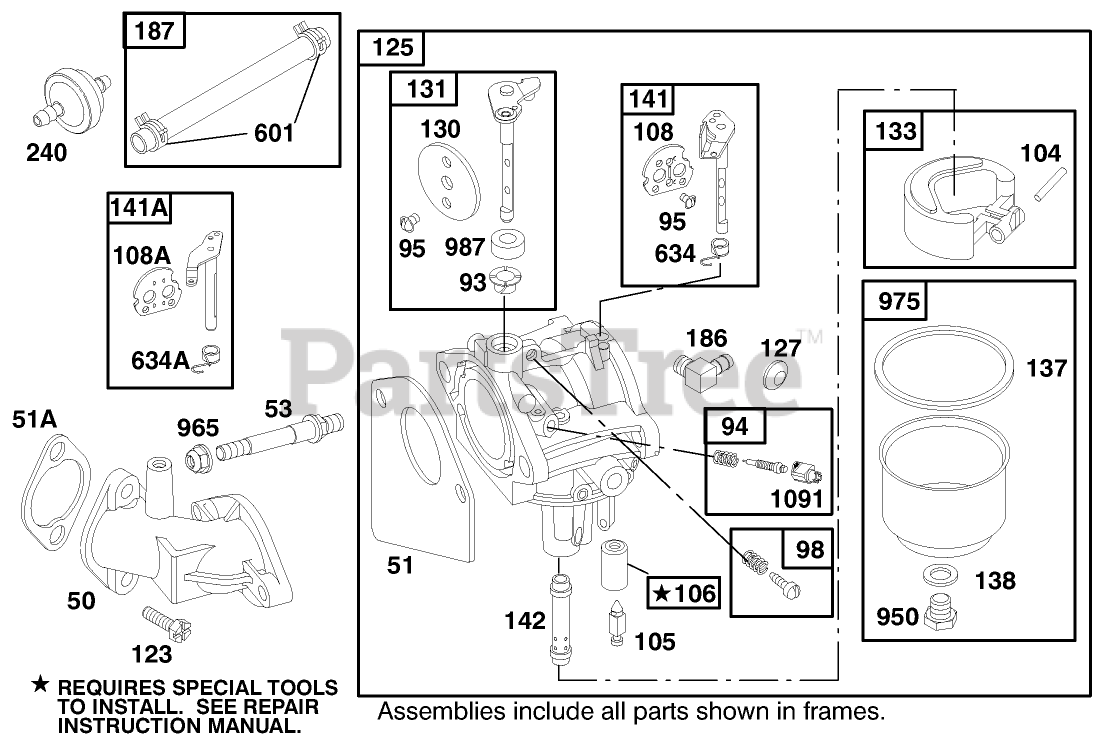

Engine Briggs Stratton Model 28m707-1122-E1 4 Parts Diagram

  • Title

50

Toro 213819

Manifold-Intake

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Gasket Set-Part No. 494241.

$

$

Currently unavailable

51A

Toro 272554

Gasket-Intake

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

$

$

Currently unavailable

53

Toro 94637

Stud-Mounting, Carbureator

$

$

Currently unavailable

93

Toro 281346

Bushing-Throttle

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

94

Toro 498030

Idle Mixture Kit

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

98

Toro 495800

Idle Speed Kit

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

108

Toro 224667

Valve-Choke

$

$

Currently unavailable

108A

Toro 224540

Valve-Choke

$

$

Currently unavailable

123

Toro 94913

Screw-Torx Hex

$

$

Currently unavailable

125

Toro 498027

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 499220

$

$

Not available

130

Toro 224539

Valve-ThroWe

$

$

Currently unavailable

131

Toro 494379

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No. 494385.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

141

Toro 495097

Choke Shaft Kit

$

$

Currently unavailable

141A

Toro 495931

Choke Shaft Kit

$

$

Currently unavailable

142

Toro 497566

Nozzle-Carburetor

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

Toro 497567

Nozzle-Carburetor (High Altitude)

$

$

Currently unavailable

186

Toro 493496

Connector-Fuel

$

$

Currently unavailable

187

Toro 298049

Line-Fuel

$

$

Currently unavailable

240

Toro 394358

Filter-Fuel

$

$

Currently unavailable

601

Toro 93053

Clamp-Hose

$

$

Currently unavailable

618

Toro 262803

Spring-Choke

$

$

Currently unavailable

634

Toro 494453

Seal-Choke Shaft

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

634A

Toro 494455

Seal-Choke Shaft

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

950

Toro 94642

Plug

$

$

Currently unavailable

965

Toro 94010

Nut

$

$

Currently unavailable

975

Toro 494378

Bowl-Float

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Kit-Part No. 499220

$

$

Currently unavailable

1091

Toro 281364

Cap-Limiter

$

$

Currently unavailable
