71209 (13-32 XLE) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 28M707-1122-E1 Parts Diagram

Lawn Tractor

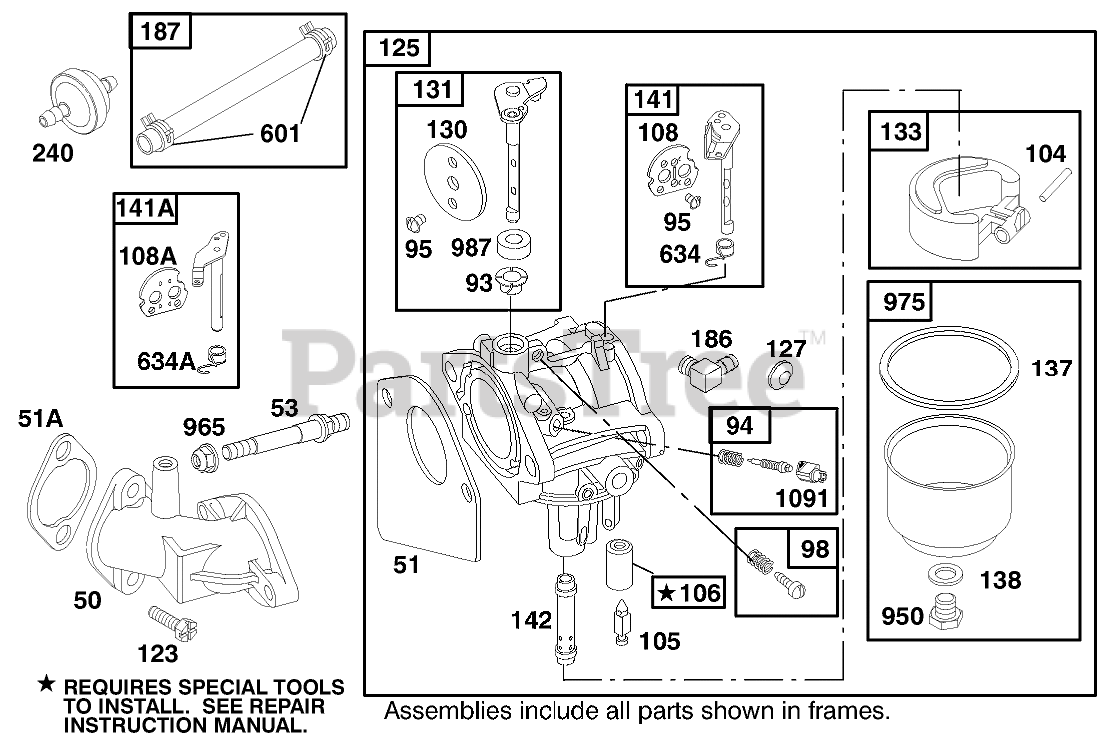

ENGINE BRIGGS & STRATTON MODEL 28M707-1122-E1 Parts Diagram

  • Title

50

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$

$

Not available

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Kit-Part No. 499220.

$4.99

$

In Stock, Qty 6

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

In Stock, Qty 6

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539.

$5.99

$

In Stock, Qty 12

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Gasket Set-Part No. 494241.

$5.99

$

In Stock, Qty 12

0

53

Briggs & Stratton 94637

Stud-Mounting, Carbureator
(Superseded to 690227)

$8.49

$

In Stock, only 2 left!

0

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Included in Carburetor Kit-Part No. 499220.

$9.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Idle Mixture Kit
(Superseded to 794176)

$23.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Kit-Part No. 499220.

$4.49

$

In Stock, Qty 12

0

98

Briggs & Stratton 495800

Idle Speed Kit

$11.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Kit-Part No. 499220.

$5.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Kit-Part No. 499220.

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Kit-Part No. 499220.

$6.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 224667

Valve-Choke

$9.49

$

In Stock, only 1 left!

0

108A

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

$9.49

$

Usually ships in 2-12 days

0

123

Briggs & Stratton 94913

Screw-Torx Hex
(Superseded to 690953)

$

$

Not available

125

Briggs & Stratton 498027

Carburetor
(Superseded to 799728)

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 499220.

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

$10.99

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$42.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$15.99

$

In Stock, Qty 9

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Kit-Part No. 499220.

$4.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$4.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Part No. 494385.

$5.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Kit-Part No. 499220.

$5.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 495097

Choke Shaft Kit
(Superseded to 790905)

$50.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Choke Shaft Kit
(Superseded to 790902)

$36.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 497566

Nozzle-Carburetor
(Superseded to 691425)

Note: Included in Carburetor Kit-Part No. 499220.

$32.99

$

In Stock, only 1 left!

0

Briggs & Stratton 497567

Nozzle-Carburetor (High Altitude)

$25.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 493496

Connector-Fuel
(Superseded to 692317)

$7.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 298049

Line-Fuel
(Superseded to 791766)

$8.49

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

618

Briggs & Stratton 262803

Spring-Choke

$

$

Not available

634

Briggs & Stratton 494453

Seal-Choke Shaft
(Superseded to 690801)

Note: Included in Carburetor Kit-Part No. 499220.

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 494455

Seal-Choke Shaft
(Superseded to 690802)

Note: Included in Carburetor Kit-Part No. 499220.

$9.49

$

Usually ships in 2-12 days

0

950

Briggs & Stratton 94642

Plug
(Superseded to 691657)

$8.49

$

In Stock, only 3 left!

0

965

Briggs & Stratton 94010

Nut
(Superseded to 690958)

$3.49

$

In Stock, Qty 8

0

975

Briggs & Stratton 494378

Bowl-Float
(Superseded to 495933)

$

$

Not available

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Part No. 499220.

$5.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 281364

Cap-Limiter
(Superseded to 691333)

$10.99

$

In Stock, only 1 left!

0
