71212 (17-44 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

Lawn Tractor

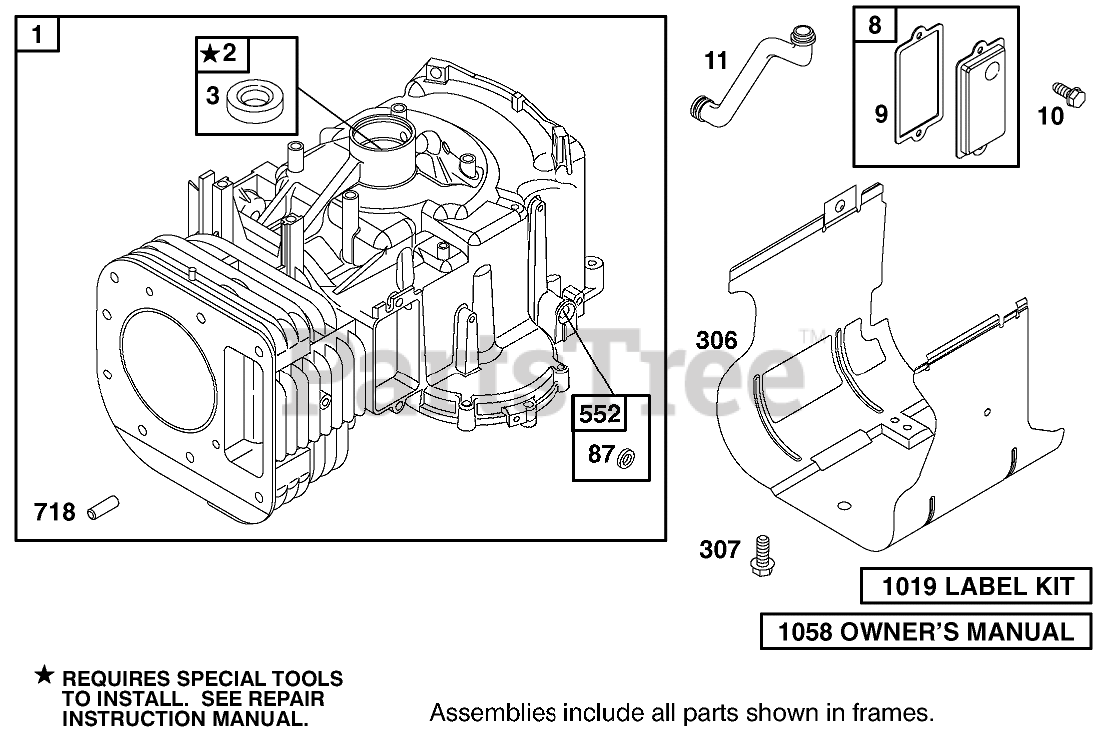

ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

  • Title

1

Briggs & Stratton 690156

Cylinder Assembly

$496.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$19.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 18

0

8

Briggs & Stratton 495735

Breather ASM

$49.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 15

0

10

Briggs & Stratton 691666

Screw-Hex.

$4.49

$

In Stock, only 3 left!

0

11

Briggs & Stratton 281246

Tube-Breather
(Superseded to 691328)

$16.99

$

In Stock, Qty 6

0

87

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 7

0

306

Briggs & Stratton 225020

Shoulder Bolt
(Superseded to 698454)

$

$

Not available

307

Briggs & Stratton 94930

Screw-Hex
(Superseded to 691003)

$3.99

$

In Stock, only 2 left!

0

552

Briggs & Stratton 491986

Bushing-Crank, Governor

$

$

Not available

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$4.49

$

In Stock, Qty 8

0

718

Briggs & Stratton 230192

Pin-Dowel
(Superseded to 690959)

$7.49

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 690180

Kit-Label

$

$

Not available

1058

Toro 273683

Owner-s Manual

$

$

Currently unavailable
