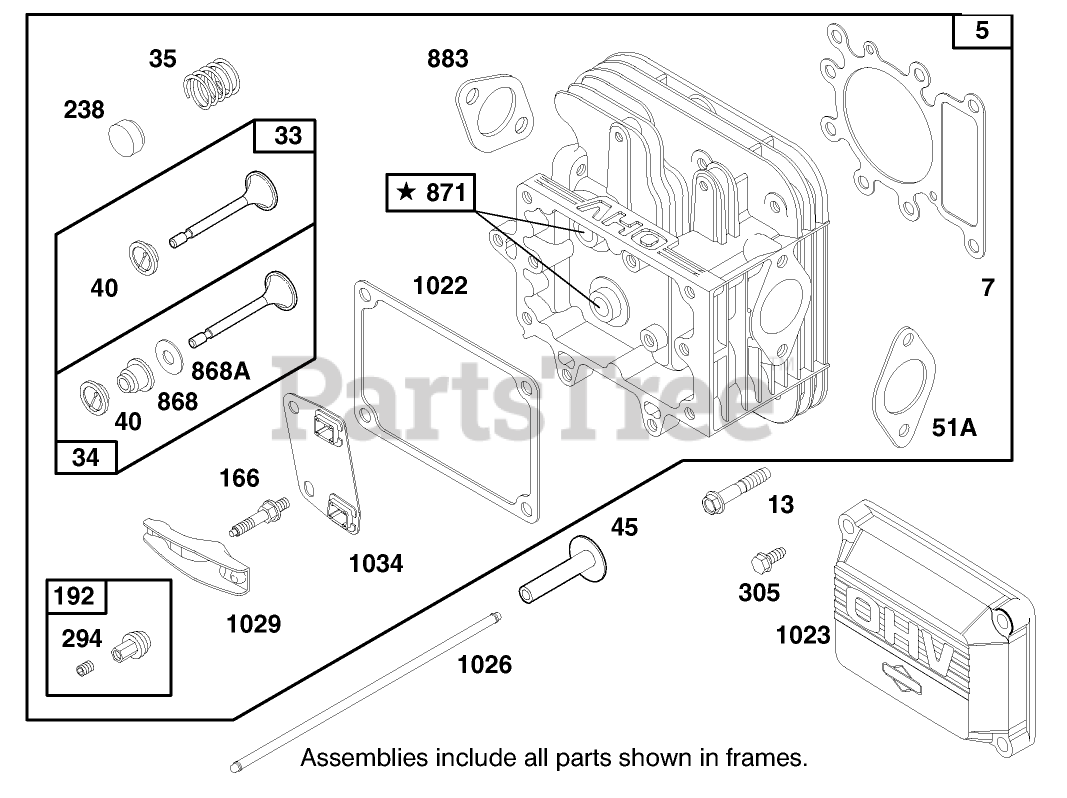

71215 (14-38 HXL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) Engine Briggs Stratton Model 28n707-0631-A1 2 Parts Diagram

Lawn Tractor

Engine Briggs Stratton Model 28n707-0631-A1 2 Parts Diagram

  • Title

5

Toro 495858

Head-Cylinder

$

$

Currently unavailable

7

Toro 273280

Gasket-Head, Cylinder

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

7

Toro 273280

Gasket-Head, Cylinder

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

13

Toro 94728

Screw-Cylinder Head

$

$

Currently unavailable

33

Toro 495856

Valve-Exhaust

$

$

Currently unavailable

34

Toro 495857

Valve-Intake

$

$

Currently unavailable

35

Toro 262811

Spring-Valve

$

$

Currently unavailable

40

Toro 224641

Retainer-Valve

$

$

Currently unavailable

45

Toro 262411

Tappet-Valve

$

$

Currently unavailable

51A

Toro 272569

Gasket-Intake

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

51A

Toro 272569

Gasket-Intake

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

166

Toro 94555

Stud-Rocker Arm

$

$

Currently unavailable

192

Toro 492160

Adjuster-Valve

$

$

Currently unavailable

238

Toro 262836

Cap-Valve

$

$

Currently unavailable

294

Toro 810068

Screw-Set

$

$

Currently unavailable

305

Toro 94786

Screw-Sem

$

$

Currently unavailable

868

Toro 494435

Seal-Valve

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

868

Toro 494435

Seal-Valve

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

868

Toro 272610

Seal Valve

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

868

Toro 272610

Seal Valve

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

871

Toro 262835

Bushing-Guide (Intake and Exhaust)

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

102

Toro 272475

Gasket-Cover, Rocker

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

102

Toro 272475

Gasket-Cover, Rocker

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

1023

Toro 224552

Cover-Rocker

$

$

Currently unavailable

1026

Toro 494432

Guide-Push Rod

$

$

Currently unavailable

1029

Toro 224554

Arm-Rocker

$

$

Currently unavailable

1034

Toro 494432

Guide-Push Rod

$

$

Currently unavailable
