71218 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) Engine Briggs Stratton Model 28q777-0668-A Parts Diagram

Lawn Tractor

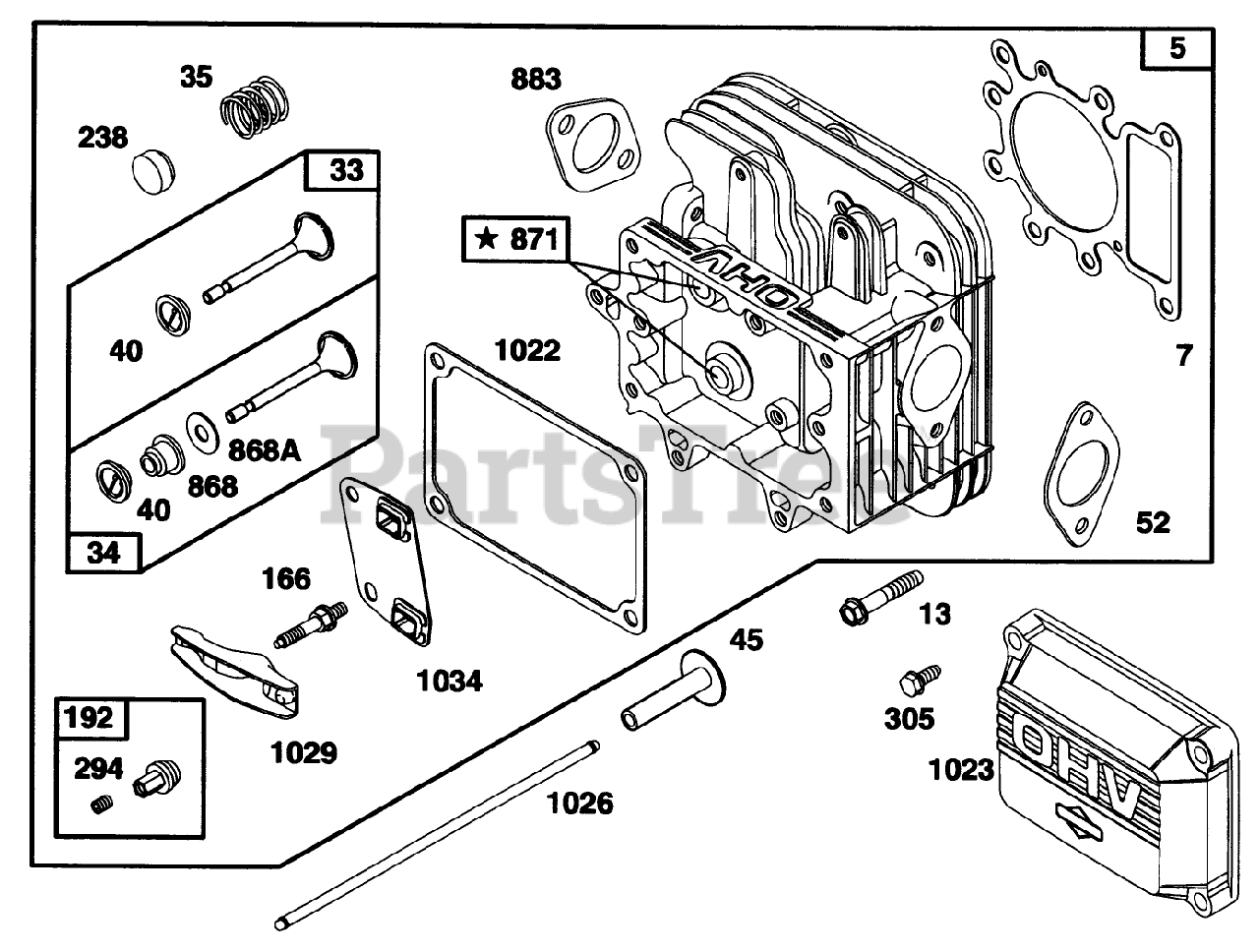

Engine Briggs Stratton Model 28q777-0668-A Parts Diagram

  • Title

5

Toro 495858

Head-Cylinder

$

$

Currently unavailable

7

Toro 272614

Head

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

7

Toro 272614

Head

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

13

Toro 94728

Screw-Cylinder Head

$

$

Currently unavailable

33

Toro 495856

Valve-Exhaust

$

$

Currently unavailable

34

Toro 495857

Valve-Intake

$

$

Currently unavailable

35

Toro 262811

Spring-Valve

$

$

Currently unavailable

40

Toro 224641

Retainer-Valve

$

$

Currently unavailable

45

Toro 262411

Tappet-Valve

$

$

Currently unavailable

52

Toro 272569

Gasket-Intake

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

52

Toro 272569

Gasket-Intake

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

166

Toro 94555

Stud-Rocker Arm

$

$

Currently unavailable

192

Toro 492160

Adjuster-Valve

$

$

Currently unavailable

238

Toro 262836

Cap-Valve

$

$

Currently unavailable

294

Toro 810068

Screw-Set

$

$

Currently unavailable

305

Toro 94682

Screw-Hex.

$

$

Currently unavailable

868

Toro 494435

Seal-Valve

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

868

Toro 494435

Seal-Valve

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

868A

Toro 272610

Seal Valve

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

868A

Toro 272610

Seal Valve

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

871

Toro 262835

Bushing-Guide (Intake and Exhaust)

Note: Required Special Tools To Install. See Repair Instruction Manual.

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

1023

Toro 214314

Cover-Rocker
(Superseded to 146443)

$

$

Not available

1026

Toro 494432

Guide-Push Rod

$

$

Currently unavailable

Toro 495136

Push Rod (Exhaust)

$

$

Currently unavailable

1029

Toro 224554

Arm-Rocker

$

$

Currently unavailable

1034

Toro 494432

Guide-Push Rod

$

$

Currently unavailable
