71218 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

Lawn Tractor

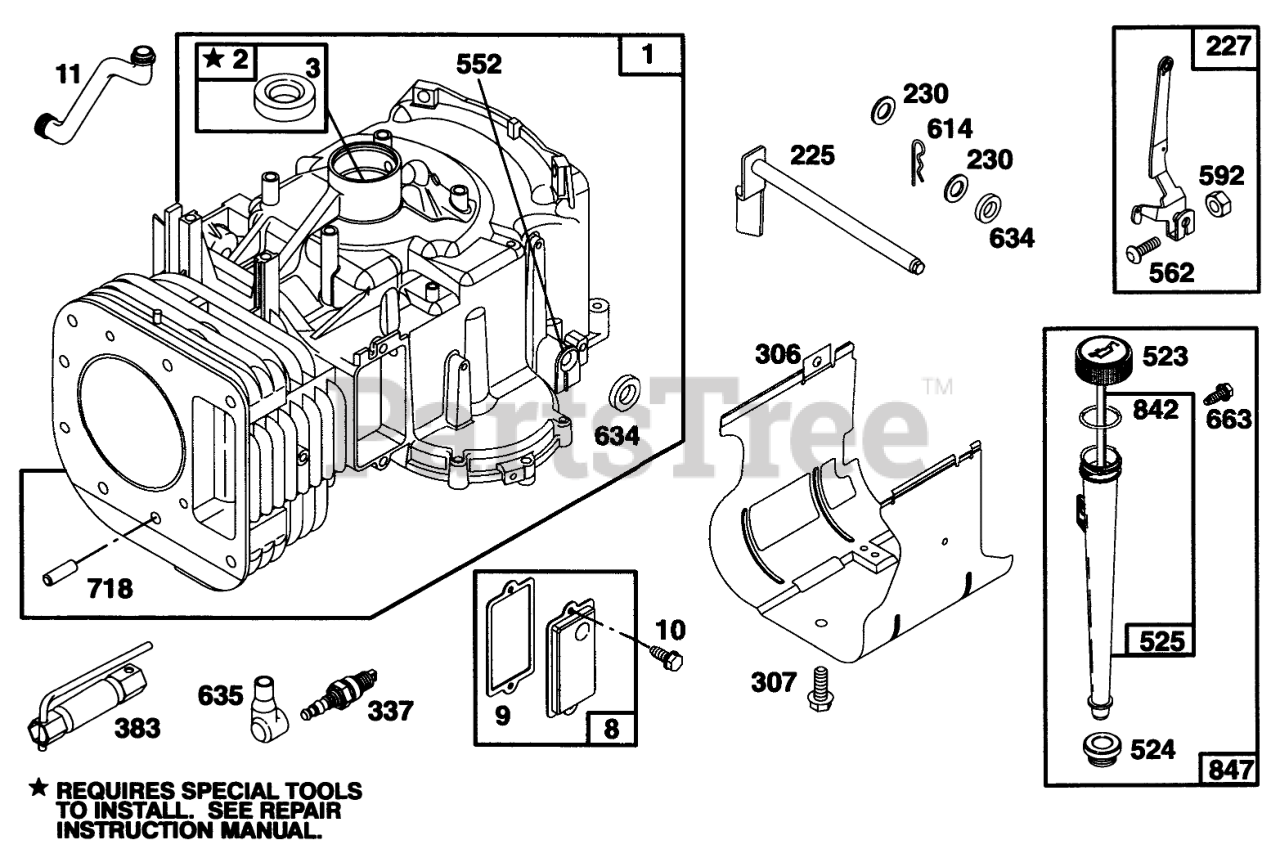

ENGINE BRIGGS & STRATTON MODEL 28Q777-0668-A1 Parts Diagram

  • Title

1

Briggs & Stratton 496412

Cylinder Assembly

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

Note: Required Special Tools To Install. See Repair Instruction Manual.

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 495993.

$6.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495735

Breather ASM

$63.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 495993.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 281246

Tube-Breather
(Superseded to 691328)

$15.99

$

In Stock, only 1 left!

0

225

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 4 left!

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, Qty 6

0

230

Briggs & Stratton 94742

Washer-Flat
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 225020

Shoulder Bolt
(Superseded to 698454)

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94623

Screw-Self Tap
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

332A

Briggs & Stratton 94314

Nut
(Superseded to 691105)

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 491055

Plug-Spark
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

523

Briggs & Stratton 495230

Dipstick
(Superseded to 692014)

$25.99

$

In Stock, only 1 left!

0

524

Toro 66838

Seal-Fill Tube

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

525

Briggs & Stratton 496113

Tube-Oil Fill
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 231597

Nut-Hex.
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

634

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 495993.

$7.99

$

In Stock, Qty 11

0

635

Briggs & Stratton 280872

Boot-Spark Plug
(Superseded to 691909)

$4.99

$

In Stock, Qty 10

0

663

Briggs & Stratton 94073

Screw-Sem
(Superseded to 691002)

$8.49

$

In Stock, only 1 left!

0

718

Briggs & Stratton 230192

Pin-Dowel
(Superseded to 690959)

$6.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 495993.

$4.49

$

In Stock, only 2 left!

0

847

Briggs & Stratton 496415

Fill Group-Oil
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0
