71218 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) Frame Assembly Parts Diagram

Lawn Tractor

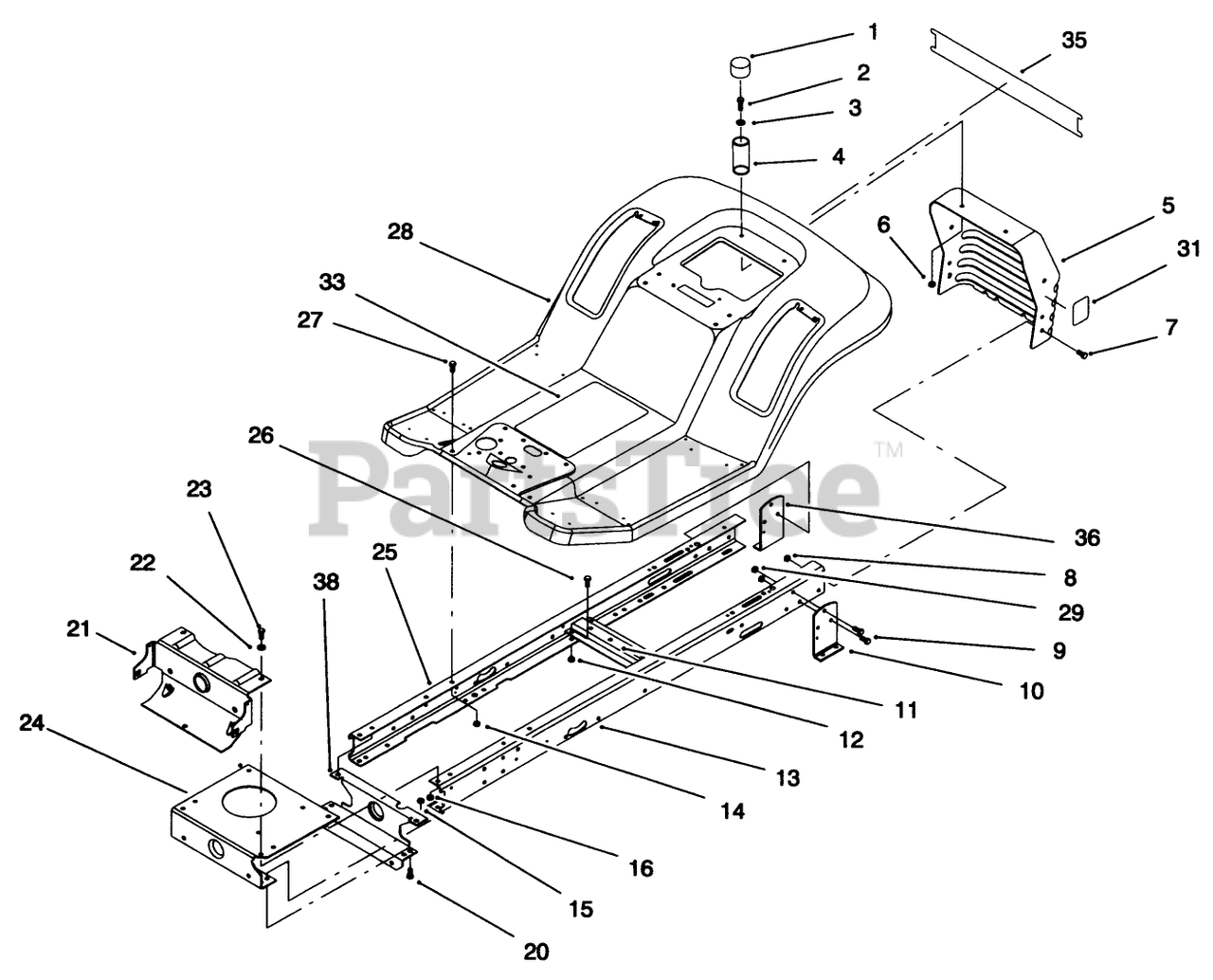

Frame Assembly Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 2 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

4

Toro 88-6220

SPRING-COMPRESSION

$37.99

$

Usually ships in 3-6 days

0

5

Toro 88-3940

See Supercession: 99-2957-03
(Superseded to 99-2957-03)

$201.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 93-3857

See Supercession: 93-3857-03
(Superseded to 93-3857-03)

$

$

Not available

11

Toro 88-4620

See Supercession: 88-4620-03
(Superseded to 88-4620-03)

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 94-1999

See Supercession: 99-2958-03
(Superseded to 99-2958-03)

$128.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 93-3834

See Supercession: 98-3576-03
(Superseded to 98-3576-03)

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 88-4630

See Supercession: 88-4630-03
(Superseded to 88-4630-03)

$

$

Not available

25

Toro 94-1998

See Supercession: 99-2959-03
(Superseded to 99-2959-03)

$128.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 88-3840

See Supercession: 88-3840-01
(Superseded to 88-3840-01)

$839.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 93-6678

DISCONTINUED

$

$

Not available

33

Toro 93-6676

DECAL-INSTRUCTION

$

$

Not available

35

Toro 94-3530

DISCONTINUED

$

$

Not available

36

Toro 93-3856

See Supercession: 93-3856-03
(Superseded to 93-3856-03)

$

$

Not available

38

Toro 93-3831

See Supercession: 93-3831-03
(Superseded to 93-3831-03)

$

$

Not available
