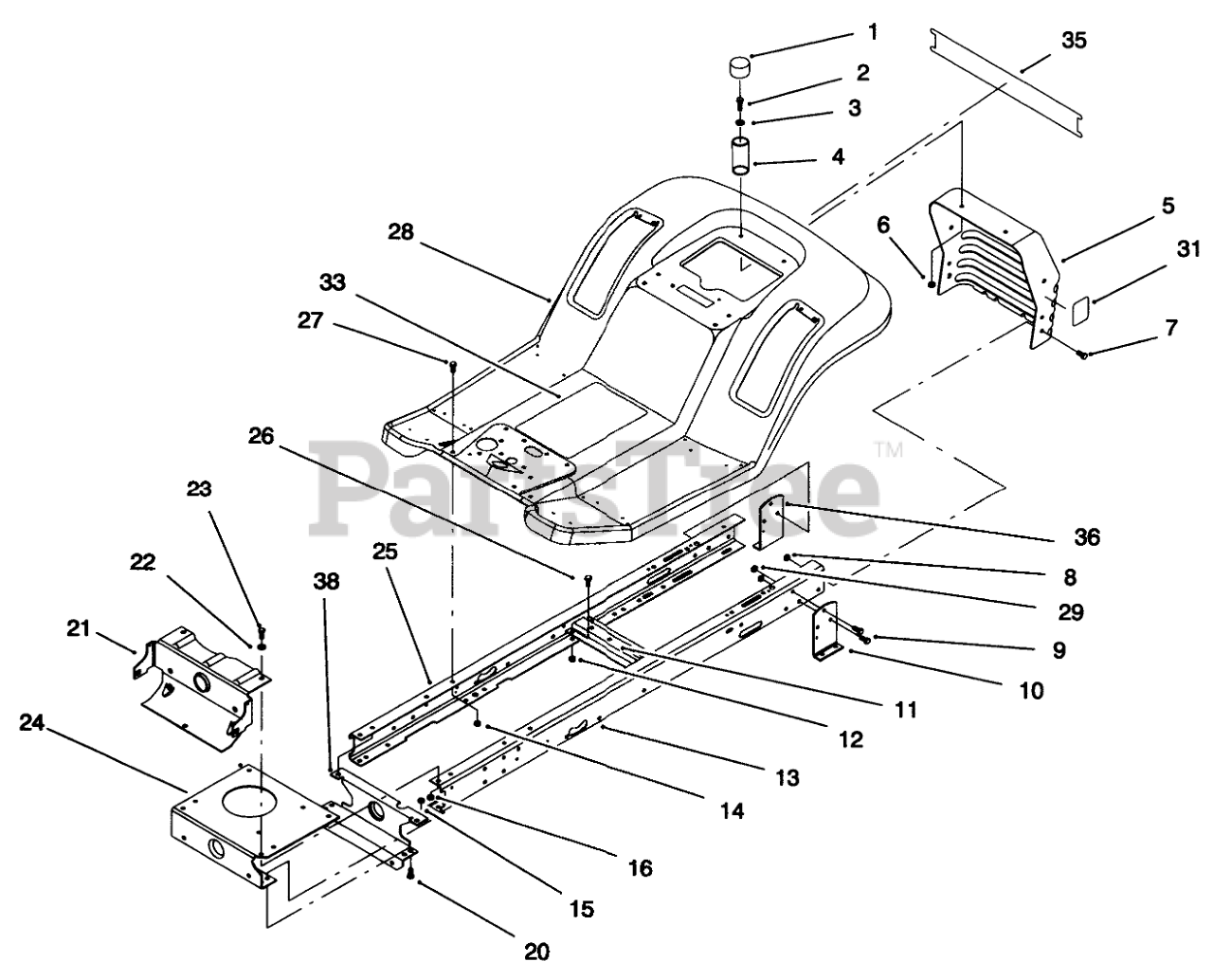

71218 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-6220

SPRING-COMPRESSION

$28.99

$

Usually ships in 3-6 days

0

5

Toro 88-3940

Panel-Rear Hitch
(Superseded to 99-2957-03)

$157.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 93-3857

Bracket-Trans. Mtg. L.H.
(Superseded to 93-3857-03)

$20.99

$

Usually ships in 3-6 days

0

11

Toro 88-4620

Bracket-Idle Pivot
(Superseded to 88-4620-03)

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 94-1999

Frame-Rail L.H.
(Superseded to 99-2958-03)

$103.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 93-3834

Support-Front Axle
(Superseded to 98-3576-03)

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 88-4630

Plate-Engine Mount
(Superseded to 88-4630-03)

$70.99

$

Usually ships in 3-6 days

0

25

Toro 94-1998

Frame-Rail R.H.
(Superseded to 99-2959-03)

$103.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 88-3840

Body-Rear
(Superseded to 88-3840-01)

$657.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 93-6678

DECAL - DUMP VALVE

$

$

Not available

33

Toro 93-6676

DECAL-INSTRUCTION

$30.99

$

Usually ships in 3-6 days

0

35

Toro 94-3530

DECAL-REAR BODY 1644 HXL

$

$

Not available

36

Toro 93-3856

Bracket-Trans. Mtg. R.H.
(Superseded to 93-3856-03)

$

$

Not available

38

Toro 93-3831

Support-Rear
(Superseded to 93-3831-03)

$

$

Not available
