71218 (16-44 HXL) - Toro Lawn Tractor (SN: 069000001 - 069999999) (1996) SPEED CONTROL ASSEMBLY Parts Diagram

Lawn Tractor

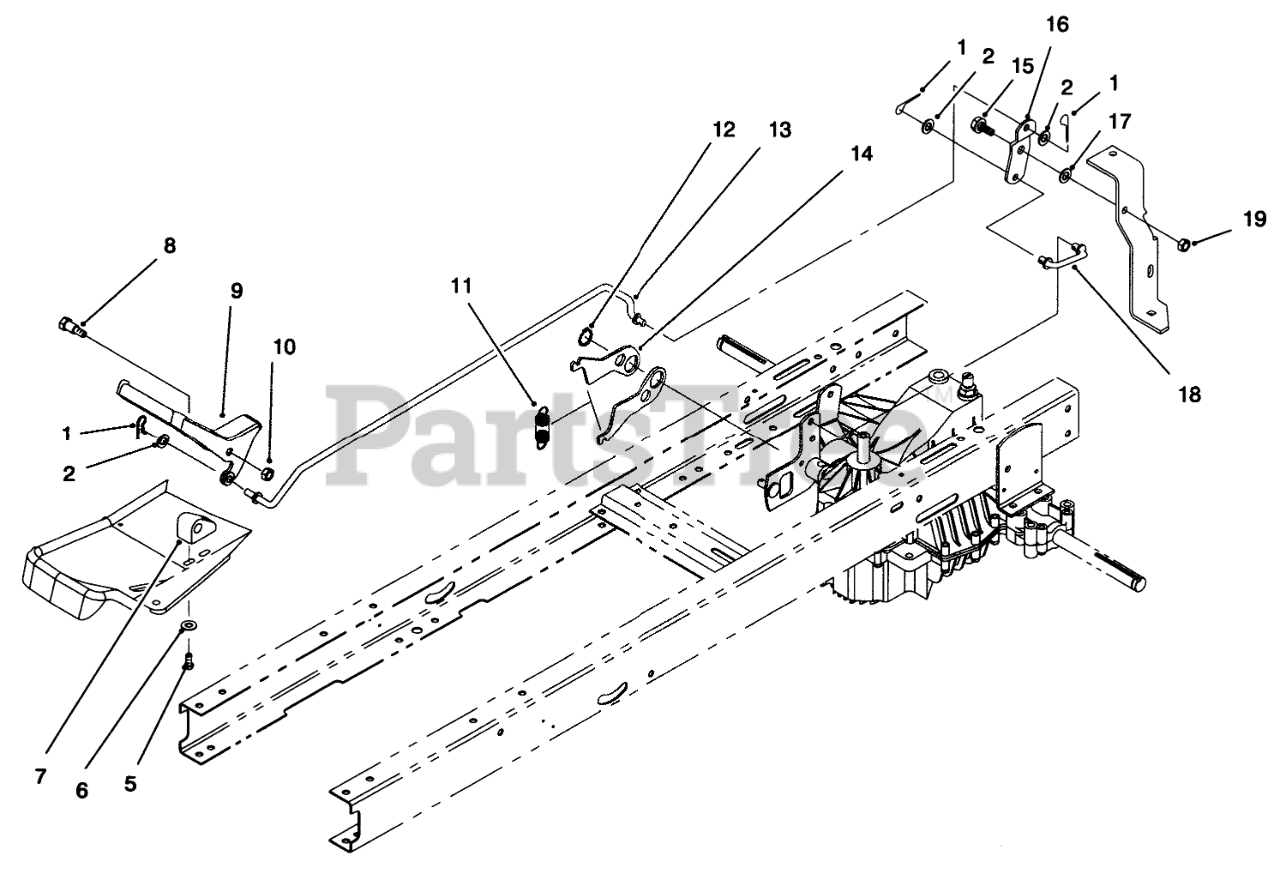

SPEED CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 88-4690

BLOCK-PIVOT

$14.99

$

In Stock, only 3 left!

0

8

Toro 23-0310

SCREW-SHOULDER, HH

$24.99

$

Usually ships in 3-6 days

0

9

Toro 93-3812

PEDAL SPEED CONTROL

$33.99

$

Usually ships in 3-6 days

0

10

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

11

Toro 92-7305

SPRING-EXTENSION

$10.99

$

In Stock, only 1 left!

0

12

Toro 32151-83

RING-SNAP

$0.99

$

Usually ships in 3-6 days

0

13

Toro 93-3877

ROD, SPEED CONTROL

$

$

Not available

14

Toro 88-5610

NEUTRAL RETURN LEVER

$11.99

$

Usually ships in 3-6 days

0

15

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 2 left!

0

16

Toro 93-3875

BELLCRANK

$9.49

$

Usually ships in 3-6 days

0

17

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 9

0

18

Toro 93-3874

LINK-SPEED/DIRECT CONTROL

$

$

Not available

19

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0
