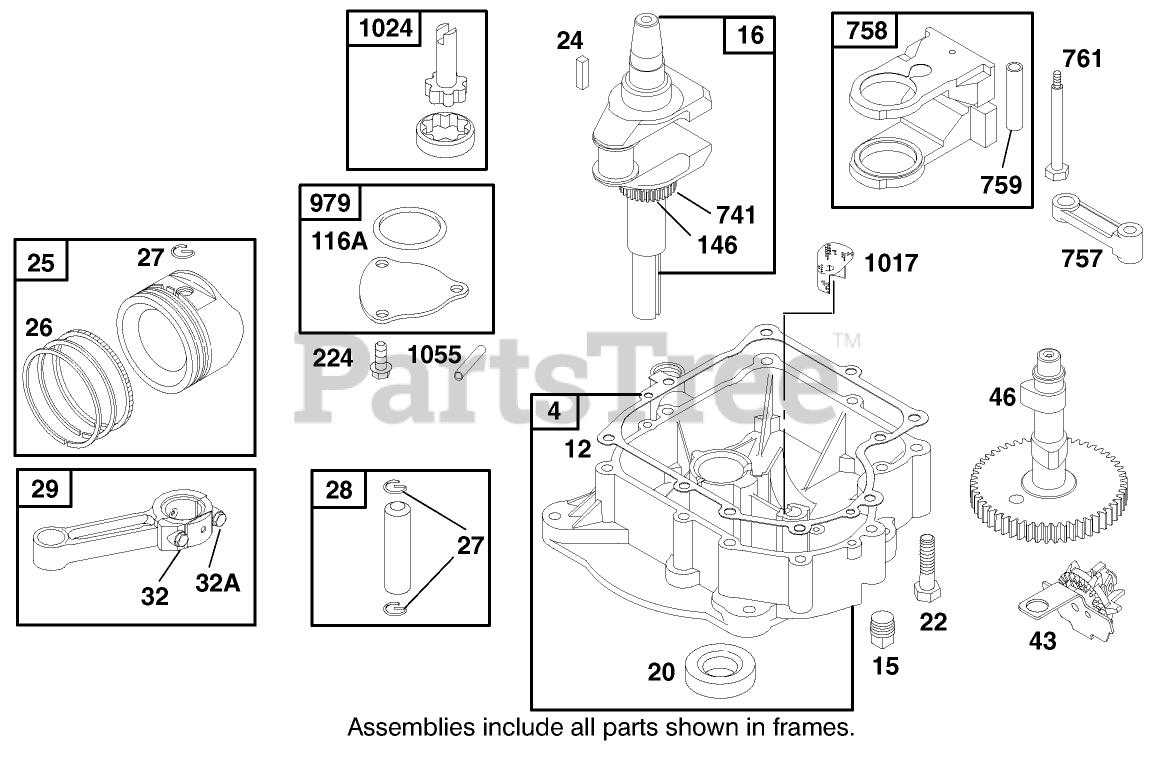

71219 (14-38 HXL) - Toro Lawn Tractor (SN: 089000001 - 089999999) (1998) Engine Briggs Stratton Model 28n777-1174-E1 3 Parts Diagram

Lawn Tractor

Engine Briggs Stratton Model 28n777-1174-E1 3 Parts Diagram

  • Title

4

Toro 496742

Base-Engine

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

16

Toro 498971

Crankshaft

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

22

Toro 94624

Screw-Sem

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 495860

Piston Assembly (Standard)

$

$

Currently unavailable

Toro 495977

Piston Assy. (.010" O.S.)

$

$

Currently unavailable

Toro 495978

Piston Assy. (.020" O.S.)

$

$

Currently unavailable

Toro 495979

Piston Assy. (.030" O.S.)

$

$

Currently unavailable

26

Toro 495854

Ring Set (Std.)

$

$

Currently unavailable

Toro 495852

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 495851

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 495855

Rind Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 263129

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 498319

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 498320

Pin-Piston (.005 O.S.)

$

$

Currently unavailable

29

Toro 494504

Rod-Connecting

$

$

Currently unavailable

Toro 495490

Rod-Conn. (.020" U.S.)

$

$

Currently unavailable

32

Toro 94695

Screw-Conn. Rod (1 7/8" Long)

$

$

Currently unavailable

32A

Toro 94648

Screw-Conn. Rod (1 5/8" Long)

$

$

Currently unavailable

43

Toro 490815

Gear-Governor

$

$

Currently unavailable

46

Toro 496884

Gear-Cam

$

$

Currently unavailable

116A

Toro 281402

O-Ring

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

146

Toro 94196

Key-Timing

$

$

Currently unavailable

224

Toro 94905

Screw-Torx Hex.

$

$

Currently unavailable

741

Toro 262932

Gear-Elming

$

$

Currently unavailable

757

Toro 213998

Link-Counteweight

$

$

Currently unavailable

758

Toro 399891

Counterweight

$

$

Currently unavailable

759

Toro 230787

Pin-Counterweight

$

$

Currently unavailable

761

Toro 94593

Screw-HH

$

$

Currently unavailable

979

Toro 496745

Cover-Pump

$

$

Currently unavailable

1017

Toro 225026

Shoulder Bolt

$

$

Currently unavailable

1024

Toro 493884

Pump-Oil

$

$

Currently unavailable

1055

Toro 231931

Tube-Oil Pump

$

$

Currently unavailable
