71220 (14-38 XL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) 38" DECK COMPONENTS Parts Diagram

Lawn Tractor

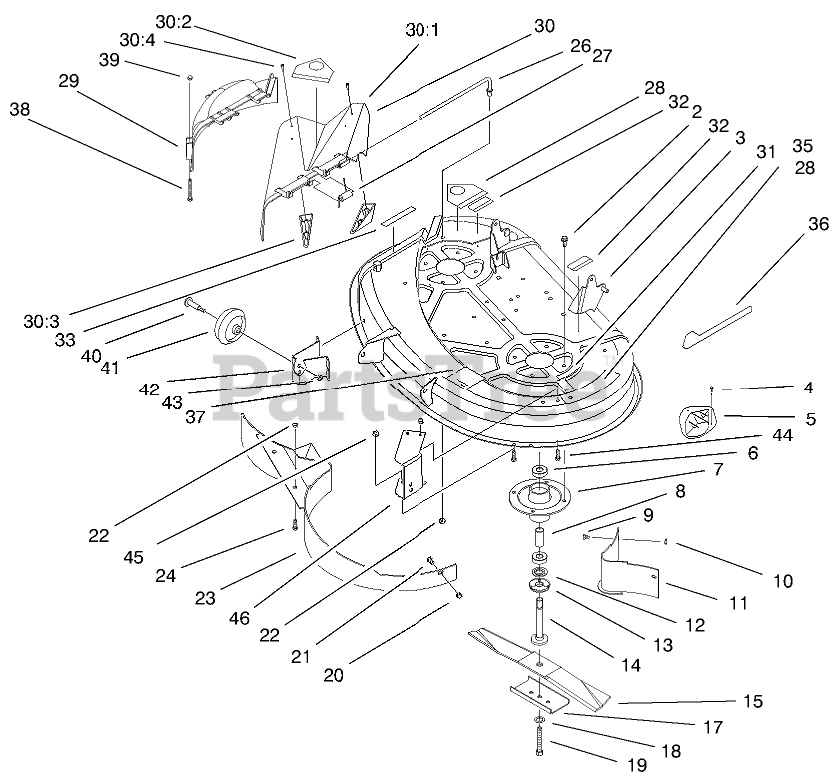

38" DECK COMPONENTS Parts Diagram

  • Title

2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 99-5846

Deck Asm-service (Only On: 71198)

$1512.99

$

Usually ships in 3-6 days

0

3

Toro 99-5847

Deck ASM-Service,Intl (Only On: 71220)

$

$

Not available

4

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 14

0

5

Toro 76-2160

PLATE-KICKER

$17.99

$

Usually ships in 3-6 days

0

6

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

7

Toro 88-4510

HOUSING-SPINDLE

$99.99

$

In Stock, Qty 13

0

8

Toro 62-3661

SPACER

$17.99

$

In Stock, Qty 20+

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-1640-03

BAFFLE ASM

$76.99

$

Usually ships in 3-6 days

0

12

Toro 80-4380

SPACER

$7.49

$

In Stock, Qty 18

0

13

Toro 80-4360

SHIELD-BEARING

$21.99

$

In Stock, Qty 16

0

14

Toro 80-4341

SHAFT-SPINDLE

$56.99

$

In Stock, only 2 left!

0

15

Toro 79-3061

Blade
(Superseded to 14-7799)

$67.99

$

In Stock, only 2 left!

0

17

Toro 80-0510-03

STIFFENER-BLADE

$18.99

$

In Stock, Qty 5

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 14

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 79-1600-03

BAFFLE ASM

$120.99

$

Usually ships in 3-6 days

0

24

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 9

0

26

Toro 95-1661

ROD-PIVOT

$22.99

$

In Stock, only 3 left!

0

27

Toro 57-6950

SPRING

$29.99

$

In Stock, only 2 left!

0

28

Toro 93-7010

Decal-Danger (Only On: 71220)

$13.99

$

Usually ships in 3-6 days

0

28

Toro 93-1122

Decal-Danger (Only On: 71198)

$10.99

$

In Stock, Qty 10

0

29

Toro 88-4430

COVER-RECYCLER

$

$

Not available

30

Toro 93-0317

Deflector ASM-38" (Only On: 71198)

$91.99

$

In Stock, only 2 left!

0

30

Toro 93-7695

ASM-38" Deflector, Intl (Only On: 71220)

$103.99

$

In Stock, only 1 left!

0

30:1

Toro 88-4550

38" Deflector-Deck (Only On: 71198)
(Superseded to 93-0317)

$91.99

$

In Stock, only 2 left!

0

30:1

Toro 93-8495

38" Deflector (Only On: 71220)
(Superseded to 93-7695)

$103.99

$

In Stock, only 1 left!

0

30:2

Toro 93-1122

Decal-Danger (Only On: 71198)

$10.99

$

In Stock, Qty 10

0

30:2

Toro 93-7010

Decal-Danger (Only On: 71220)

$13.99

$

Usually ships in 3-6 days

0

30:3

Toro 93-7696

Kicker-Ce (Only On: 71220)

$15.99

$

Usually ships in 3-6 days

0

30:4

Toro 93-0231

Screw-PPH (Only On: 71220)

$0.99

$

In Stock, Qty 10

0

31

Toro 93-6677

Decal-Shield Danger (Only On: 71220)

$

$

Not available

31

Toro 68-3660

Decal-, Shield Danger (Only On: 71198)

$14.99

$

In Stock, only 1 left!

0

32

Toro 55-4300

Decal (Only On: 71198)

$15.99

$

Usually ships in 3-6 days

0

32

Toro 93-6674

Decal-Warning (Only On: 71220)

$7.99

$

Usually ships in 3-6 days

0

33

Toro 68-3650

Decal-Deflector Danger (Only On: 71198)

$18.99

$

Usually ships in 3-6 days

0

33

Toro 93-7009

Decal-Deflector Danger (Only On: 71220)

$7.99

$

In Stock, Qty 17

0

35

Toro 79-3140

Decal-Danger (Only On: 71198)

$20.99

$

Usually ships in 3-6 days

0

36

Toro 92-9520

DECAL-RECYCLER DECK 38"

$51.99

$

Usually ships in 3-6 days

0

37

Toro 93-6679

DECAL-ROUTING, BELT
(Superseded to 117-0033)

$8.99

$

Usually ships in 3-6 days

0

38

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

39

Toro 32111-7

NUT-CAP

$8.49

$

In Stock, only 2 left!

0

40

Toro 56-6591

Wheel Bolt (Only On: 71220)

$9.49

$

In Stock, only 2 left!

0

41

Toro 701756

Wheel-Gage (Only On: 71220)

$8.99

$

In Stock, Qty 12

0

42

Toro 88-5740-03

RH Whl Deck Brkt (Only On: 71220)

$47.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

Nut-Lock Ni (Only On: 71220)

$2.99

$

In Stock, Qty 20+

0

44

Toro 322-3

Screw-HH (Only On: 71220)

$0.99

$

In Stock, Qty 20+

0

45

Toro 3296-29

Nut-Lock Ni (Only On: 71220)

$2.49

$

In Stock, Qty 20+

0

46

Toro 93-3896-03

Brkt,LH Deckwheel (Only On: 71220)

$72.99

$

Usually ships in 3-6 days

0
