71223 (16-38 XL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 28q777-0690-E1 2 Parts Diagram

Lawn Tractor

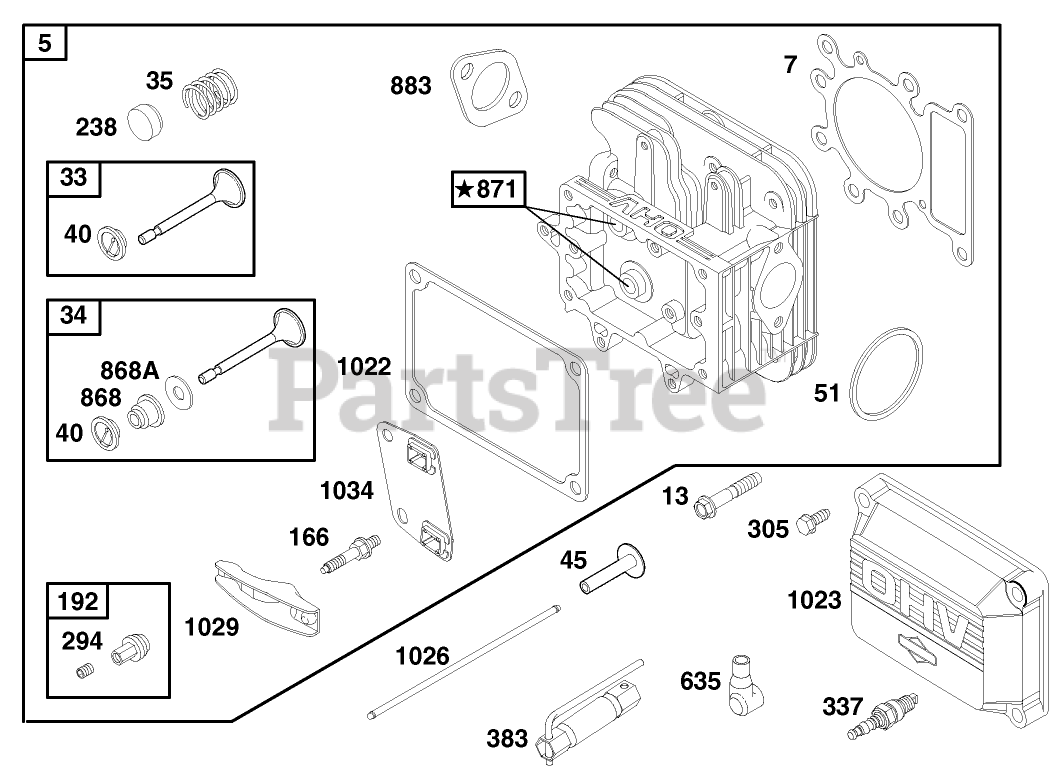

Engine Briggs Stratton Model 28q777-0690-E1 2 Parts Diagram

  • Title

5

Toro 691165

Head-Cylinder

$

$

Currently unavailable

7

Toro 273280

Gasket-Head, Cylinder

Note: Included in Carburetor Kit-Part No. 499233.

$

$

Currently unavailable

7

Toro 273280

Gasket-Head, Cylinder

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

13

Toro 94728

Screw-Cylinder Head

$

$

Currently unavailable

33

Toro 495856

Valve-Exhaust

$

$

Currently unavailable

34

Toro 495857

Valve-Intake

$

$

Currently unavailable

35

Toro 262811

Spring-Valve

$

$

Currently unavailable

40

Toro 224641

Retainer-Valve

$

$

Currently unavailable

45

Toro 690564

Tappet-Valve

$

$

Currently unavailable

51

Toro 692138

Seal-O Ring

$

$

Currently unavailable

166

Toro 94555

Stud-Rocker Arm

$

$

Currently unavailable

192

Toro 492160

Adjuster-Valve

$

$

Currently unavailable

238

Toro 262836

Cap-Valve

$

$

Currently unavailable

294

Toro 810104

INSTRUCTION SHEET

$3.23

$

Usually ships in 3-6 days

0

305

Toro 94682

Screw-Hex.

$

$

Currently unavailable

337

Toro 491055

Plug-Spark

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

635

Toro 280872

Boot-Spark Plug

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Carburetor Kit-Part No. 499233.

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

868A

Toro 272610

Seal Valve

$

$

Currently unavailable

871

Toro 262835

Bushing-Guide (Intake and Exhaust)

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

883

Toro 272293

Exhaust Gasket

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Valve Overhaul Kit-Part No. 495992.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

1023

Toro 214314

Cover-Rocker
(Superseded to 146443)

$

$

Not available

1026

Toro 484432

Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)

$

$

Currently unavailable

1029

Toro 224554

Arm-Rocker

$

$

Currently unavailable

1034

Toro 495248

Guide-Push Rod

$

$

Currently unavailable
