71223 (16-38 XL) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) GOVERNOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

Lawn Tractor

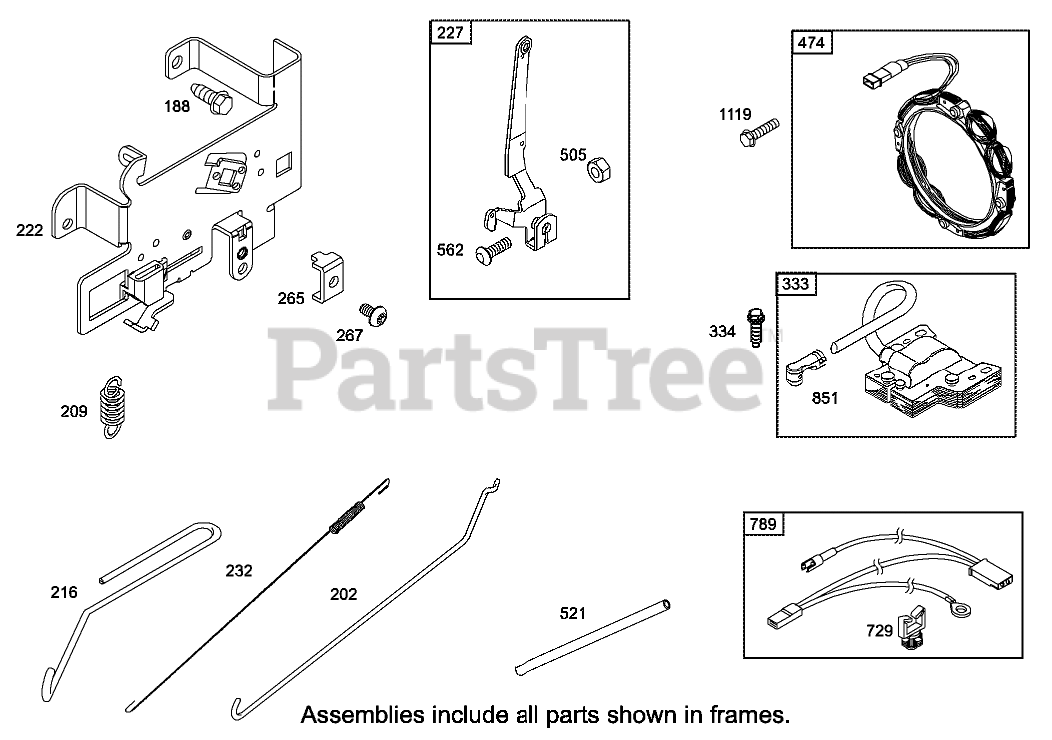

GOVERNOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

  • Title

188

Briggs & Stratton 691693

Screw

$3.99

$

In Stock, only 2 left!

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

$10.99

$

In Stock, Qty 5

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

$5.49

$

In Stock, Qty 6

0

216

Briggs & Stratton 691840

Link-Choke

$9.99

$

In Stock, Qty 6

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$40.99

$

In Stock, Qty 8

0

227

Briggs & Stratton 691374

Lever-Control, Governor

$28.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

Spring-Link, Governor

$12.99

$

In Stock, Qty 16

0

265

Briggs & Stratton 691024

Clamp-Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 695134

Screw
(Superseded to 792629)

$3.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

$3.49

$

In Stock, Qty 20+

0

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

$101.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

Nut

$3.49

$

In Stock, Qty 8

0

521

Briggs & Stratton 690581

Shield-Cable

$

$

Not available

562

Briggs & Stratton 691119

Screw

$4.49

$

In Stock, Qty 16

0

729

Briggs & Stratton 691335

Clip?Wire

$5.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 692037

Wiring-Harness

$39.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1119

Briggs & Stratton 691183

Screw

$3.99

$

Usually ships in 2-12 days

0
