71225 (16-38 HXL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 28q777-0690-E1 3 Parts Diagram

Lawn Tractor

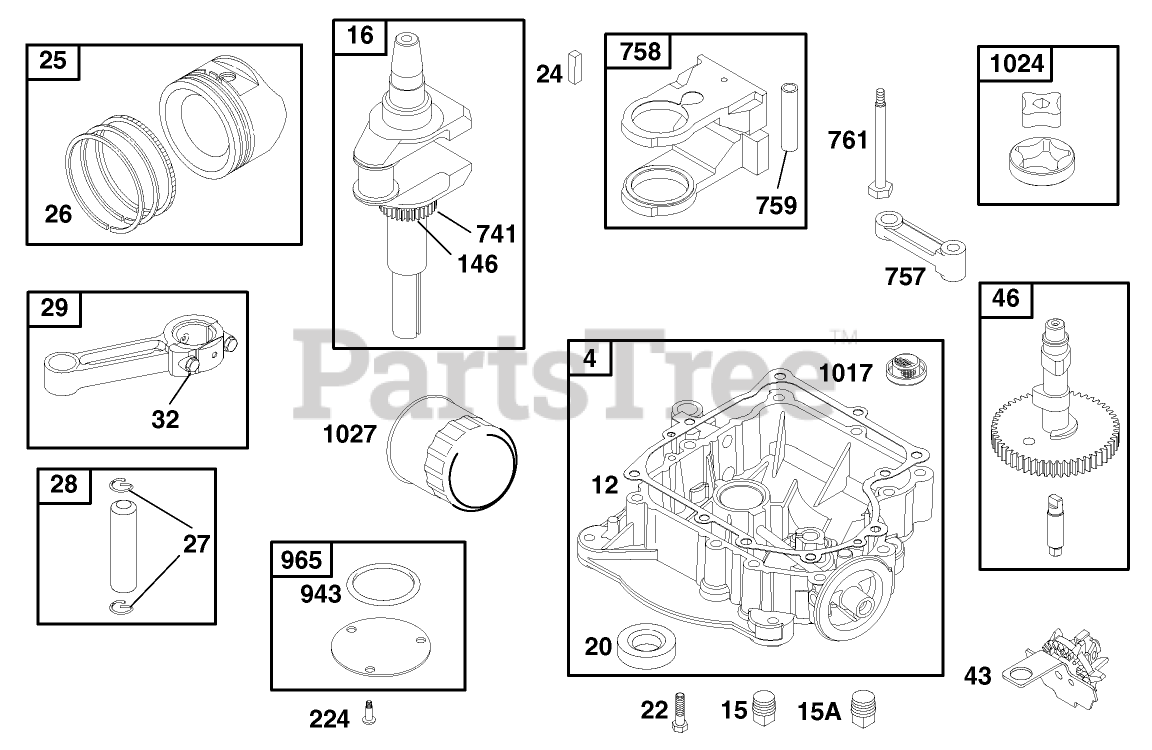

Engine Briggs Stratton Model 28q777-0690-E1 3 Parts Diagram

  • Title

4

Toro 693582

EngineSump

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

15A

Toro 91488

Plug-Oil

$

$

Currently unavailable

16

Toro 690136

Crankshaft

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Part No. 495993.

$

$

Currently unavailable

22

Toro 692125

Screw

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 499284

Piston ASM (Std.)

$

$

Currently unavailable

Toro 499288

Piston ASM (.010" O.S.)

$

$

Currently unavailable

Toro 499292

Piston ASM (.020" O.S.)

$

$

Currently unavailable

Toro 499296

Piston ASM (.030" O.

$

$

Currently unavailable

26

Toro 495854

Ring Set (Std.)

$

$

Currently unavailable

Toro 495852

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 495851

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 495855

Rind Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 263129

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 498319

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 498320

Pin-Piston (.005 O.S.)

$

$

Currently unavailable

29

Toro 692419

Connecting Rod (Std)

$

$

Currently unavailable

32

Toro 692852

Screw

$

$

Currently unavailable

43

Toro 490815

Gear-Governor

$

$

Currently unavailable

46

Toro 693450

Camshaft

$

$

Currently unavailable

146

Toro 94196

Key-Timing

$

$

Currently unavailable

224

Toro 691033

Screw

$

$

Currently unavailable

741

Toro 262932

Gear-Elming

$

$

Currently unavailable

757

Toro 213998

Link-Counteweight

$

$

Currently unavailable

758

Toro 499994

Counterweight

$

$

Currently unavailable

759

Toro 230787

Pin-Counterweight

$

$

Currently unavailable

761

Toro 94593

Screw-HH

$

$

Currently unavailable

943

Toro 280801

O-Ring Seal

$

$

Currently unavailable

965

Toro 499613

Cover-Pump, Oil

$

$

Currently unavailable

1017

Toro 491722

Screen-Oil Pump

$

$

Currently unavailable

1024

Toro 499054

Pump-Oil

$

$

Currently unavailable

1027

Toro 492932

Filter-Oil

$

$

Currently unavailable
