71245 (14-38 HXLE) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) Crankshaft Assembly Engine Briggs and Stratton Model 280H07-0160-E1 Parts Diagram

Lawn Tractor

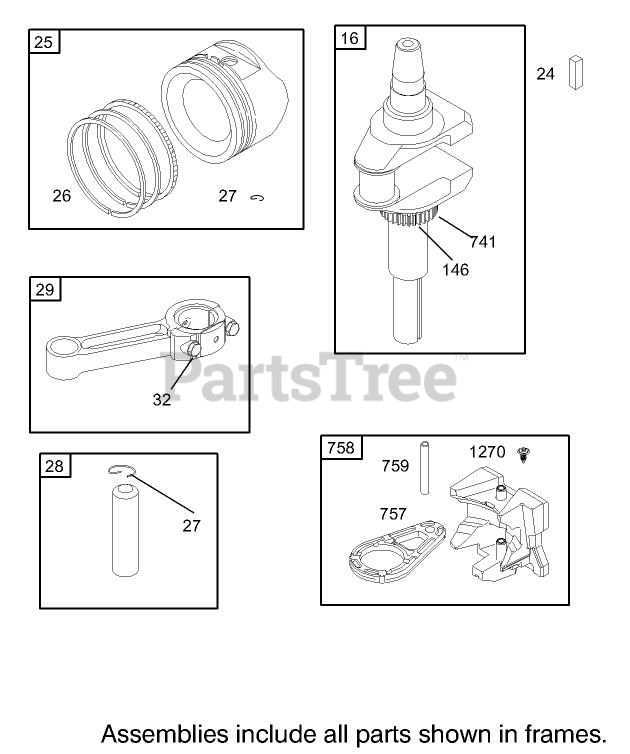

Crankshaft Assembly Engine Briggs and Stratton Model 280H07-0160-E1 Parts Diagram

  • Title

16

Toro 697127

Crankshaft

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 698371

Piston ASM (Standard)

$

$

Currently unavailable

Toro 698372

Piston Assembly(.010" Oversize)

$

$

Currently unavailable

Toro 698373

Piston ASM (.020in Oversize)

$

$

Currently unavailable

Toro 698374

Piston Assembly(.030" Oversize)

$

$

Currently unavailable

26

Toro 698375

Ring Set (Standard)

$

$

Currently unavailable

Toro 698376

Ring Set(.010" Oversize)

$

$

Currently unavailable

Toro 698377

Ring Set (.020in Oversize)

$

$

Currently unavailable

Toro 698378

Ring Set(.030" Oversize)

$

$

Currently unavailable

27

Toro 698469

Lock-Pin, Piston

$

$

Currently unavailable

28

Toro 697099

Pin-Piston (Std)

$

$

Currently unavailable

29

Toro 697126

Rod?Connecting (Standard)

$

$

Currently unavailable

Toro 697264

Rod-Connecting (.020in Undersize)

$

$

Currently unavailable

32

Toro 692852

Screw

$

$

Currently unavailable

146

Toro 691639

Key-Timing

$

$

Currently unavailable

741

Toro 697128

Gear-Timing

$

$

Currently unavailable

757

Toro 697607

Link-Counterweight

$

$

Currently unavailable

758

Toro 697134

Counterweight

$

$

Currently unavailable

759

Toro 397392

Pin-Counterweight

$

$

Currently unavailable

1270

Toro 697156

Plug-Counterweight, AVS

$

$

Currently unavailable
