71252 (XL 380 H) - Toro Lawn Tractor (SN: 310000001 - 310002000) (2010) Main Housing and Bearing Assembly Transaxle No. 104-1760 Parts Diagram

Lawn Tractor

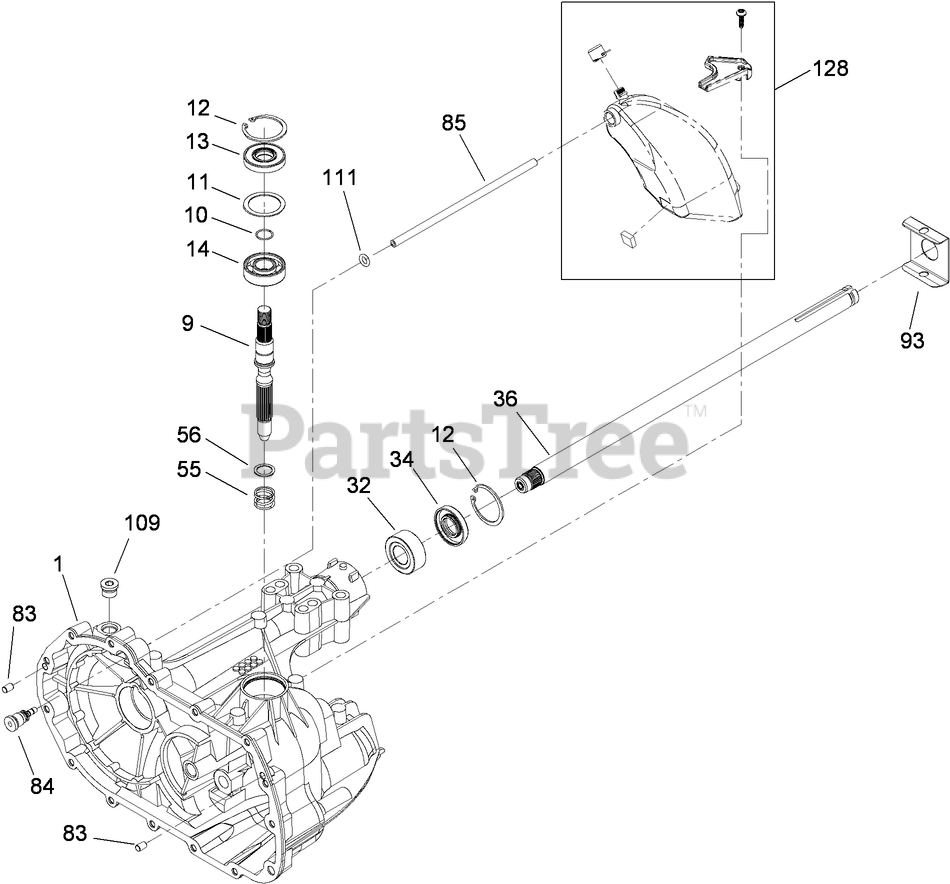

Main Housing and Bearing Assembly Transaxle No. 104-1760 Parts Diagram

  • Title

1

Toro 104-5301

MAIN HOUSING ASM

$

$

Not available

9

Toro 104-5306

SHAFT-INPUT

$411.99

$

Usually ships in 3-6 days

0

10

Toro 104-5307

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

11

Toro 104-5308

SPACER

$9.49

$

In Stock, only 2 left!

0

12

Toro 104-5309

RING-RETAINING

$13.99

$

In Stock, only 3 left!

0

13

Toro 104-5310

SEAL-LIP

$42.99

$

In Stock, only 2 left!

0

14

Toro 104-5311

BEARING-BALL

$49.99

$

In Stock, only 4 left!

0

32

Toro 104-5321

BEARING-SLEEVE, OUTBOARD

$45.99

$

Usually ships in 3-6 days

0

34

Toro 104-5322

SEAL-LIP

$43.99

$

Usually ships in 3-6 days

0

36

Toro 104-5324

SHAFT-AXLE, LH

$

$

Not available

55

Toro 94-1936

SPRING-BLOCK

$9.49

$

Usually ships in 3-6 days

0

56

Toro 94-1937

WASHER-THRUST

$6.99

$

Usually ships in 3-6 days

0

83

Toro 104-2170

PIN

$9.49

$

Usually ships in 3-6 days

0

84

Toro 104-5349

FITTING-SAE

$76.99

$

Usually ships in 3-6 days

0

85

Toro 104-5350

HOSE-EXPANSION, TANK

$

$

Not available

93

Toro 104-5353

CLIP-SPRING

$

$

Not available

109

Toro 104-2189

PLUG-THREAD, STRAIGHT

$28.99

$

In Stock, only 2 left!

0

111

Toro 104-5361

O-RING

$9.49

$

Usually ships in 3-6 days

0

128

Toro 104-5369

EXPANSION TANK KIT

$

$

Not available
