71254 (XLS 380) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

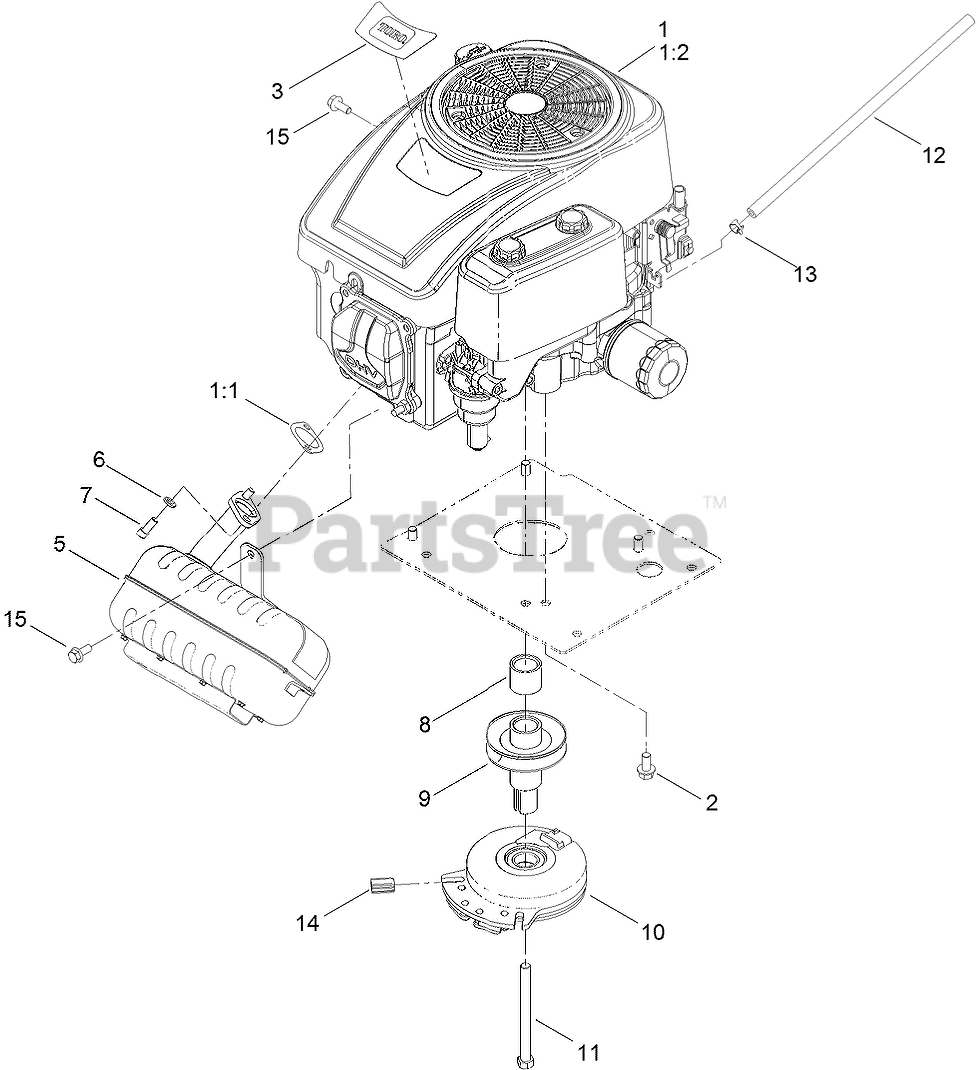

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, Qty 18

0

1:2

Toro 120-4318

ENGINE-LC1P92F-1
(Superseded to 120-4324)

$1359.99

$

Usually ships in 3-6 days

0

2

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 18

0

3

Toro 119-8245

DECAL-ENGINE

$12.99

$

Usually ships in 3-6 days

0

5

Toro 117-9843

MUFFLER

$200.99

$

Usually ships in 3-6 days

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 20+

0

8

Toro 119-8239

SPACER

$17.99

$

Usually ships in 3-6 days

0

9

Toro 117-9846

PULLEY-ENGINE

$75.99

$

Usually ships in 3-6 days

0

10

Toro 117-7468

CLUTCH-ELECTRIC

$534.99

$

In Stock, only 1 left!

0

11

Toro 3212-19

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

12

Toro 110-4895

HOSE-FUEL

$16.99

$

Usually ships in 3-6 days

0

13

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

14

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, only 3 left!

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0
