71254 (XLS 380) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) DEFLECTOR AND HANGER ASSEMBLY Parts Diagram

Lawn Tractor

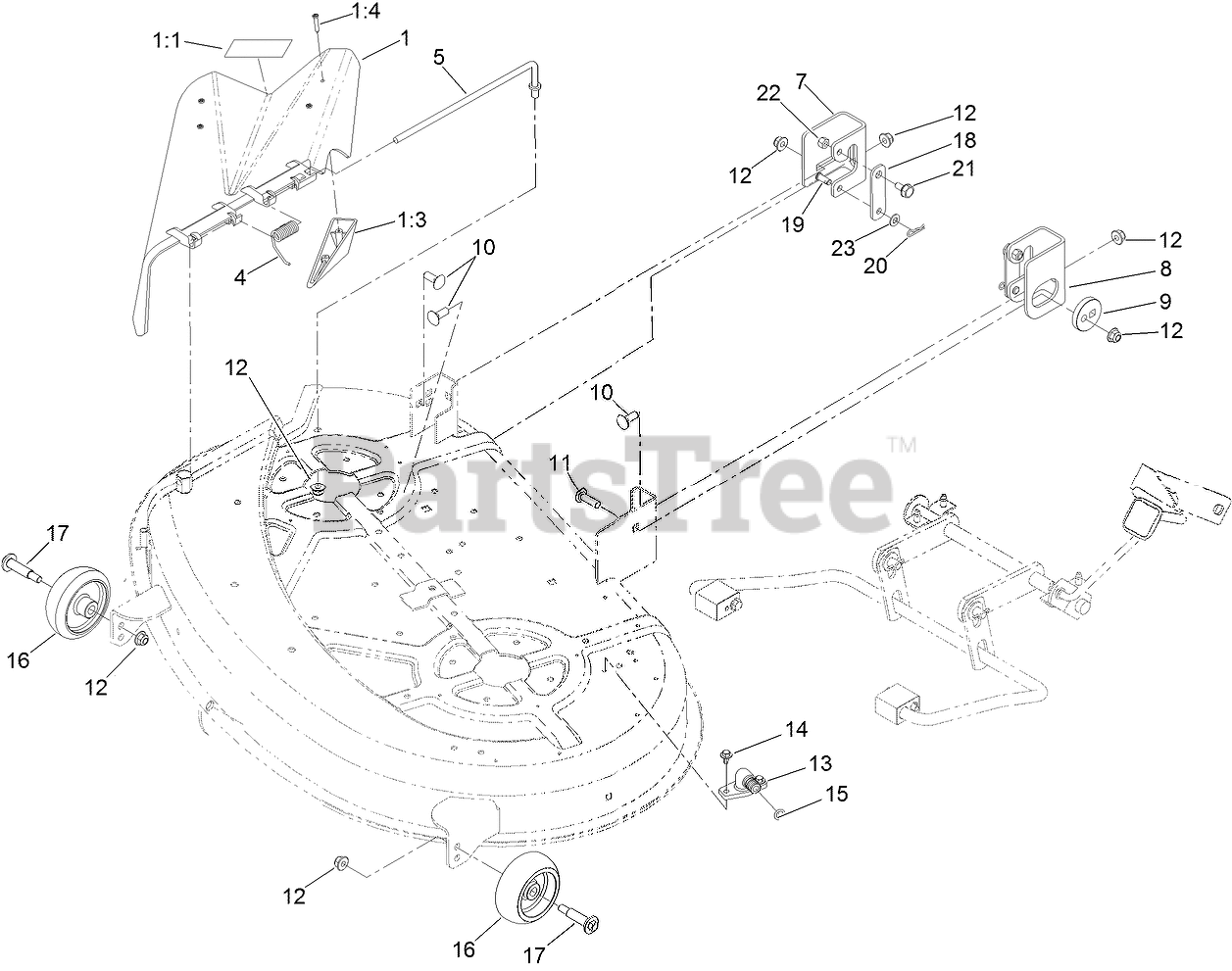

DEFLECTOR AND HANGER ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7695

DEFLECTOR ASM

$82.99

$

In Stock, only 1 left!

0

1:1

Toro 93-7317

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-7696

KICKER

$14.99

$

In Stock, Qty 5

0

1:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

4

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 18

0

5

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

7

Toro 121-4017

BRACKET-HANGER, RH

$33.99

$

Usually ships in 3-6 days

0

8

Toro 121-4018

BRACKET-HANGER, LH

$33.99

$

Usually ships in 3-6 days

0

9

Toro 112-3980

ECCENTRIC

$7.99

$

In Stock, only 4 left!

0

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 13

0

14

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

15

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

16

Toro 701756

WHEEL-GAGE

$7.99

$

In Stock, Qty 20+

0

17

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, Qty 20+

0

18

Toro 121-3988

BRACKET-DECK SUPPORT

$4.99

$

Usually ships in 3-6 days

0

19

Toro 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 15

0

20

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

21

Toro 37-8771

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
