71255 (XLS 420 T) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

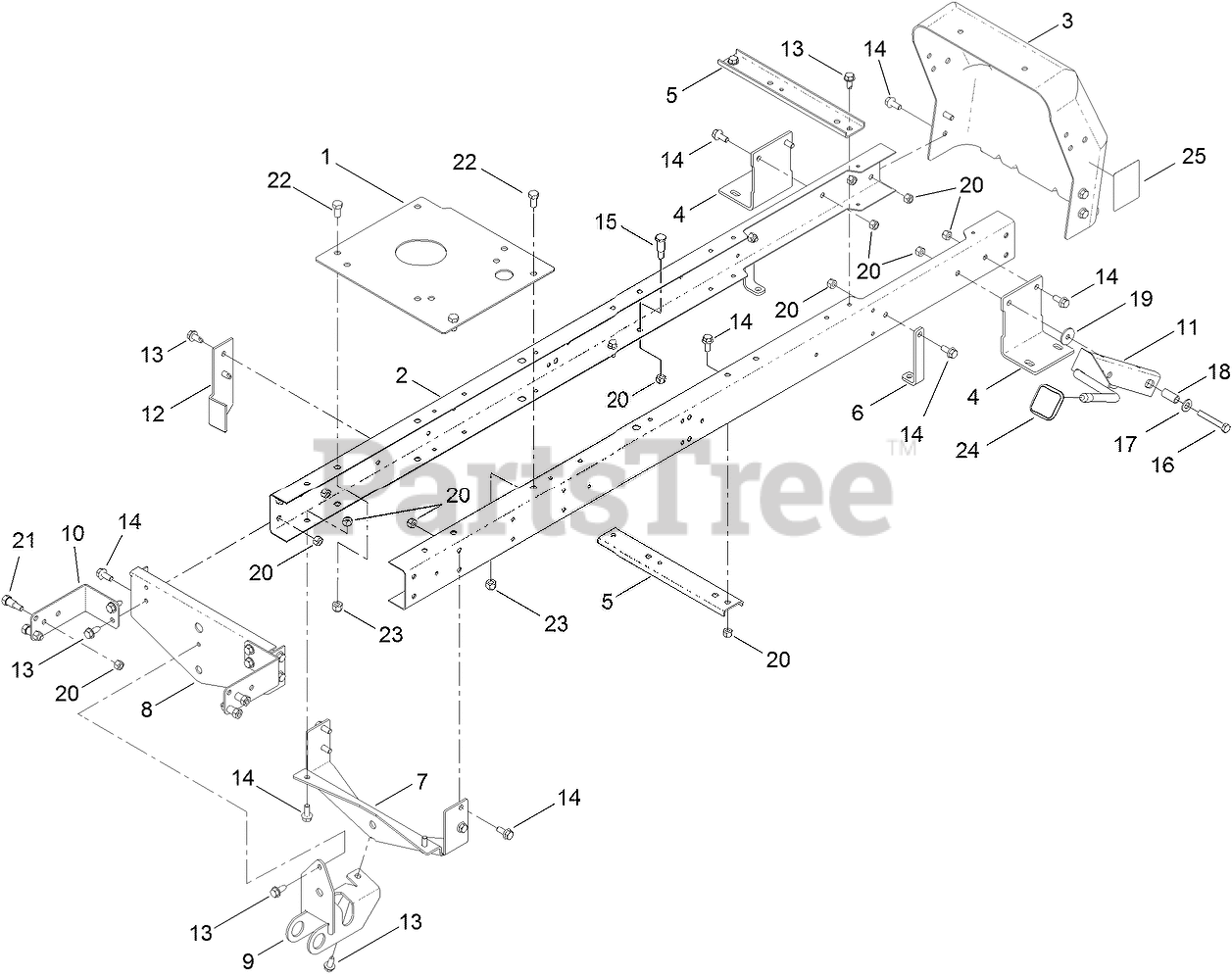

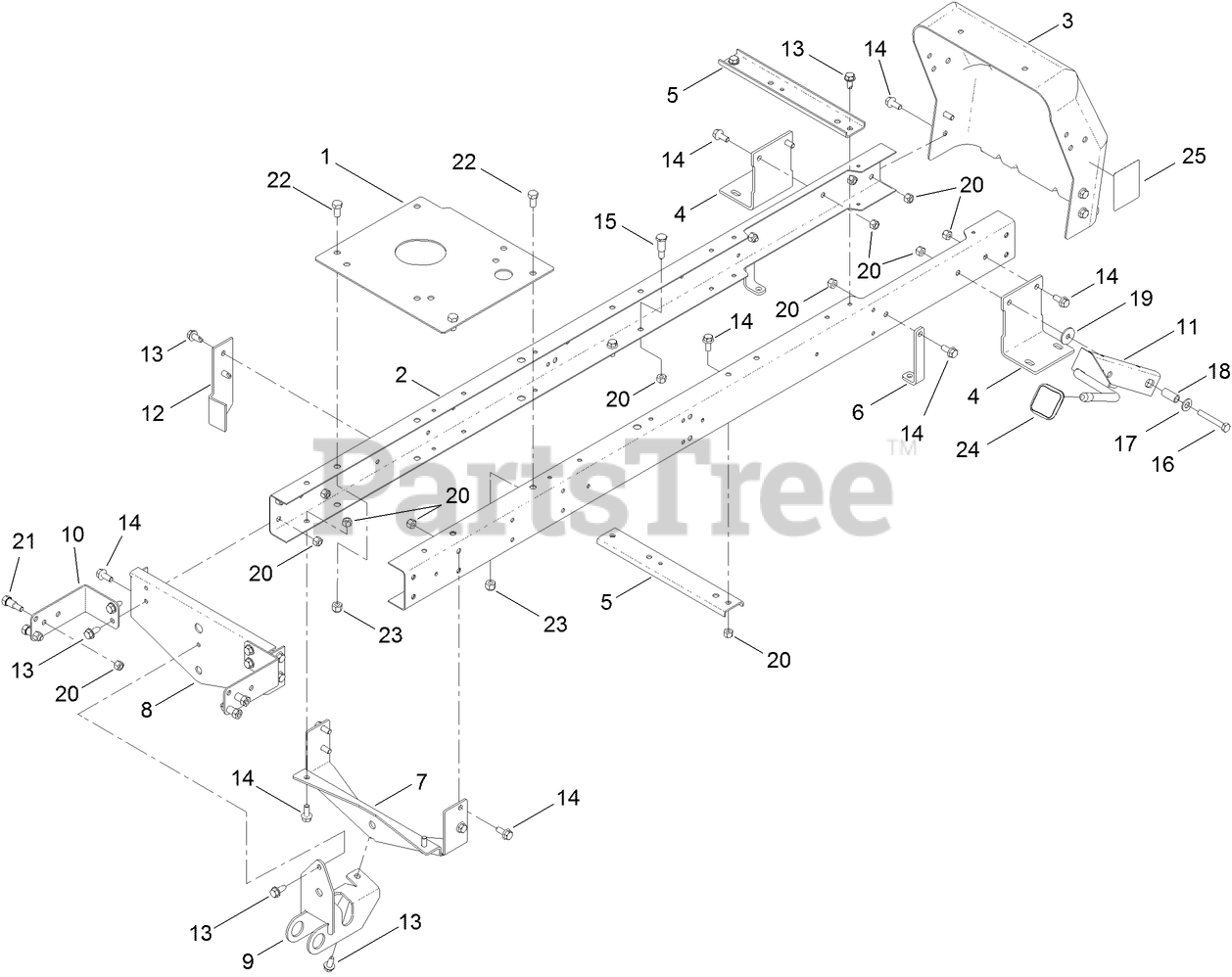

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 119-8206-03

PLATE-MOUNTING, ENGINE

$41.99

$

Usually ships in 3-6 days

0

2

Toro 119-1285-03

RAIL-FRAME
(Superseded to 121-3959-03)

$143.99

$

Usually ships in 3-6 days

0

3

Toro 99-2957-03

SUPPORT-SEAT/REAR HITCH

$157.99

$

Usually ships in 3-6 days

0

4

Toro 119-1279-03

AXLE-BRACKET

$36.99

$

Usually ships in 3-6 days

0

5

Toro 119-8216-03

BRACE-IDLER

$21.99

$

Usually ships in 3-6 days

0

6

Toro 119-1280-03

STRAP-TORQUE

$18.99

$

Usually ships in 3-6 days

0

7

Toro 119-1291-03

SUPPORT-AXLE, FRONT REAR

$83.99

$

Usually ships in 3-6 days

0

8

Toro 119-1290-03

SUPPORT-AXLE, FRONT

$61.99

$

Usually ships in 3-6 days

0

9

Toro 119-8200-03

BRACKET-PIVOT, DECK

$

$

Not available

10

Toro 117-7759-03

BRACKET-HINGE
(Superseded to 120-8799)

$155.99

$

Usually ships in 3-6 days

0

11

Toro 120-1134-03

LEVER-HOC

$42.99

$

Usually ships in 3-6 days

0

12

Toro 117-7788-03

STOP-CLUTCH

$27.99

$

Usually ships in 3-6 days

0

13

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

14

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

15

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

16

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 65-7210

SPACER

$3.99

$

In Stock, only 1 left!

0

19

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 9

0

22

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 94-5565

KNOB-SHIFT

$14.99

$

In Stock, only 1 left!

0

25

Toro 100-7449

DECAL-VALVE, DUMP

$25.99

$

Usually ships in 3-6 days

0
