71255 (XLS 420 T) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) HOOD AND GRILL ASSEMBLY Parts Diagram

Lawn Tractor

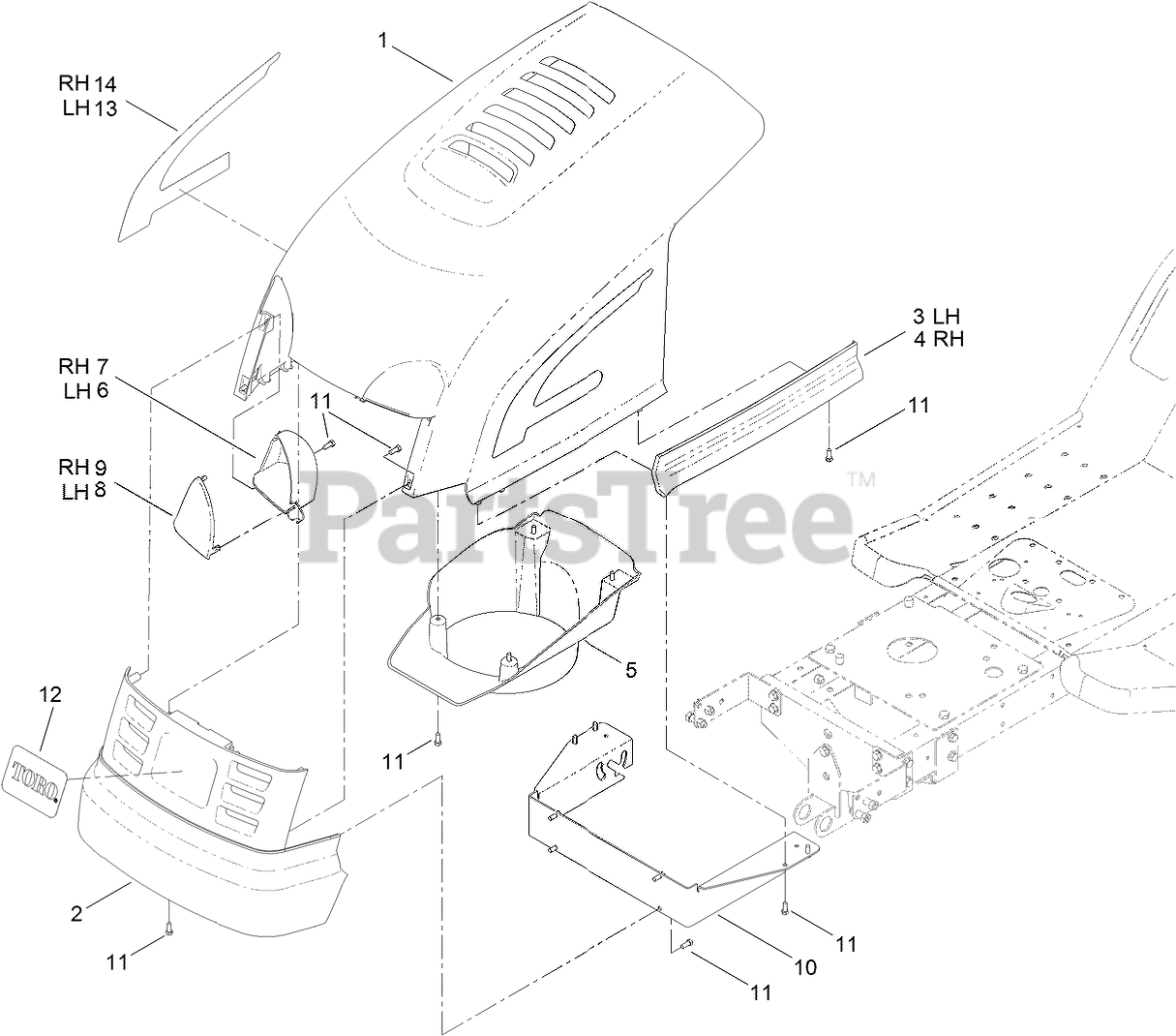

HOOD AND GRILL ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3075

HOOD
(Superseded to 121-4011)

$541.99

$

Usually ships in 3-6 days

0

2

Toro 119-3074

GRILL

$88.99

$

Usually ships in 3-6 days

0

3

Toro 119-3083

TRIM-HOOD, LH

$17.99

$

Usually ships in 3-6 days

0

4

Toro 119-3084

TRIM-HOOD, RH

$17.99

$

Usually ships in 3-6 days

0

5

Toro 119-8249

DUCT-AIR, HOOD

$30.99

$

Usually ships in 3-6 days

0

6

Toro 119-3076

REFLECTOR-LH

$74.99

$

Usually ships in 3-6 days

0

7

Toro 119-3077

REFLECTOR-RH

$74.99

$

Usually ships in 3-6 days

0

8

Toro 119-3078

LENS-LH
(Superseded to 121-4008)

$6.99

$

Usually ships in 3-6 days

0

9

Toro 119-3079

LENS-RH
(Superseded to 121-4009)

$6.99

$

Usually ships in 3-6 days

0

10

Toro 117-7787-03

BRACKET-PIVOT, HOOD
(Superseded to 120-8799)

$155.99

$

Usually ships in 3-6 days

0

11

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

12

Toro 120-1141

DECAL

$4.99

$

Usually ships in 3-6 days

0

13

Toro 120-1125

DECAL-HOOD, LEFT

$30.99

$

Usually ships in 3-6 days

0

14

Toro 120-1126

DECAL-HOOD, RIGHT

$30.99

$

Usually ships in 3-6 days

0
