71282 (17-44 HXLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) Engine Briggs Stratton Model 312777-0128-E1 Parts Diagram

Lawn Tractor

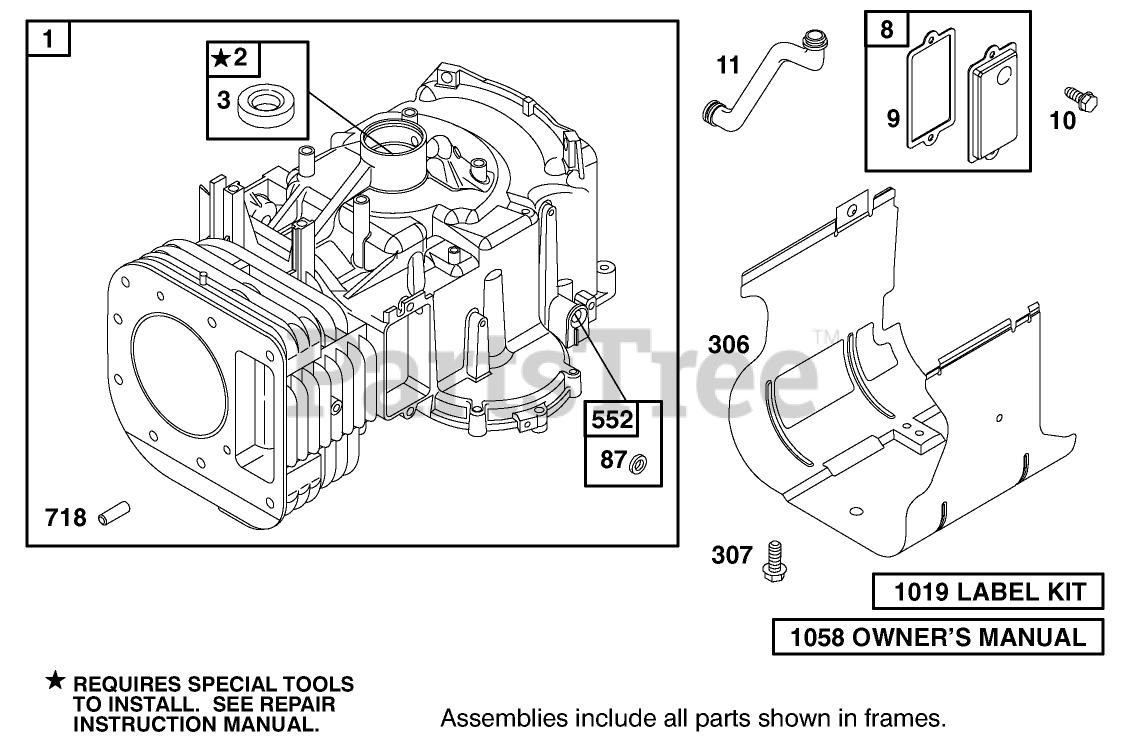

Engine Briggs Stratton Model 312777-0128-E1 Parts Diagram

  • Title

1

Toro 690156

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

8

Toro 495735

Breather ASM

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

10

Toro 691666

Screw-Hex.

$

$

Currently unavailable

11

Toro 281246

Tube-Breather

$

$

Currently unavailable

87

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

307

Toro 94930

Screw-Hex

$

$

Currently unavailable

552

Toro 491986

Bushing-Crank, Governor

$

$

Currently unavailable

718

Toro 230192

Pin-Dowel

$

$

Not available

1019

Toro 690180

Kit-Label

$

$

Currently unavailable

1058

Toro 273683

Owner-s Manual

$

$

Currently unavailable
