71301 (12.5-32 XLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) Carburetor Assembly Engine Briggs And Stratton Model 288707-1142-E1 2 Parts Diagram

Lawn Tractor

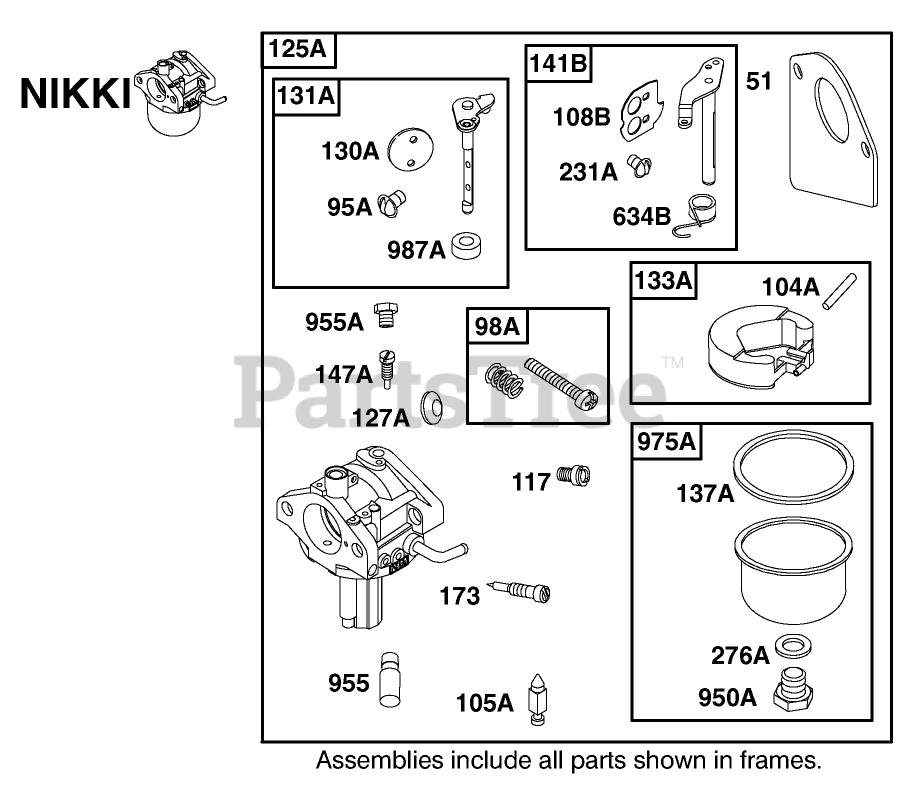

Carburetor Assembly Engine Briggs And Stratton Model 288707-1142-E1 2 Parts Diagram

  • Title

51

Toro 692284

Intake Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51

Toro 692284

Intake Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

95A

Toro 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

Usually ships in 3-6 days

0

98A

Toro 694907

Idle Speed Kit

$

$

Currently unavailable

104A

Toro 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$10.99

$

Usually ships in 3-6 days

0

105A

Toro 694922

Float Needle Valve

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

108B

Toro 694923

Choke Valve

$

$

Currently unavailable

117

Toro 690880

Main Jet (Standard)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

Toro 694925

Main Jet (High Altitude)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

125A

Toro 694941

Carburetor

$

$

Currently unavailable

127A

Toro 694916

Welch Plug

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

130A

Toro 694917

Throttle Valve

$

$

Currently unavailable

131A

Toro 694909

Throttle Shaft Kit

$

$

Currently unavailable

133A

Toro 694914

Carburetor Float ASM

$41.99

$

Usually ships in 3-6 days

0

137A

Toro 1

Label-Emissions

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

137A

Toro 1

Label-Emissions

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

141B

Toro 694913

Choke Shaft

$

$

Currently unavailable

147A

Toro 694927

Pilot Jet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

173

Toro 694926

Idle Mixture Valve

$

$

Currently unavailable

231A

Toro 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

Usually ships in 3-6 days

0

276A

Toro 1

Label-Emissions

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276A

Toro 1

Label-Emissions

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

634B

Toro 694912

Spring/Seal Assembly

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

950A

Toro 694919

Float Bowl Screw

$

$

Currently unavailable

955

Toro 694924

Carburetor Plug

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

955A

Toro 694921

Carburetor Plug

$

$

Currently unavailable

975A

Toro 694908

Float Bowl

$

$

Currently unavailable
