71301 (12.5-32 XLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) Carburetor Overhaul Kit Assembly Engine Briggs And Stratton Model 288707-1142-E1 Parts Diagram

Lawn Tractor

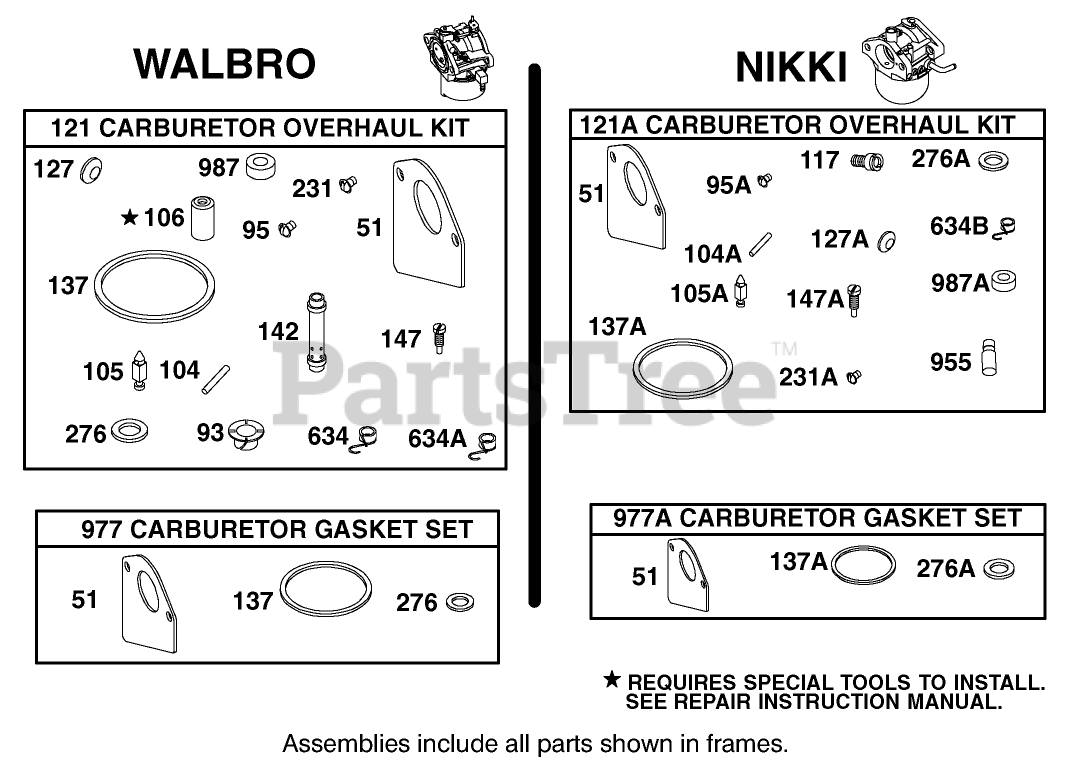

Carburetor Overhaul Kit Assembly Engine Briggs And Stratton Model 288707-1142-E1 Parts Diagram

  • Title

51

Toro 692284

Intake Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

51

Toro 692284

Intake Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

93

Toro 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

95

Toro 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

95A

Toro 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

104

Toro 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

104A

Toro 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

105A

Toro 694922

Float Needle Valve

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

106

Toro 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

117

Toro 690880

Main Jet (Standard)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

Toro 694925

Main Jet (High Altitude)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

121

Toro 499220

Carburetor Kit

$

$

Currently unavailable

121A

Toro 694930

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Toro 695005

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

127A

Toro 694916

Welch Plug

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

137A

Toro 694920

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

137A

Toro 694920

Float Bowl Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

142

Toro 691434

Carburetor Nozzle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

147

Toro 497472

Jet-Pilot

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

147A

Toro 694927

Pilot Jet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

231

Toro 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

231A

Toro 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

276A

Toro 690997

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

276A

Toro 690997

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

634

Toro 690801

Spring / Seal ASM

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

634A

Toro 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

634B

Toro 694912

Spring/Seal Assembly

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

955

Toro 694924

Carburetor Plug

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

977A

Toro 694931

Carburetor Gasket Set

$

$

Currently unavailable

987

Toro 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

987A

Toro 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable
