71301 (12.5-32 XLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) Crankshaft Assembly Engine Briggs And Stratton Model 288707-1142-E1 Parts Diagram

Lawn Tractor

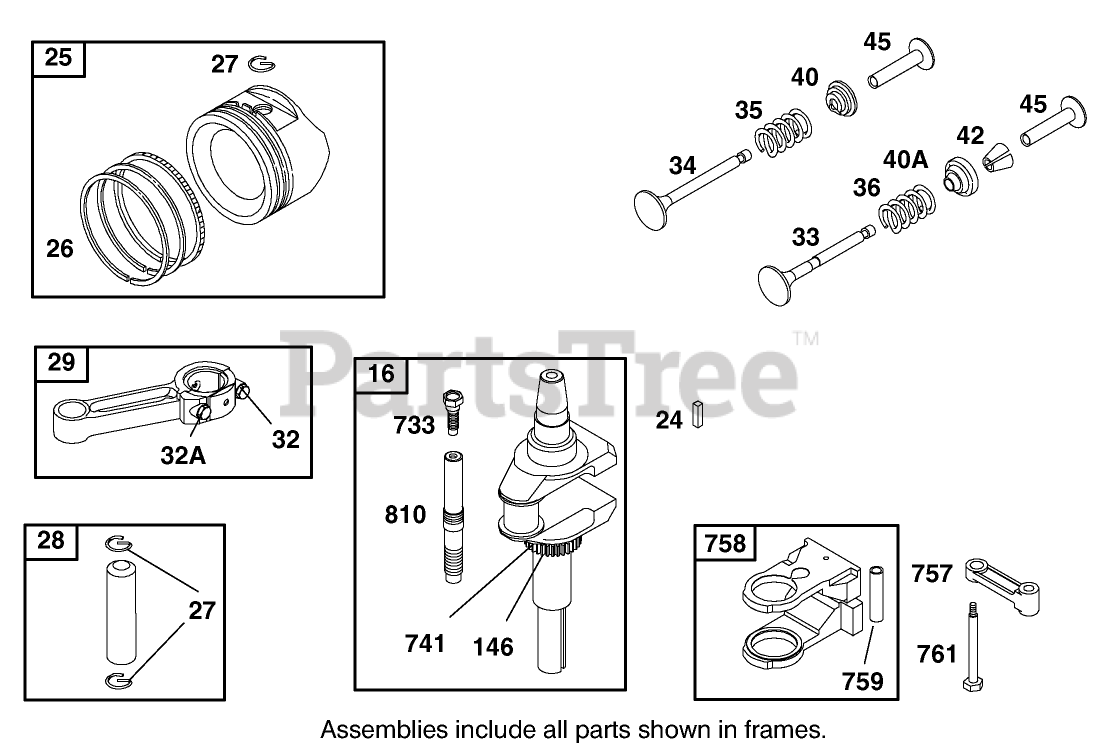

Crankshaft Assembly Engine Briggs And Stratton Model 288707-1142-E1 Parts Diagram

  • Title

16

Toro 693944

Crankshaft

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 499284

Piston ASM (Std.)

$

$

Currently unavailable

Toro 499288

Piston ASM (.010" O.S.)

$

$

Currently unavailable

Toro 499292

Piston ASM (.020" O.S.)

$

$

Currently unavailable

Toro 499296

Piston ASM (.030" O.

$

$

Currently unavailable

26

Toro 499996

Ring Set (Standard)

$

$

Currently unavailable

Toro 392331

Chrome Ring Set (Std.

$

$

Currently unavailable

Toro 391781

Ring Set (.010 O.S.)

$

$

Currently unavailable

Toro 391782

Ring Set (.020 O.S.)

$

$

Currently unavailable

Toro 499999

Ring Set (.030 O.S.)

$

$

Currently unavailable

27

Toro 691299

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 498319

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 498320

Pin-Piston (.005 O.S.)

$

$

Currently unavailable

29

Toro 494504

Rod-Connecting

$

$

Currently unavailable

Toro 495490

Rod-Conn. (.020" U.S.)

$

$

Currently unavailable

32

Toro 690356

Screw (Connecting Rod 7/8")

$

$

Currently unavailable

32A

Toro 690348

Screw (Connecting Rod 5/8")

$

$

Currently unavailable

33

Toro 262246

Valve-Exhaust

$

$

Currently unavailable

34

Toro 262247

Valve-Intake

$

$

Currently unavailable

35

Toro 691605

Valve Spring (Intake)

$

$

Currently unavailable

36

Toro 691597

Spring-Valve (Exhaust)

$

$

Currently unavailable

40

Toro 690656

Valve Retainer

$

$

Currently unavailable

40A

Toro 691939

Retainer-Valve

$

$

Currently unavailable

42

Toro 494553

Keeper-Valve

$

$

Currently unavailable

45

Toro 691811

Keeper-Valve

$

$

Currently unavailable

146

Toro 691639

Key-Timing

$

$

Currently unavailable

733

Toro 691658

Screw-Crankshaft Extension

$

$

Currently unavailable

741

Toro 691284

Gear-Timing

$

$

Currently unavailable

757

Toro 691714

Counteweight Link

$

$

Currently unavailable

758

Toro 692423

Counterweight

$

$

Currently unavailable

759

Toro 691239

Counterweight Pin

$

$

Currently unavailable

761

Toro 691096

Screw (Counterweight)

$

$

Currently unavailable

810

Toro 691779

Crankshaft Extension

$

$

Currently unavailable
