71301 (12.5-32 XLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) GOVERNOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

Lawn Tractor

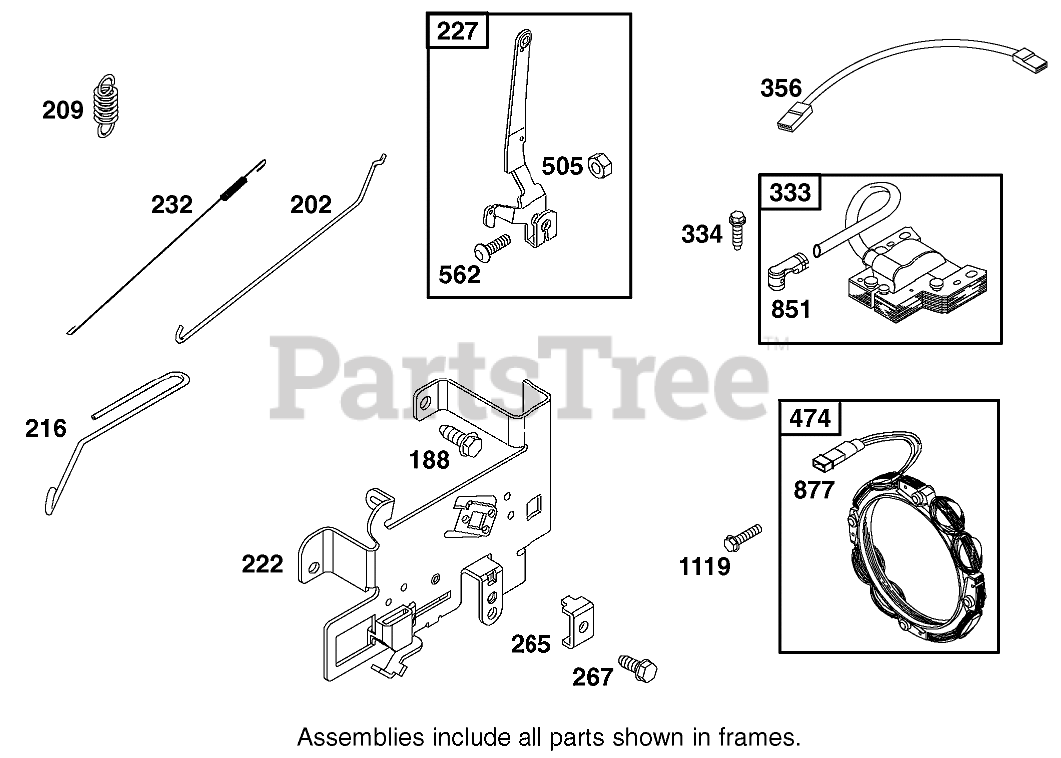

GOVERNOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

  • Title

1119

Briggs & Stratton 691183

Screw

$3.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

Screw

$3.99

$

In Stock, only 2 left!

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

$9.49

$

In Stock, Qty 5

0

209

Briggs & Stratton 690480

Spring-Governor
(Superseded to 792602)

$3.49

$

In Stock, Qty 5

0

216

Briggs & Stratton 691840

Link-Choke

$8.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 691374

Lever-Control, Governor

$26.99

$

In Stock, Qty 6

0

232

Briggs & Stratton 691842

Spring-Link, Governor

$11.99

$

In Stock, Qty 7

0

265

Briggs & Stratton 691024

Clamp-Casing

$3.99

$

In Stock, Qty 11

0

267

Briggs & Stratton 690804

Screw

$

$

Not available

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

$3.49

$

In Stock, Qty 19

0

356

Briggs & Stratton 690799

Stop Wire

$11.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 691063

Alternator
(Superseded to 592831)

$101.99

$

In Stock, only 3 left!

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0
